Data Service Example

(For an overview of examples and their usage, please refer to the README.md file in the parent “examples” directory.)

Source Code Path: example/multicore/data_service

This is an example demonstrating data service communication between HCPU and LCPU in a multi-core system. Its core features include:

  • Platform UART Configuration: For 55x platforms, HCPU uses UART1 (second enumerated UART) as console, LCPU uses UART3 (first enumerated UART); For 58x platforms, HCPU uses UART1 (first enumerated UART) as console, LCPU uses UART4 (third enumerated UART)

  • Service Communication Mechanism: LCPU registers a “test” service, and HCPU subscribes to this service to achieve bidirectional communication

  • Command Interaction Flow: HCPU sends request command to obtain responses with count values, LCPU sends trigger/trigger2 commands to trigger notification messages with count values

This example uses the multi-core communication framework and service registration/subscription mechanism of SiFli-SDK, serving as a basic reference for developing inter-process communication in multi-core heterogeneous systems.

Usage

Supported Development Boards

This example can run on the following development boards:

  • eh-lb551

  • eh-lb555

  • ec-lb583

  • ec-lb587

  • eh-lb561

  • eh-lb563

  • sf32lb56-lcd series

  • sf32lb58-lcd series

Hardware Requirements

The supported development boards mentioned above are required; no additional hardware is needed.

Compilation Method

Navigate to the hcpu directory and execute the following command to compile:

scons --board=<board_name> -j8

The compiled image files are stored in the HCPU’s build_<board_name> directory.

Project Implementation Details

  • Supported development boards:

    • eh-lb551

    • eh-lb555

    • ec-lb583

    • ec-lb587

    • eh-lb561

    • eh-lb563

  • Compilation method: Navigate to the hcpu directory and execute the command scons --board=<board_name> -j8, where board_name is the board model. For example, to compile for the eh-lb561 board, use the complete command scons --board=eh-lb561 -j8 The compiled image files are stored in the HCPU’s build_<board_name> directory. For project usage, refer to the <>

  • Custom message IDs and structures for the test service are defined in src/common/test_service.h

    • test_service_data_rsp_t: Structure for MSG_SERVICE_TEST_DATA_RSP message body

    • test_service_data_ntf_ind_t: Structure for MSG_SERVICE_DATA_NTF_IND message body

    • test_service_data2_ind_t: Structure for MSG_SERVICE_TEST_DATA2_IND message body

  • Code implementation locations

    • HCPU: src/hcpu/main.c

    • LCPU: src/lcpu/main.c

Example Output

Interact with the service through console commands:

  • Send the request command in the HCPU console to send a request message

  • Send the trigger or trigger2 command in the LCPU console to trigger notification messages

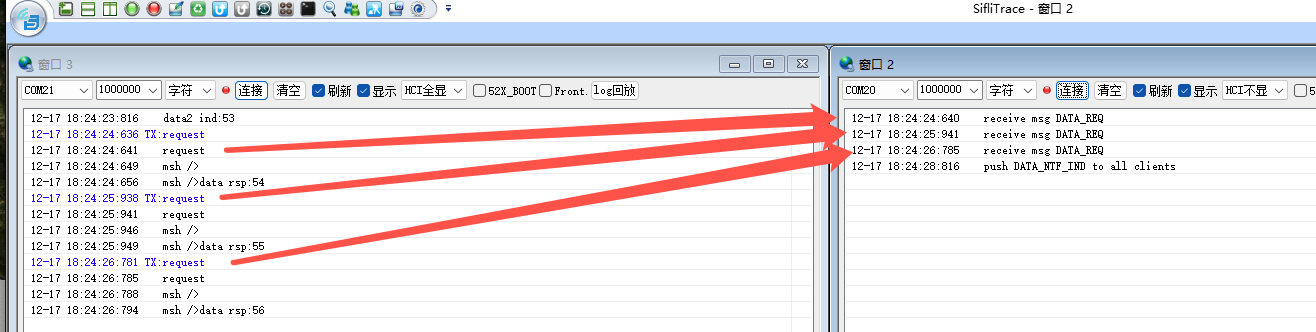

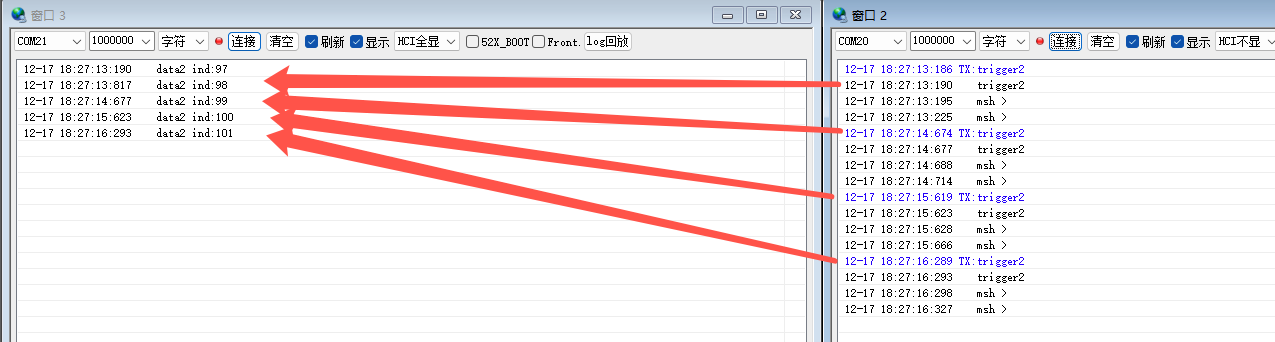

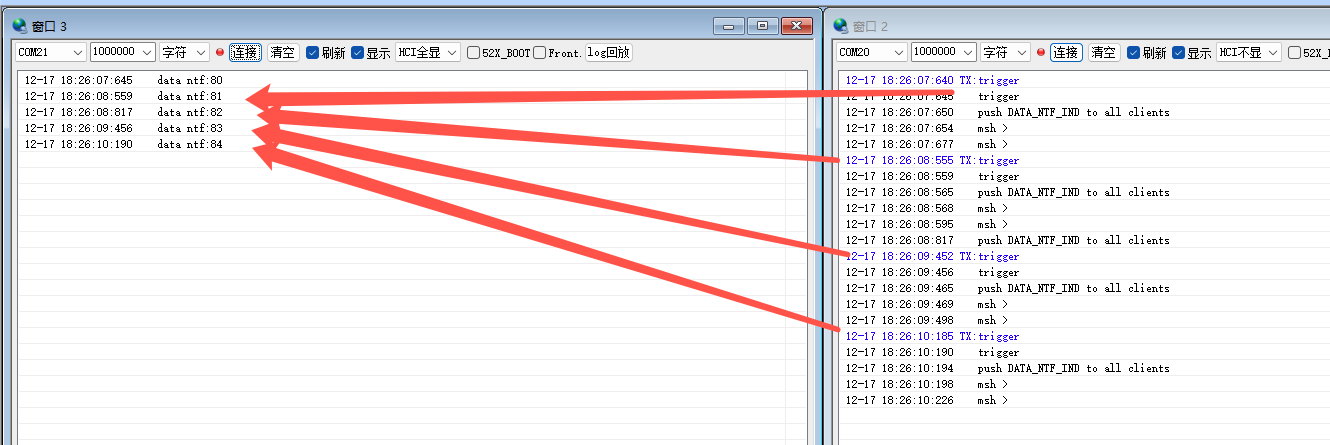

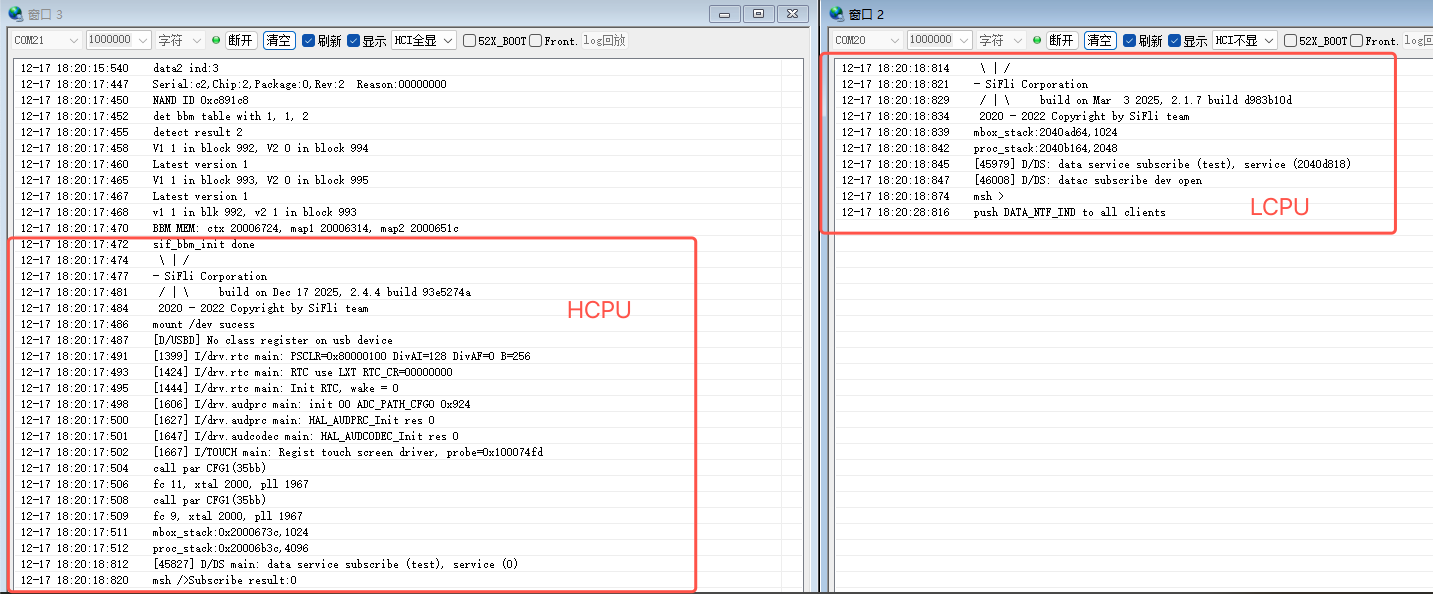

The logs of HCPU and LCPU are as follows: alt text HCPU发送request命令 alt text LCPU发送trigger命令 alt text LCPU发送trigger2命令 alt text

Troubleshooting

No specific troubleshooting information is available. If you encounter issues, please refer to the SiFli-SDK official documentation or submit an issue.
