Routine Compilation and Programming

Compilation

Enter the example\pm\bt\project\hcpu directory and execute

scons --board=sf32lb52-core_n16r16 -j8

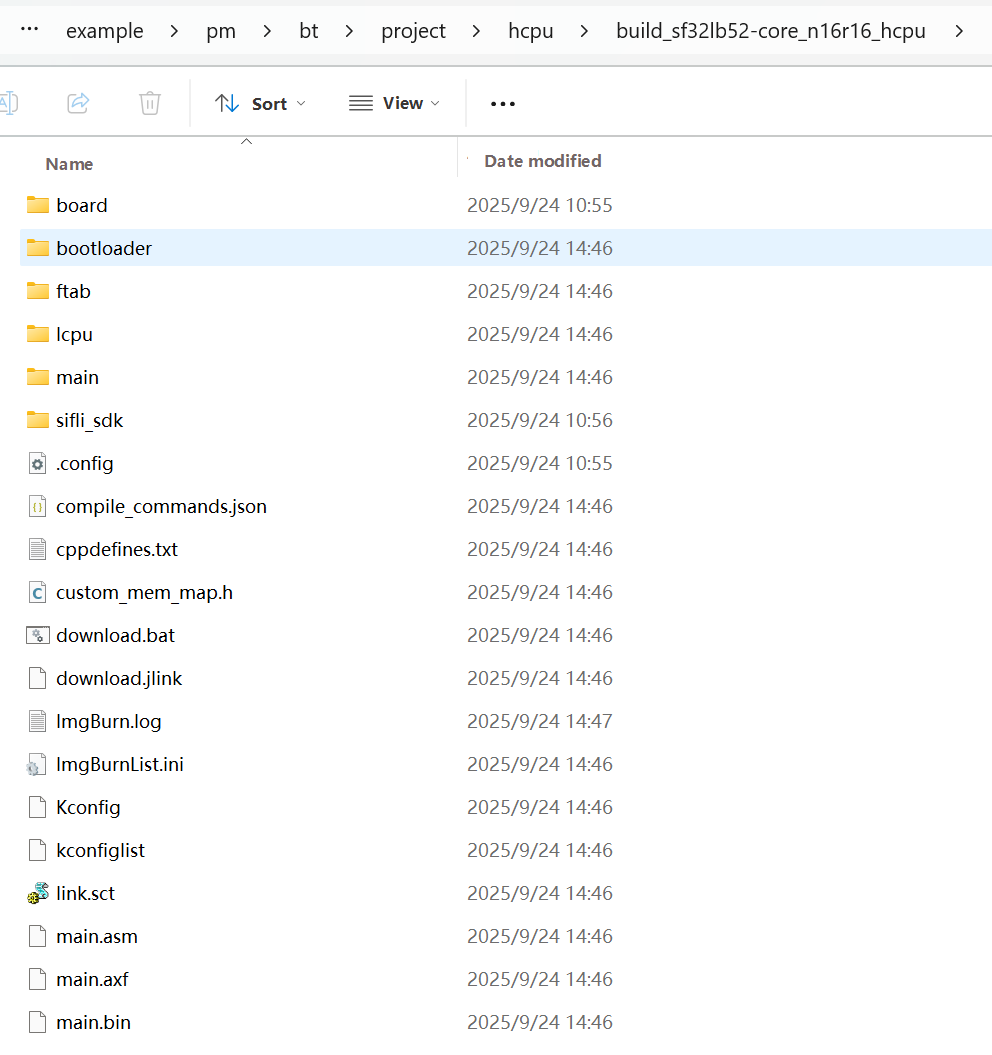

Compile and generate HCPU image file. The compiled image file is saved in the build directory.

Programming Image

Execute in the command line compilation directory

build_sf32lb52-core_n16r16_hcpu\uart_download.bat

to program the image file generated by compilation in the build directory.

Transmit Power Configuration

The project is configured with a default transmit power of 0 dBm. Use the command ble_tx_pwr_save x to adjust transmit power, where x represents the target power value in dBm.Example: To set transmit power to 10 dBm, run ble_tx_pwr_save 10.The device will automatically reboot for the setting to take effect after modification.
