Application Startup Flow

The SF32LB52X is a dual-core chip with multiple built-in and external storage interfaces. MPI1 is the built-in storage interface that supports PSRAM and NOR Flash, while MPI2 and SDMMC are external storage interfaces. MPI2 supports NOR/PSRAM/NAND, and SDMMC can support SD-NAND or SD-eMMC. The application runs on the big core, while the Bluetooth Controller protocol stack runs on the small core. The small core is not accessible to users, and its startup is controlled by the big core’s Bluetooth Host protocol stack, so users do not need to concern themselves with it.

The application startup flow on the big core consists of three stages:

Primary Bootloader: Embedded in the ROM of SF32LB52X, it loads the secondary Bootloader from Flash into RAM and jumps to execute.
Secondary Bootloader: Loads the application from Flash and jumps to execute.
Application: The user program.

Primary Bootloader

The primary Bootloader is embedded in the chip’s ROM, with the interrupt vector table address set to 0. After power-up, the primary Bootloader runs first, determines the location of the Flash partition table (either internal or external Flash, referred to as the boot Flash, which includes NOR, NAND, SD, and eMMC), and based on the secondary Bootloader address indicated in the Flash partition table (which must be located in the boot Flash), it copies the secondary Bootloader code to RAM and jumps to execute.

In the primary Bootloader stage, the big core runs at the default clock frequency after power-up and initializes the IO configuration of the boot Flash.

For the digital series chips, the primary Bootloader will enable VDD33_LDO2 (corresponding to the chip’s VDD33_VOUT1 output). For the letter series chips, the primary Bootloader will set PA21 to a high level.

Warning

If booting from NOR Flash, ensure that the Flash chip is in 3-byte address mode (for chips larger than 16MB, the Flash will normally be configured to 4-byte address mode for full address space access in regular use). Otherwise, the primary Bootloader will not be able to correctly read data from Flash. For the digital series, if the HAL_PMU_Reboot function is called for reboot or HAL_PMU_EnterHibernate for shutdown, VDD33_LDO2 will be automatically turned off, so the Flash chip will return to the default 3-byte address mode on power-up.

Secondary Bootloader

The secondary Bootloader loads the application and jumps to execute based on the chip package type and Flash partition table. The application has the following startup methods, which can either be XIP (Execute In Place, where code is executed directly from NOR Flash) or non-XIP (where code is copied from Flash to RAM before execution). Regardless of the startup method, both the application and secondary Bootloader are stored in the same boot Flash, with the only difference being the execution method:

Built-in NOR Flash (MPI1): The boot Flash is the built-in NOR Flash, and the application runs in XIP mode.
No Built-in NOR Flash:
1. External NOR Flash (MPI2): The boot Flash is the external NOR Flash, and the application runs in XIP mode.
2. Built-in PSRAM (MPI1), External NAND Flash (MPI2): The boot Flash is the external NAND Flash, and the application runs in non-XIP mode, i.e., the code is copied to built-in PSRAM for execution.
3. Built-in PSRAM, External SD Flash (SDIO): Same as option 2.

For package types with built-in PSRAM, the secondary Bootloader will enable LDO1V8 and initialize the PSRAM.

The secondary Bootloader also adjusts clock settings, with the updated configuration shown in the table below:

Module	Clock Source	Frequency (MHz)
DLL1	/	144MHz
DLL2	/	288MHz
Big Core System Clock	DLL1	144MHz
Built-in NOR Flash	System Clock	48MHz
Built-in PSRAM	DLL2	144MHz
External Flash	DLL2	48MHz
External SD	DLL2

The secondary Bootloader does not load PMU calibration parameters, only modifying IO settings related to storage. Cache and MPU are not enabled.

Module	Configuration
PMU	Default
MPU	Disabled
Cache	Disabled

Application

ResetHandler

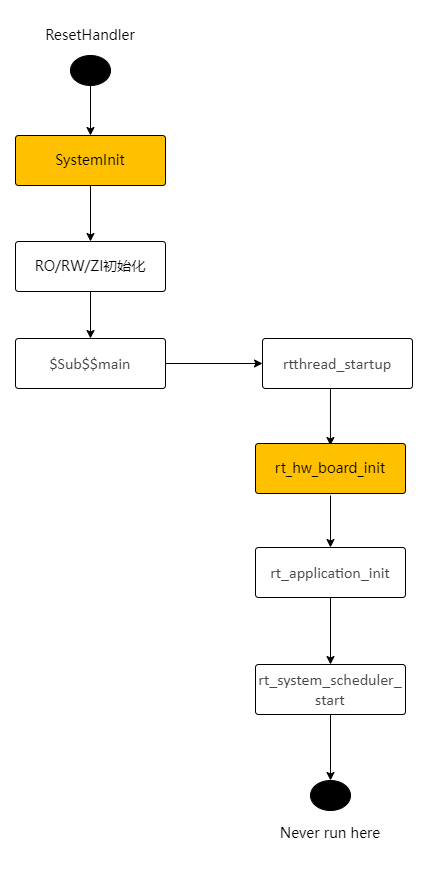

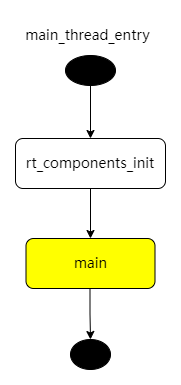

The entry function for the application is ResetHandler (located in drivers\cmsis\sf32lb52x\Templates\arm\startup_bf0_hcpu.S), and its execution flow is shown in the diagram below. The user-defined main function is called by the main thread created by rt_application_init, as shown in main_thread_entry flow.

SystemInit

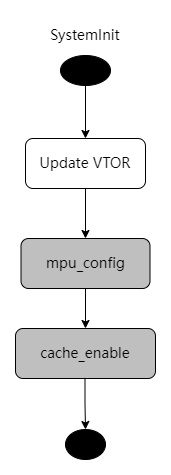

SystemInit (located in drivers/cmsis/sf32lb52x/Templates/system_bf0_ap.c) executes before variable initialization (so variables with initial values or zero-initialized variables should not rely on their default values during this phase). It updates the VTOR register to redirect the interrupt vector table and calls mpu_config and cache_enable to initialize the MPU and enable the Cache. These functions are weak, and applications can override them to replace the default implementation.

rt_hw_board_init

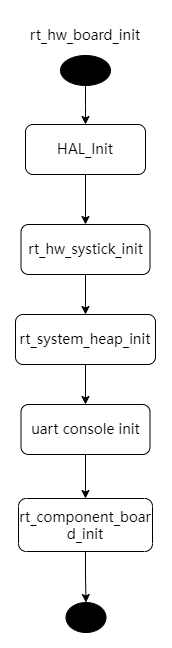

rt_hw_board_init completes low-level hardware initialization, such as clock and IO configuration, PSRAM and NOR Flash initialization, heap, and serial console initialization. rt_components_board_init is an application-defined initialization function, called differently based on the application’s configuration.

HAL_Init

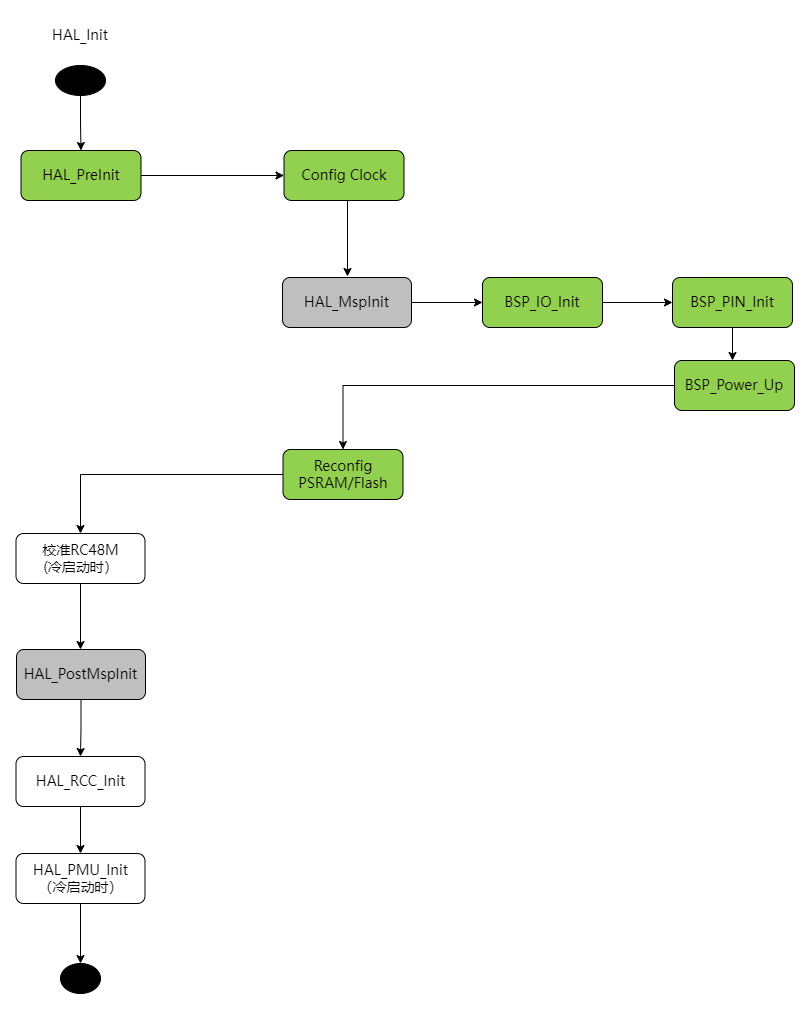

HAL_Init performs the HAL initialization, loads PMU calibration parameters, updates clock and IO settings, and initializes PSRAM and NOR Flash (based on the new clock configuration). The green functions in the diagram represent board-level driver functions, with each board having an independent implementation, including HAL_PreInit, BSP_IO_Init, BSP_PIN_Init, and BSP_Power_Up. The gray functions are virtual functions implemented by the application, allowing customization for different applications on the same board.

The Config Clock modifications include:

Loading PMU calibration values
Starting the GTimer
Switching PMU to RC32K
Switching RTC to XT32K if using external XT32K
Configuring system clock to 240MHz (DLL1)
Configuring DLL2 to 288MHz (same as secondary Bootloader setting)

The loaded PMU calibration values include the following registers:

BUCK_CR1_BG_BUF_VOS_POLAR
BUCK_CR1_BG_BUF_VOS_TRIM
LPSYS_VOUT_VOUT
VRET_CR_TRIM
PERI_LDO_LDO18_VREF_SEL
PERI_LDO_LDO33_LDO2_SET_VOUT
PERI_LDO_LDO33_LDO3_SET_VOUT
AON_BG_BUF_VOS_POLAR
AON_BG_BUF_VOS_TRIM
HXT_CR1_CBANK_SEL

The code that loads these calibration values may run from Flash or PSRAM.

rt_application_init

rt_application_init creates the main thread, with the thread entry function being main_thread_entry. Once thread scheduling is enabled (i.e., after calling rt_system_scheduler_start), the main thread is scheduled and enters the main_thread_entry function. It first calls rt_components_init to initialize components, then calls the main function (application-defined). The user code begins execution from the main function, for example, the main function in the rt_driver example is located in example/rt_driver/src/main.c.

Board-Level Driver Interface

Each board needs to implement the following board-level driver functions, which can be referenced from files in the customer/boards/eh-lb52xu directory:

Function Name	Required	Description
HAL_PreInit	YES	It is recommended to refer to the implementation of similar hardware boards.
BSP_Power_Up	NO	Called after cold boot or wake-up.
BSP_IO_Power_Down	NO	Called before sleep.
BSP_LCD_Reset	NO
BSP_LCD_PowerUp	NO	Called when the screen is powered up.
BSP_LCD_PowerDown	NO	Called when the screen is powered down.
BSP_TP_Reset	NO
BSP_TP_PowerUp	NO	Called when touch is powered up.
BSP_TP_PowerDown	NO	Called when touch is powered down.
HAL_MspInit	NO	Called by HAL_PreInit; virtual function, implemented to call BSP_IO_Init.
HAL_PostMspInit	NO
BSP_IO_Init	NO	By default, called by HAL_MspInit.
BSP_PIN_Init	NO	Called by BSP_IO_Init for IO configuration.

Application Custom Driver Interface

If different applications on the same board require different implementations of HAL_MspInit, the implementation of HAL_MspInit can be placed in the application directory; otherwise, it can be placed in the board directory.

Function Name	Required	Description
HAL_MspInit	NO
HAL_PostMspInit	NO
