Log Usage Example

Source code path: example/system/ulog

Supported Platforms

sf32lb52-lcd series
sf32lb56-lcd series
sf32lb58-lcd series

Building and Flashing

Switch to the project directory and run the scons command to build:

scons --board=sf32lb52-lchspi-ulp -j32

Overview

This example demonstrates how to use the RT-Thread ulog component, with the following main features:

LOG_X API Usage: Demonstrates how to use five log levels: LOG_D, LOG_I, LOG_W, LOG_E, LOG_RAW
ulog_hexdump Usage: Demonstrates the hexadecimal data printing feature
Dynamic Log Filtering: Dynamically adjust log output via ulog_lvl, ulog_tag, ulog_kw commands
Log Level Principles: Helps understand the difference between compile-time level and runtime filtering

Using ulog in Code

Define Log Tag and Level

Before using ulog in code, you must define LOG_TAG and LOG_LVL:

#define LOG_TAG              "example"         // Tag for this module
#define LOG_LVL              LOG_LVL_DBG       // Log output level for this module (DBG=7)
#include <ulog.h>                             // Must be below LOG_TAG and LOG_LVL

LOG_X API Level Description

Log levels are defined in ulog_def.h:

LOG_X Macro	Level Value	Meaning	Color
LOG_E	3	ERROR	Red
LOG_W	4	WARNING	Yellow
LOG_I	6	INFO	Green
LOG_D	7	DEBUG	Blue
LOG_RAW	N/A	Raw output, bypasses level filtering	None

Usage Example

int ulog_test(int argc, char **argv)
{
    static uint8_t buf[128];
    int i = 0;

    for (i = 0; i < sizeof(buf); i++)
    {
        buf[i] = i;
    }

    /* output different level log by LOG_X API */
    LOG_D("LOG_D: RT-Thread is an open source IoT operating system from China.\n");
    LOG_I("LOG_I: RT-Thread is an open source IoT operating system from China.\n");
    LOG_W("LOG_W: RT-Thread is an open source IoT operating system from China.\n");
    LOG_E("LOG_E: RT-Thread is an open source IoT operating system from China.\n");
    LOG_RAW("LOG_RAW: RT-Thread is an open source IoT operating system from China.\n");
    ulog_hexdump("buf_dump_test", 16, buf, sizeof(buf));
    rt_thread_mdelay(10);

    return 0;
}
MSH_CMD_EXPORT(ulog_test, ulog test.);

ulog Configuration Options

Enter sdk.py menuconfig from the build configuration menu, and configure under RT-Thread Components → Utilities → Enable ulog:

Configuration Option	Description
`Enable ulog`	Enable ulog
`The static output log level`	Compile-time static log output level. LOG_X lower than this level will not be compiled into ROM
`Enable ISR log`	Enable ISR log - allows log output in ISR
`Enable assert check`	Enable assert check
`The log's max width`	Maximum length of log
`Enable async output mode`	Enable async output mode
`log format`	Log format configuration (color, time, thread info, etc.)
`Enable console backend`	Enable console as backend
`Enable file backend`	File backend for ulog
`Enable runtime log filter`	Enable runtime log filter (dynamic filtering)
`Enable syslog format log and API`	Enable syslog format log

Log Format Configuration

Configure under RT-Thread Components → Utilities → Enable ulog → log format:

Configuration Option	Description
`Enable float number support`	Support for floating-point numbers
`Enable color log`	Colored log output
`Enable time information`	Time information
`Enable timestamp format for time`	Include timestamp
`Enable level information`	Level information
`Enable tag information`	Tag information
`Enable thread information`	Thread information

Dynamic Filtering Configuration Notes

Difference Between syslog Mode and Normal Mode

[!IMPORTANT] Enable syslog format log and API and Enable runtime log filter are two independent configurations:

When ULOG_USING_SYSLOG is OFF, ULOG_USING_FILTER is OFF by default (needs to be explicitly enabled)

When ULOG_USING_SYSLOG is ON, it automatically selects ULOG_USING_FILTER

syslog ON vs OFF

Feature	syslog ON	syslog OFF
Log format	`<7>01-01 00:00:01 example tshell: LOG_D: ...`	`D/example (0): LOG_D: ...`
Level notation	`<priority>` format	`D/`, `I/`, `W/`, `E/` prefix
`ulog_lvl` value	Need to set 255 to show all	Set 7 to show all
Filtering method	Bitmask (`1 << level`)	Comparison (`level > filter`)

This Example Configuration

Current example proj.conf:

CONFIG_RT_USING_ULOG=y
CONFIG_ULOG_USING_ISR_LOG=y
CONFIG_ULOG_OUTPUT_FLOAT=y
CONFIG_ULOG_TIME_USING_TIMESTAMP=y
CONFIG_ULOG_OUTPUT_THREAD_NAME=y
CONFIG_ULOG_USING_SYSLOG=y

CONFIG_ULOG_USING_SYSLOG=y automatically selects CONFIG_ULOG_USING_FILTER=y.

Example Output

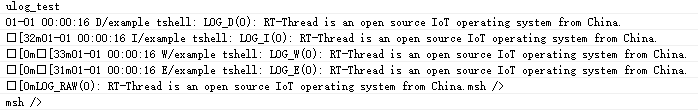

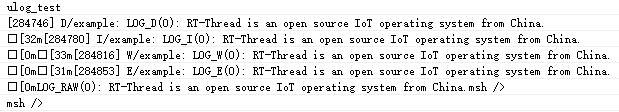

After building and flashing, the serial output is as follows:

01-01 00:00:01 D/example tshell: LOG_D: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 I/example tshell: LOG_I: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.
D/HEX buf_dump_test: 0000-0010: 00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F    ................

Dynamic Filtering Test

Dynamic Filtering Commands Overview

ulog supports three runtime dynamic filtering methods:

Command	Function	Description
`ulog_tag [tag]`	Filter by tag	Empty tag to cancel tag filtering
`ulog_lvl <level>`	Filter by level	Level value see below
`ulog_kw [keyword]`	Filter by keyword	Empty keyword to cancel keyword filtering
`ulog_filter`	View current filter settings	Display all filter conditions

Filtering Rule: The above filter conditions are simultaneously active, and only logs that meet all filter conditions will be output.

Running Test Commands

ulog_test

Global Filter by Tag

Command format: ulog_tag [tag]. Empty tag to cancel tag filtering.

This filtering method filters all logs by tag. Only logs containing tag information are allowed to be output.

Tag is a string representing the source module/component of the log, defined in the code’s LOG_TAG macro.

Example: With logs of 3 tags: wifi.driver, wifi.mgnt, audio.driver, when tag filter is set to wifi, only logs with tags wifi.driver and wifi.mgnt will be output, while logs with tag audio.driver will be filtered out.

Filtering principle: ulog_tag uses prefix matching, setting wifi will match all tags starting with wifi.

# Set tag filter, only show logs with "wifi" tag
ulog_tag wifi

# Cancel tag filter, show logs of all tags
ulog_tag

Global Filter by Keyword

Command format: ulog_kw [keyword]. Empty keyword to cancel keyword filtering.

This filtering method filters all logs by keyword. Only logs containing keyword information are allowed to be output.

# Set keyword filter, only show logs containing "ERROR"
ulog_kw ERROR

# Cancel keyword filter
ulog_kw

View Filter Information

After setting filter parameters, input ulog_filter command to view current filter information:

ulog_filter

Output example:

current filter info:
level: 248
tag: wifi
keyword: ERROR

Level Settings When syslog is Enabled

Current example CONFIG_ULOG_USING_SYSLOG=y is enabled, using bitmask method, ulog_lvl parameter is the mask value:

Command

Mask Value

Binary

Controlled Level

ulog_lvl 128

128

10000000

Controls LEVEL 7 (DEBUG)

ulog_lvl 64

64

01000000

Controls LEVEL 6 (INFO)

ulog_lvl 32

32

00100000

Controls LEVEL 5 (NOTICE)

ulog_lvl 16

16

00010000

Controls LEVEL 4 (WARNING)

ulog_lvl 8

8

00001000

Controls LEVEL 3 (ERROR)

Command	Mask Value	Binary	Controlled Level
`ulog_lvl 128`	128	10000000	Controls LEVEL 7 (DEBUG)
`ulog_lvl 64`	64	01000000	Controls LEVEL 6 (INFO)
`ulog_lvl 32`	32	00100000	Controls LEVEL 5 (NOTICE)
`ulog_lvl 16`	16	00010000	Controls LEVEL 4 (WARNING)
`ulog_lvl 8`	8	00001000	Controls LEVEL 3 (ERROR)

Bit to Level Mapping (defined in syslog.h):

bit0=EMERG(0), bit1=ALERT(1), bit2=CRIT(2), bit3=ERR(3), bit4=WARNING(4), bit5=NOTICE(5), bit6=INFO(6), bit7=DEBUG(7)

Filtering Logic: LOG_MASK(LOG_PRI(level)) & ulog.filter.level. Only when the corresponding bit of the log level is 1 will it be displayed.

LOG_RAW does not go through level filtering and is always output.

Test Steps

View Current Filter Settings

ulog_filter

Set to Show All (syslog mode requires 255)

ulog_lvl 255
ulog_test

Show Only ERROR (8)

ulog_lvl 8
ulog_test

Show Only WARNING and Below (24)

ulog_lvl 24
ulog_test

Show Only INFO and Below (120)

ulog_lvl 120
ulog_test

Show Only DEBUG and Below (248)

ulog_lvl 248
ulog_test

Restore Show All (255)

ulog_lvl 255
ulog_test

Complete Interaction Log

The following is a complete dynamic filtering test process (LOG_RAW is not affected by level control and is always output):

msh />ulog_lvl 255
msh />ulog_test
01-01 00:00:01 D/example tshell: LOG_D: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 I/example tshell: LOG_I: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:00:01 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.
D/HEX buf_dump_test: ...

msh />ulog_lvl 8
msh />ulog_test
01-01 00:00:10 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.

msh />ulog_lvl 24
msh />ulog_test
01-01 00:00:20 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:00:20 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.

msh />ulog_lvl 120
msh />ulog_test
01-01 00:00:30 I/example tshell: LOG_I: RT-Thread is an open source IoT operating system from China.
01-01 00:00:30 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:00:30 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.

msh />ulog_lvl 248
msh />ulog_test
01-01 00:00:40 D/example tshell: LOG_D: RT-Thread is an open source IoT operating system from China.
01-01 00:00:40 I/example tshell: LOG_I: RT-Thread is an open source IoT operating system from China.
01-01 00:00:40 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:00:40 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.
D/HEX buf_dump_test: ...

msh />ulog_lvl 255
msh />ulog_test
01-01 00:01:00 D/example tshell: LOG_D: RT-Thread is an open source IoT operating system from China.
01-01 00:01:00 I/example tshell: LOG_I: RT-Thread is an open source IoT operating system from China.
01-01 00:01:00 W/example tshell: LOG_W: RT-Thread is an open source IoT operating system from China.
01-01 00:01:00 E/example tshell: LOG_E: RT-Thread is an open source IoT operating system from China.
LOG_RAW: RT-Thread is an open source IoT operating system from China.
D/HEX buf_dump_test: ...

hexdump Output Usage

ulog_hexdump is used to output data in hexadecimal format:

uint8_t buf[128];
for (int i = 0; i < sizeof(buf); i++)
{
    buf[i] = i;
}
ulog_hexdump("buf_dump_test", 16, buf, sizeof(buf));

Output example:

D/HEX buf_dump_test: 0000-0010: 00 01 02 03 04 05 06 07  08 09 0A 0B 0C 0D 0E 0F    ................
                         0010-0020: 10 11 12 13 14 15 16 17  18 19 1A 1B 1C 1D 1E 1F    ................

ulog_hexdump uses DEBUG level (level=7), so when the runtime filter level is below 7, hexdump output will not be displayed. Only when set to ulog_lvl 255 (syslog mode) or ulog_lvl 7 (non-syslog mode) can you see the hexdump output.

Using in ISR (Interrupt)

ulog supports log output in interrupt ISR, but it is not enabled by default. When using, enable Enable ISR log in menuconfig. The API usage is the same as in threads.

References

Change Log

Version	Date	Release Notes
0.0.1	1/2025	Initial version
0.0.2	5/2025	Improved dynamic filtering configuration description, corrected syslog mode level settings
