FlashDB Example

Source path: example/storage/flashdb

Supported Platforms

sf32lb52-lcd_n16r8
eh-lb523

Overview

This example demonstrates the configuration and usage of FlashDB, including:

project/nand: KVDB/TSDB configuration and usage on Nand flash (FDB_USING_FILE_MODE).
project/nor: KVDB/TSDB configuration and usage on Nor flash (FDB_USING_FAL_MODE).

Example Usage

Hardware Requirements

Before running this example, you need to prepare:

One development board supported by this example (Supported platforms).

menuconfig Configuration

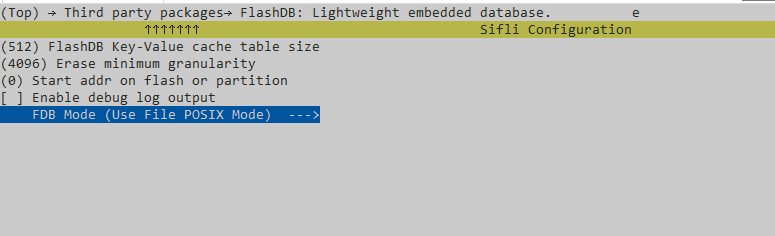

Enable FlashDB:
Tip
- Nand uses FILE MODE, operates through file system, FDB Mode configured as PKG_FDB_USING_FILE_POSIX_MODE.
- Nor uses FAL MODE, operates flash directly, FDB Mode configured as PKG_FDB_USING_FAL_MODE.

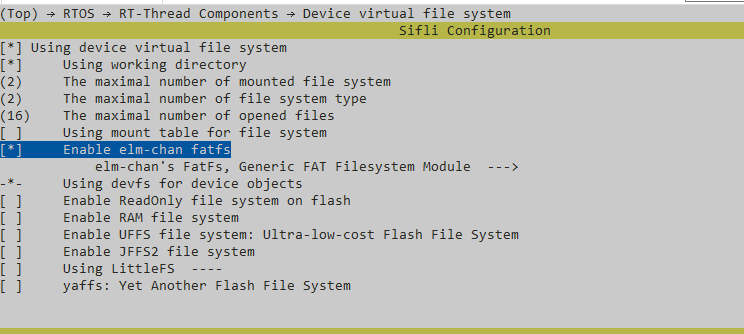

Configure FAT file system (when using FILE MODE, FAL MODE does not require file system configuration)

Tip

Mount root partition in mnt_init.
FAL partition configuration (when using FAL MODE, FILE MODE does not require independent partition configuration)

project/nor/ptab.json:

       {
           "offset": "0x00620000",
           "max_size": "0x00004000",
           "tags": [
               "KVDB_TST_REGION"
           ]
       },
       {
           "offset": "0x00624000",
           "max_size": "0x00004000",
           "tags": [
               "TSDB_TST_REGION"
           ]
       },

project/nor/custom_mem_map.h

#define FAL_PART_TABLE \
{ \
     {FAL_PART_MAGIC_WORD,       "kvdb_tst",      NOR_FLASH2_DEV_NAME,    KVDB_TST_REGION_OFFSET,   KVDB_TST_REGION_SIZE, 0}, \
     {FAL_PART_MAGIC_WORD,       "tsdb_tst",      NOR_FLASH2_DEV_NAME,    TSDB_TST_REGION_OFFSET,   TSDB_TST_REGION_SIZE, 0}, \
     ... ...
}

Compilation and Programming

Switch to the example project/nand directory and run the scons command to execute compilation:

> scons --board=eh-lb525 -j32

Switch to the example project/nand/build_xx directory and run uart_download.bat, select the port as prompted to download:

$ ./uart_download.bat

     Uart Download

please input the serial port num:5

For detailed steps on compilation and downloading, please refer to the relevant introduction in Quick Start.

Tip

project/nor is the corresponding nor solution, compilation and download methods are the same, the difference is the corresponding board.

Expected Results

This example operates FlashDB through FINSH commands:
KVDB:

Purpose	Command	Example
Set kvdb	kvdb set [key] [data type:int\|str] [value]	`kvdb set "kv1" int 100`
Read kvdb	kvdb get [key] [data type:int\|str]	`kvdb get "kv1" int`
Delete kvdb	kvdb del [key]	`kvdb del "kv1"`

Serial port output as follows:

// Set, read integer data
12-23 00:51:23:316 TX:kvdb set "key1" int 100
12-23 00:51:23:353    kvdb set "key1" int 100
12-23 00:51:23:465    set the key1 value to 100
12-23 00:51:23:579    msh />
12-23 00:51:30:771 TX:kvdb get "key1" int
12-23 00:51:30:827    kvdb get "key1" int
12-23 00:51:30:831    [key1] int
12-23 00:51:30:836    get the key1 value is 100
// Set, read string
12-23 00:52:21:753 TX:kvdb set "key2" str "hello"
12-23 00:52:21:810    kvdb set "key2" str "hello"
12-23 00:52:22:003    set key2 value to hello
12-23 00:52:22:115    msh />
12-23 00:52:29:612 TX:kvdb get "key2" str
12-23 00:52:29:667    kvdb get "key2" str
12-23 00:52:29:672    [key2] str
12-23 00:52:29:677    get the key2 value is hello
// Delete kvdb
12-23 00:53:16:528 TX:kvdb del "key1"
12-23 00:53:16:585    kvdb del "key1"
12-23 00:53:16:675    delete the key1 finish
12-23 00:53:16:788    msh />
12-23 00:53:20:062 TX:kvdb get "key1" int
12-23 00:53:20:116    kvdb get "key1" int
12-23 00:53:20:120    [key1] int
12-23 00:53:20:147    get the key1 failed

TSDB:

Purpose	Command	Example
Add tsdb	tsdb append [value]	`tsdb append 1`
Query all tsdb	tsdb query_all	`tsdb query_all`
Query tsdb by time	tsdb query_by_time [from timestamp] [to timestamp]	`tsdb query_by_time 0 946686530`
Clear tsdb	tsdb clear	`tsdb clear`

Serial port output as follows:

// clear tsdb
12-23 00:55:21:376 TX:tsdb clear
12-23 00:55:21:430    tsdb clear
12-23 00:55:23:455    clear tsdb.
// Add tsdb entries
12-23 00:55:56:845 TX:tsdb append 1
12-23 00:55:56:902    tsdb append 1
12-23 00:55:57:198    append tsdb item : value = 1
12-23 00:55:57:244    tsdb count is: 1
12-23 00:55:57:361    msh />
12-23 00:55:59:988 TX:tsdb append 2
12-23 00:56:00:045    tsdb append 2
12-23 00:56:00:134    append tsdb item : value = 2
12-23 00:56:00:162    tsdb count is: 2
12-23 00:56:00:278    msh />
12-23 00:56:01:521 TX:tsdb append 3
12-23 00:56:01:577    tsdb append 3
12-23 00:56:01:666    append tsdb item : value = 3
12-23 00:56:01:693    tsdb count is: 3
// Query all
12-23 00:56:39:698 TX:tsdb query_all
12-23 00:56:39:753    tsdb query_all
12-23 00:56:39:757    query all:
12-23 00:56:39:783    [query_cb] queried a TSL: value: 1 time: 946689062 Sat Jan  1 01:11:02 2000
12-23 00:56:39:788    [query_cb] queried a TSL: value: 2 time: 946689065 Sat Jan  1 01:11:05 2000
12-23 00:56:39:793    [query_cb] queried a TSL: value: 3 time: 946689067 Sat Jan  1 01:11:07 2000
// Query by time
12-23 00:57:04:317 TX:tsdb query_by_time 0 946689065
12-23 00:57:04:371    tsdb query_by_time 0 946689065
12-23 00:57:04:375    query by time:
12-23 00:57:04:380    from time:0 Thu Jan  1 00:00:00 1970
12-23 00:57:04:385    to time:946689065 Sat Jan  1 01:11:05 2000
12-23 00:57:04:391    [query_by_time_cb] queried a TSL: value: 1 time: 946689062 Sat Jan  1 01:11:02 2000
12-23 00:57:04:396    [query_by_time_cb] queried a TSL: value: 2 time: 946689065 Sat Jan  1 01:11:05 2000
12-23 00:57:04:402    query count is: 2

Exception Diagnosis

Reference Documentation

siflisdk\external\FlashDB\README.md
siflisdk\external\FlashDB\README_zh.md
