ELM_RW Example

Overview

This example demonstrates file data read/write operations using ELM, paired with FsrwTool for visual file transfer.

Supported Development Boards

The example can run on the following development boards.

sf32lb52-lcd_n16r8
sf32lb58-lcd_n16r64n4
56_devkit_lcd
em-lb586_nand

Note: Generally, examples run on the chip’s HCPU. “eh-lb563_v2” is equivalent to “eh-lb563_v2_hcpu”. If you want to run the example on LCPU, you can use “eh-lb563_v2_lcpu”. Currently, USB functionality is temporarily only supported on HCPU.

Example Directory Structure

The ELM_RW project contains 1 .c file (main.c). The tree structure below shows other files in the project directory.

|--README.md
|--src
|    |--main.c
|    |--Sconscript
|--project
        |--Kconfig
        |--Kconfig.proj
        |--proj.conf
        |--rtconfig.py
        |--SConscript
        |--SConstruct

Using the Example

Hardware Requirements

The prerequisite for running the example is having a development board that supports this example.
A USB data cable capable of data transmission.

menuconfig Configuration

//Command execution
 menuconfig --board=sf32lb52-lcd_n16r8

menuconfig Configuration 1

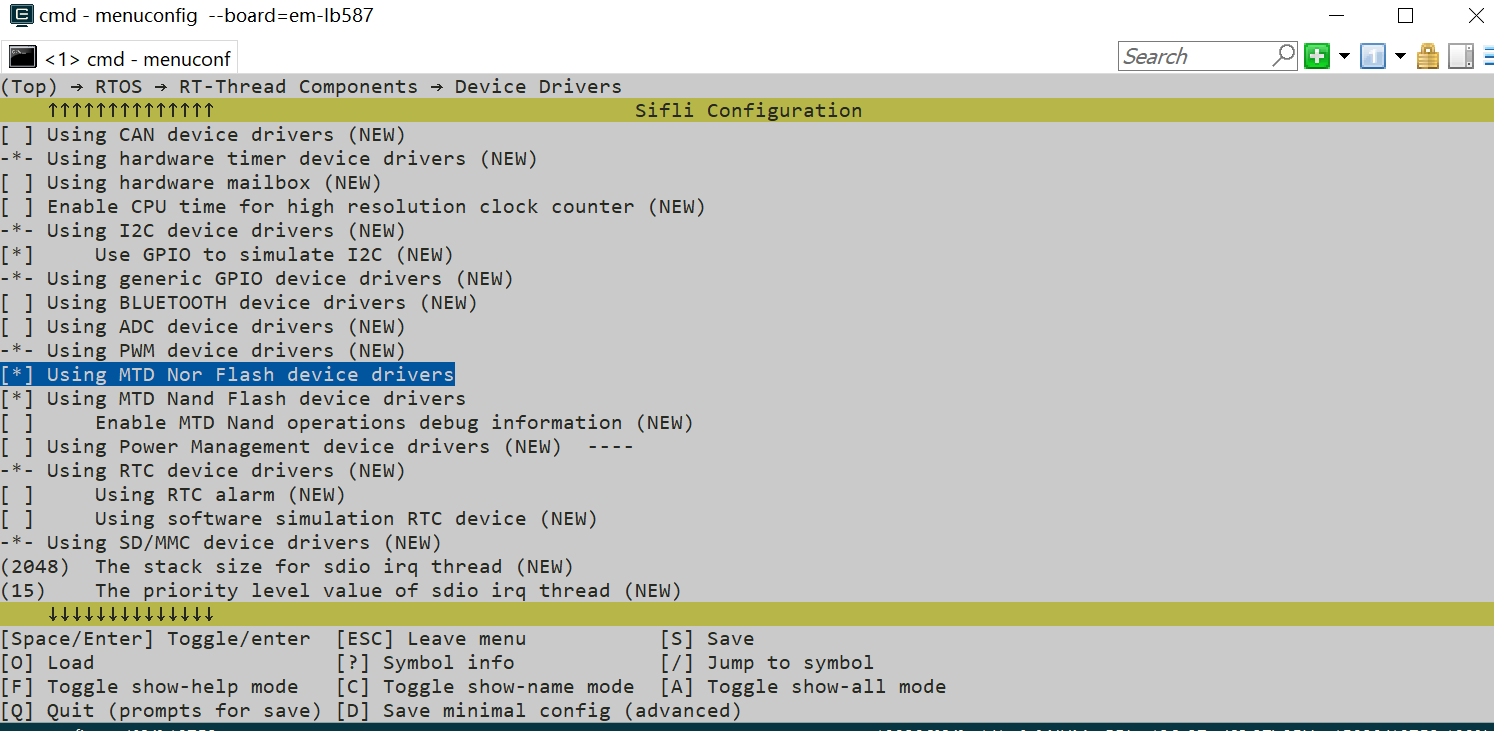

Controls whether to compile and enable support for NOR Flash devices. alt text

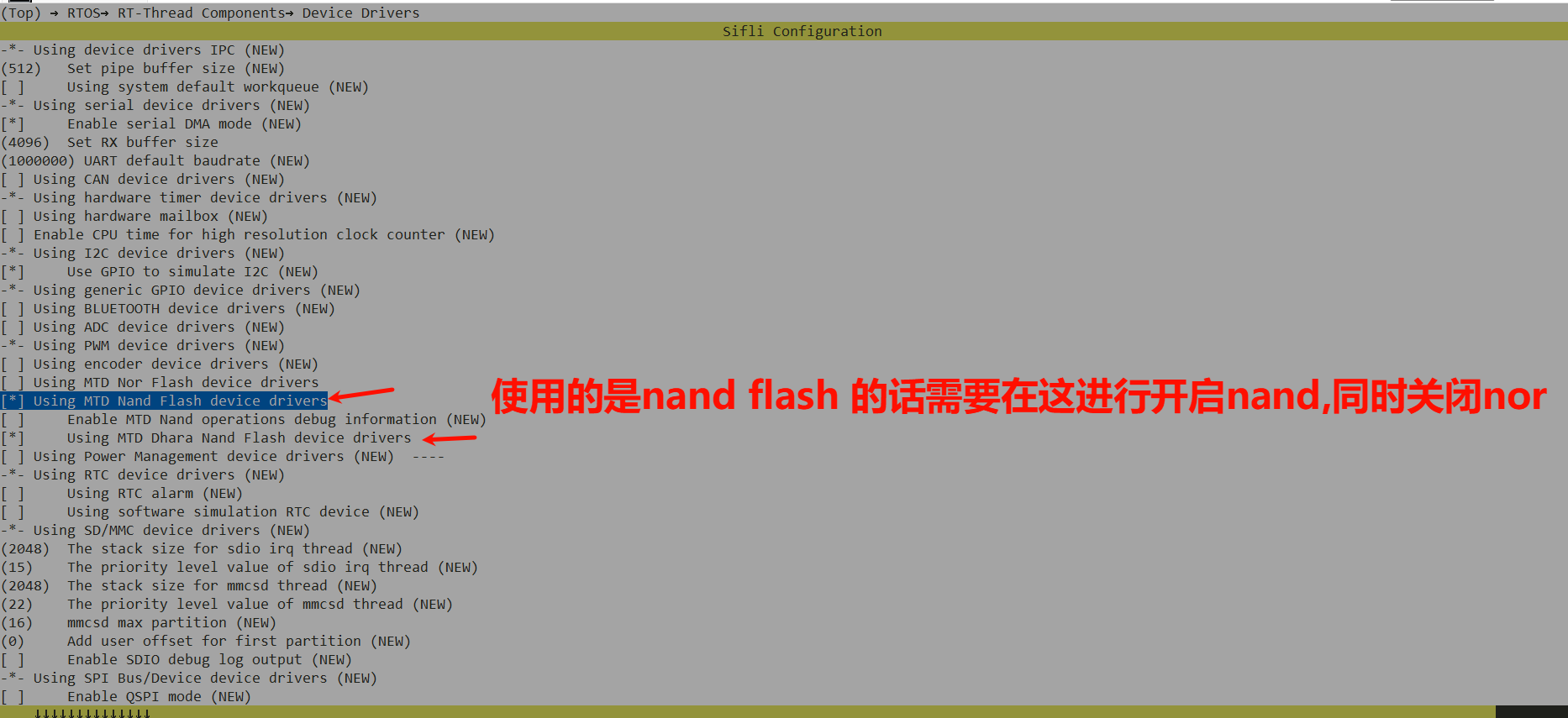

Support for NAND flash devices corresponding to the board alt text

menuconfig Configuration 2

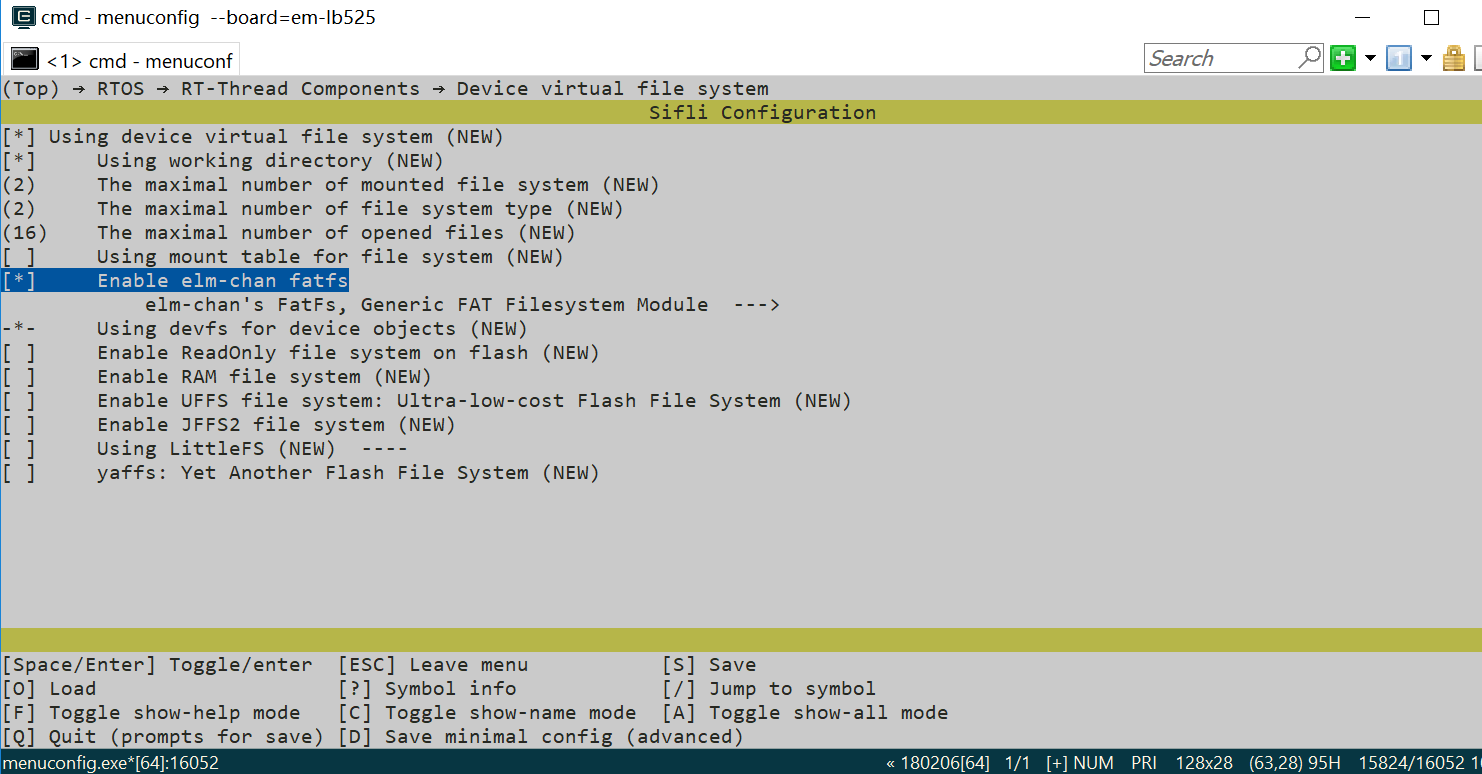

Enable Device File System (DFS) and ELM FAT file system support. DFS is an abstraction layer in the RT-Thread operating system used to uniformly manage different types of file systems. alt text

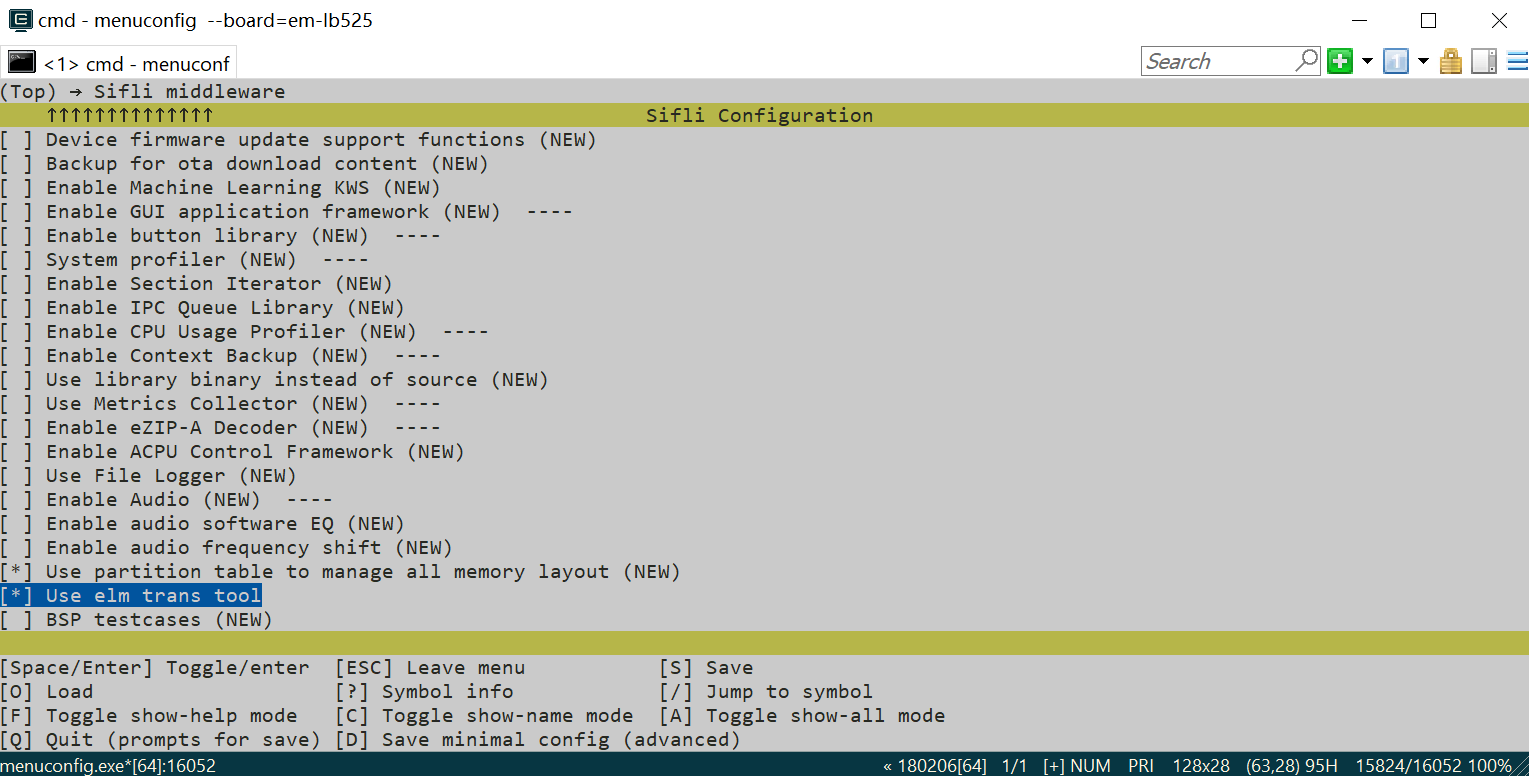

menuconfig Configuration 3

Enable ELM module read/write functionality. alt text

Compilation and Programming

Following these steps, you can complete compilation and programming.

scons –board=sf32lb52-lcd_n16r8

.\build_sf32lb52-lcd_n16r8\uart_download.bat

Example Output Results Display

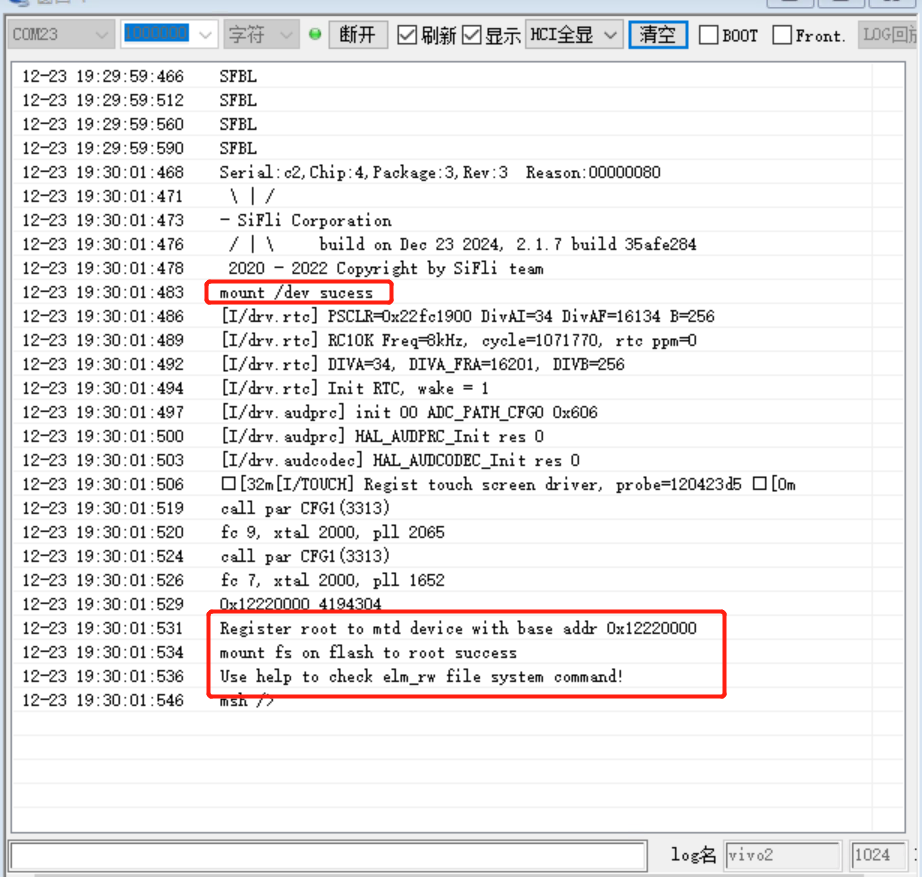

The results below show the logs after the example runs on the development board. System startup

mount /dev sucess
mount fs on flash to root success
Use help to check elm_rw file system command!
msh />

alt text

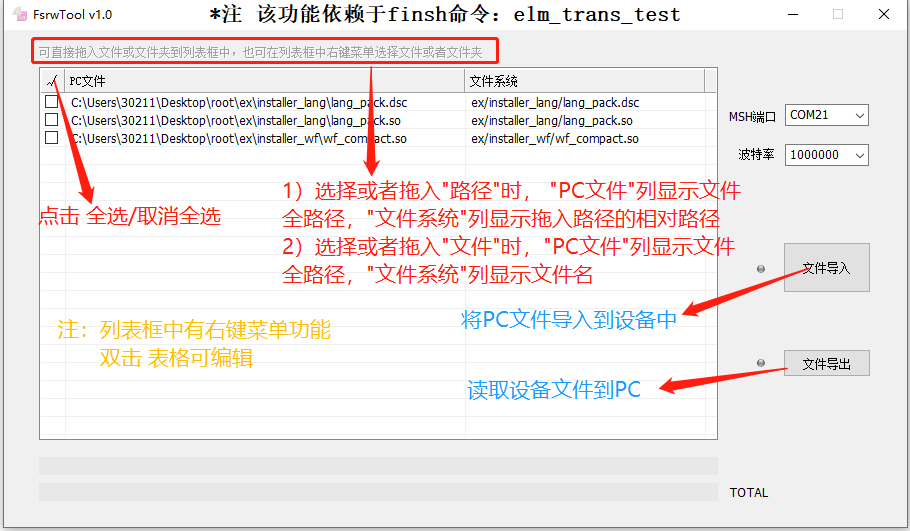

FsrwTool Interactive Usage

The tool is located in the tools\FsrwTool directory

alt text

File Import:

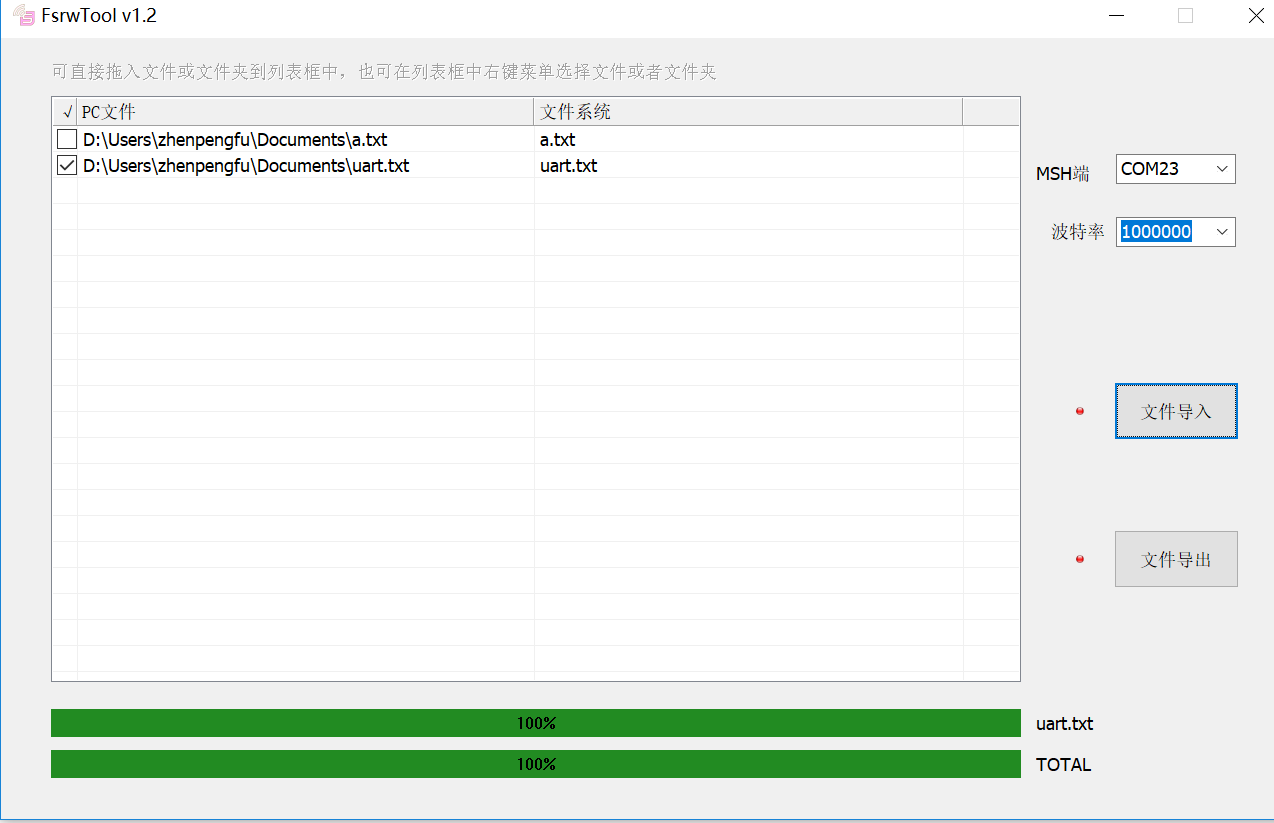

We drag the files we want to import into the list box, click file import, and pay attention to serial port connection and baud rate configuration alt text

View Information of Imported Files:

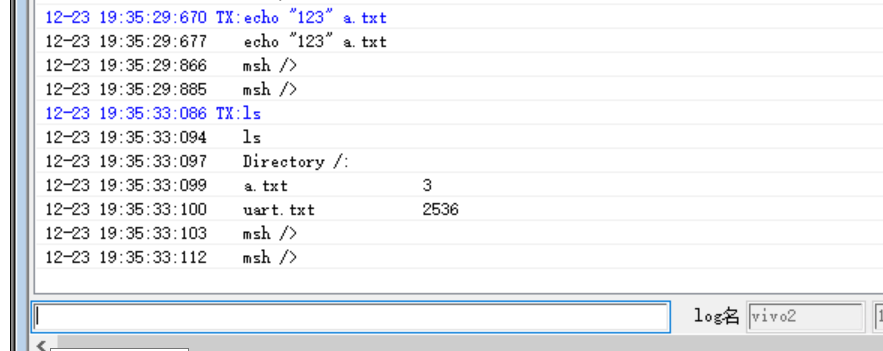

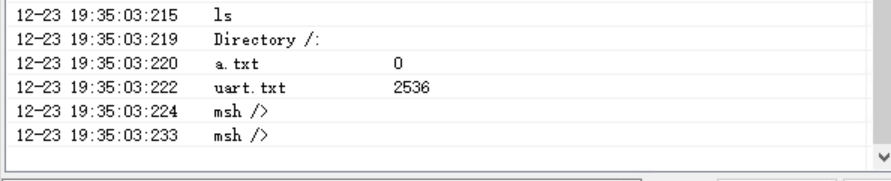

Use the ls command to view file information. The a.txt in the example has no content so it shows 0 characters. Use the echo "123" a.txt command to add file content, where the content in quotes is what you want to add to the file alt text

File Export:

FsrwTool file export does not move files from the development board but copies them out (the board will still retain the previously imported files)

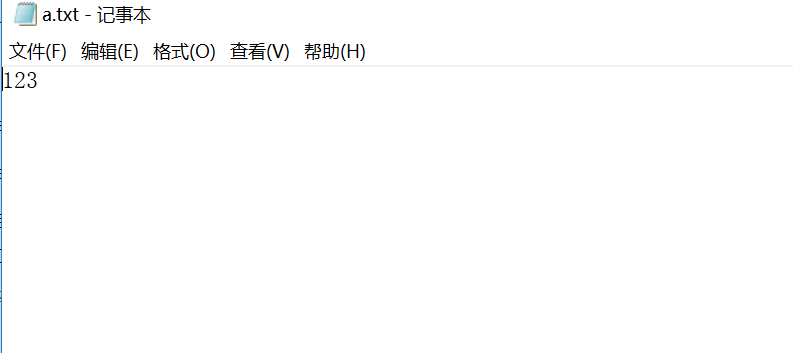

You can see that after adding content, the opened a.txt file content has changed

File Deletion:

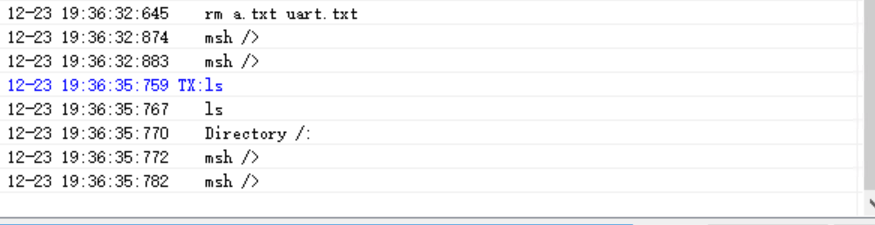

Enter rm file to delete files imported to the development board

FsrwTool-log

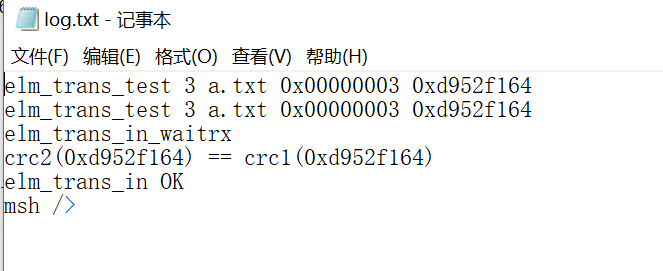

File import log

alt text

File content addition and export log

alt text

Troubleshooting

If the expected logs do not appear, troubleshooting can be performed from the following aspects:

Whether hardware connections are normal
Whether menuconfig configuration is set
Whether the development board flash is normal
Whether imported/exported files are empty or duplicated
