I2S Example

Source path: example/rt_device/i2s

Supported Platforms

  • eh-lb525

  • sf32lb52-lcd_n16r8

Overview

In this example, two development boards are used to demonstrate I2S transmission and reception (one development board A as tx, one development board B as rx), including:

  • Development board A:

    • mic recording.

    • Send to development board B via i2s.

  • Development board B:

    • Receive data from development board A via i2s.

    • speaker playback.

Example Usage

Hardware Requirements

Before running this example, you need to prepare:

  • Two development boards supported by this example (Supported platforms).

  • Speaker.

  • Two data cables (used for program flashing of the two boards respectively).

Hardware Connection\PIN CONFIG

Taking SF32LB52_DevKit-LCD as an example, this example uses PA02 ~ PA06 as I2S pins, pin configuration is as follows:

    /* PIN CONFIG */
#ifdef BSP_ENABLE_I2S_CODEC
#ifdef SOC_SF32LB52X
    HAL_PIN_Set(PAD_PA06, I2S1_LRCK, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA05, I2S1_BCK, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA04, I2S1_SDI, PIN_PULLDOWN, 1);
    HAL_PIN_Set(PAD_PA03, I2S1_SDO, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA02, I2S1_MCLK, PIN_NOPULL, 1);
#endif
#endif

If you need to use other development board models, you need to change the pinmux configuration. Here is an example for 56x:

#ifdef SOC_SF32LB56X
    HAL_PIN_Set(PAD_PA71, I2S1_LRCK, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA40, I2S1_BCK, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA38, I2S1_SDI, PIN_PULLDOWN, 1);
    HAL_PIN_Set(PAD_PA39, I2S1_SDO, PIN_NOPULL, 1);
    HAL_PIN_Set(PAD_PA37, I2S1_MCLK, PIN_NOPULL, 1);
#endif

Wiring:

Development board A

–

Development board B

I2S1_LRCK

–

I2S1_LRCK

I2S1_BCK

–

I2S1_BCK

I2S1_SDI

–

I2S1_SDO

I2S1_SDO

–

I2S1_SDI

I2S1_MCLK

–

I2S1_MCLK

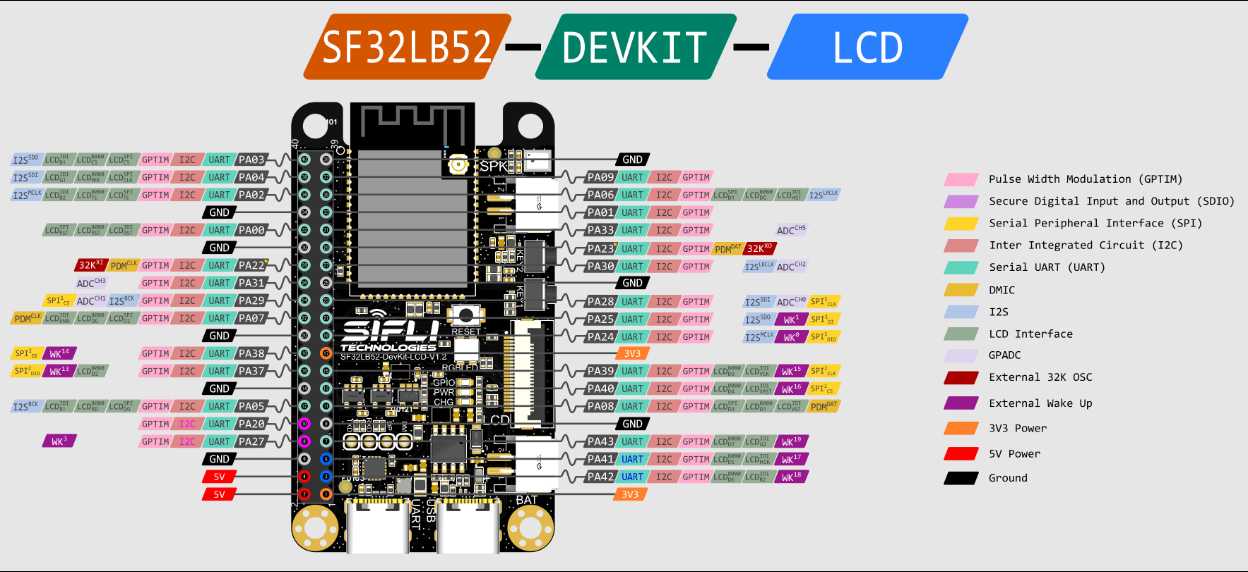

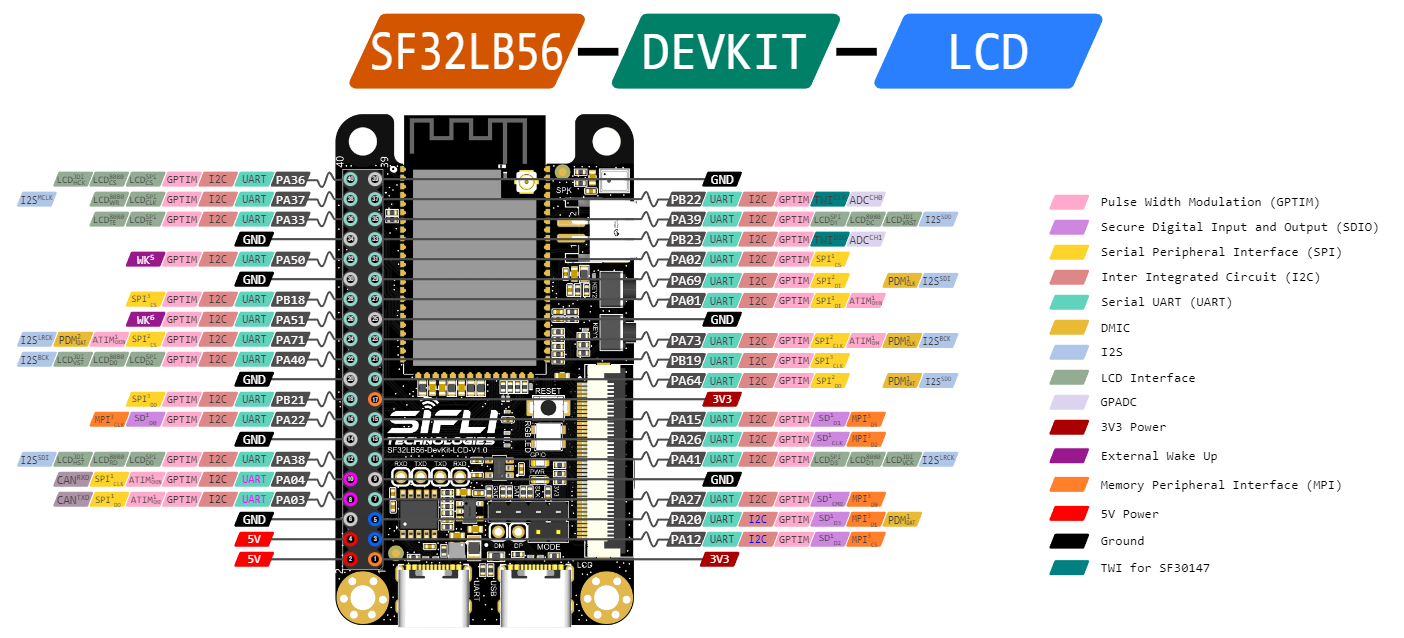

If you are unsure about pin positioning, you can refer to the following figures: SF32LB52x_DevKit_40p diagram: AUDIO CODEC & PROC SF32LB56x_DevKit_40p diagram: AUDIO CODEC & PROC

Warning

On SF32LB52_DevKit-LCD:

  • PA02 ~ PA06 will be used when LCD is configured, pay attention to conflicts (need to disable LCD: BSP_USING_LCD = n BSP_USING_LCDC = n).

For other form factors, you need to refer to the specification to select pins.

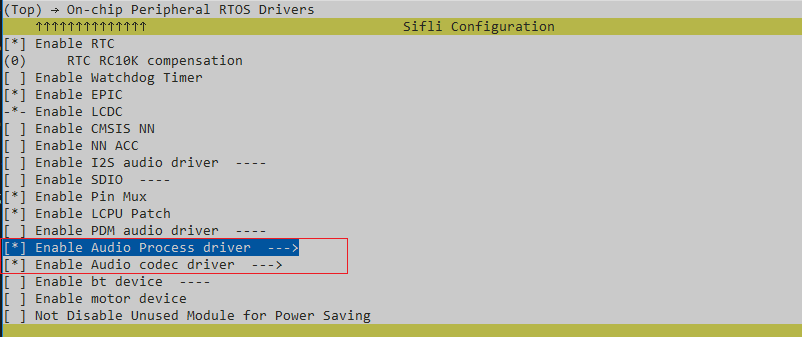

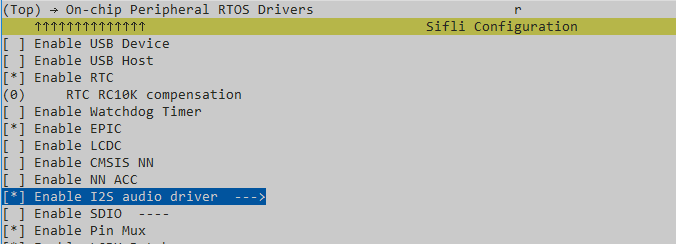

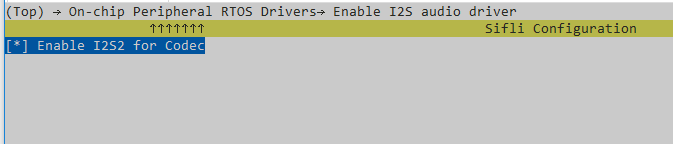

Compilation and Programming

Switch to the example project directory and run the scons command to execute compilation:

> scons --board=eh-lb525 -j32

Switch to the example project/build_xx directory and run uart_download.bat, select the port as prompted to download:

$ ./uart_download.bat

     Uart Download

please input the serial port num:5 (Board A port number)

Flash board B again $ ./uart_download.bat

 Uart Download

please input the serial port num:6 (Board B port number)

For detailed steps on compilation and downloading, please refer to the relevant introduction in Quick Start.

Expected Results

This example operates through FINSH commands:

Purpose

Command

Example

Notes

Recording

audprc rx [channels:1/2] [sampling rate] [sampling bits]

audprc rx 1 16000 16

Recording is saved to ram buffer (recording automatically stops after reaching 1M)

I2S transmission

i2s tx [tx channels:1/2] [tx sampling rate] [tx sampling bits]

i2s tx 1 16000 16

Send recorded data in ram buffer via i2s. The example is configured in master mode by default. Configuration method can be seen in i2s_config_tx.

I2S reception

i2s rx [rx channels:1/2] [rx sampling rate] [rx sampling bits]

i2s rx 1 16000 16

Received data is saved to ram buffer (stops receiving after reaching 1M). The example is configured in slave mode by default. Configuration method can be seen in i2s_config_rx.

Playback recording

audprc tx [channels:1/2] [sampling rate] [sampling bits]

audprc tx 1 16000 16

Playback data from ram buffer

Operations are as follows:

  1. Development board A, record an audio clip.

    01-03 00:50:30:962 TX:audprc rx 1 16000 16
01-03 00:50:30:987    [EX_I2S]Start recording.
01-03 00:50:30:991    [EX_I2S]audprc_rx_entry
01-03 00:50:30:995    [EX_I2S]codec input parameter:sub_type=4 channels 1, rate 16000, bits 16
01-03 00:50:31:000    [EX_I2S]mic input:rx channel 0, channels 1, rate 16000, bitwidth 16
01-03 00:50:31:002    get_mic_volume = 0db

01-03 00:50:31:005    get_mic_volume = 0db

01-03 00:50:31:009    [EX_I2S]start_rx
01-03 00:50:31:011    [I/drv.audcodec] pll config state:1, samplerate:0
01-03 00:50:31:013
01-03 00:50:31:225    [EX_I2S]recording. size:6400
01-03 00:50:31:440    [EX_I2S]recording. size:12800
01-03 00:50:31:633    [EX_I2S]recording. size:19200
01-03 00:50:31:826    [EX_I2S]recording. size:25600
01-03 00:50:32:040    [EX_I2S]recording. size:32000
01-03 00:50:32:232    [EX_I2S]recording. size:38400

// Recording completed
01-03 00:51:03:629    [EX_I2S]recording. size:1043200
01-03 00:51:03:804    [EX_I2S]recording finished. size:1048320
01-03 00:51:03:808    [EX_I2S]Recording finished.
01-03 00:51:03:815    [EX_I2S]stop_rx
01-03 00:51:03:822    [I/drv.audcodec] bf0_audio_stop 0x401
01-03 00:51:03:828
01-03 00:51:03:834    [I/drv.audcodec] audcodec close adc
01-03 00:51:03:840    [I/drv.audcodec] bf0_audio_stop 0x401 done
01-03 00:51:03:850
01-03 00:51:03:854    [I/drv.audprc] bf0_audio_stop 0x1001

  2. I2S transmission and reception

    Development board A starts I2S transmission

    01-03 00:51:44:552 TX:i2s tx 1 16000 16
01-03 00:51:44:577    [EX_I2S]I2S TX:
01-03 00:51:44:582    [EX_I2S]i2s_tx_entry
// Transmission completed (recorded data transmission completed)
01-03 00:52:00:382    [EX_I2S]I2S TX. size:1011200
01-03 00:52:00:474    [EX_I2S]I2S TX. size:1017600
01-03 00:52:00:569    [EX_I2S]I2S TX. size:1024000
01-03 00:52:00:680    [EX_I2S]I2S TX. size:1030400
01-03 00:52:00:772    [EX_I2S]I2S TX. size:1036800
01-03 00:52:00:865    [EX_I2S]I2S TX. size:1043200
01-03 00:52:00:957    [EX_I2S]I2S TX finished.
01-03 00:52:00:962    [EX_I2S]i2s_stop_tx

    At the same time, development board B starts I2S reception

    01-03 00:51:43:833 TX:i2s rx 1 16000 16
01-03 00:51:43:865    [EX_I2S]I2S RX.
01-03 00:51:43:873    [EX_I2S]i2s_rx_entry[I/drv.i2s_audio] Configure audio chn 2, samplerate 16000, bitwidth 16
// Reception completed (full 1M)
01-03 00:51:59:786    [EX_I2S]I2S RX. size:1017600
01-03 00:51:59:878    [EX_I2S]I2S RX. size:1024000
01-03 00:51:59:991    [EX_I2S]I2S RX. size:1030400
01-03 00:52:00:083    [EX_I2S]I2S RX. size:1036800
01-03 00:52:00:177    [EX_I2S]I2S RX. size:1043200
01-03 00:52:00:270    [EX_I2S]I2S RX finished.
01-03 00:52:00:274    [EX_I2S]i2s_stop_rx

    Tip

    After i2s tx starts, there will be empty data. Development board A starting i2s tx and development board B starting i2s rx are not completely synchronized. Empty data is not handled here, so the 1M data received by development board B may have empty data at the beginning and end.

  3. Development board B plays the received data

    01-03 00:52:13:543 TX:audprc tx 1 16000 16
    01-03 00:52:13:591    [EX_I2S]audprc_tx_entry
    01-03 00:52:13:600    [EX_I2S]prc_codec : sub_type=1 channel 1, samplerate 16000, bits 16
    01-03 00:52:13:604    [EX_I2S]speaker OUTPUTSRC channel=1 in_rate=16000 out_rate=16000
    01-03 00:52:13:611    [EX_I2S]speaker select=0x5050 mixer=0x5150
    01-03 00:52:13:618    [EX_I2S]tx[0]: sub_type 0, ch 1, samrate 16000, bits 16
    01-03 00:52:13:622    [EX_I2S]init volume=-18
    01-03 00:52:13:627    [I/drv.audcodec] dac set volume: prc=0 codec=-18
    01-03 00:52:13:631
    01-03 00:52:13:634    [EX_I2S]start_tx
    01-03 00:52:13:639    [I/drv.audcodec] codec dac mute set:1
    01-03 00:52:13:646
    01-03 00:52:13:651    [I/drv.audcodec] pll config state:1, samplerate:0
    01-03 00:52:13:658
    01-03 00:52:13:662    [I/drv.audprc] samplerate = 16000, select voice eq
    01-03 00:52:13:667
    01-03 00:52:13:671    [I/drv.audprc] -----tx dma size = 320
    01-03 00:52:13:675    sifli_aw8155 to do power handle
    01-03 00:52:13:679    sifli_aw8155_start,mode:1 10
    01-03 00:52:13:685    [I/drv.audcodec] codec dac mute set:0
    01-03 00:52:13:690
    01-03 00:52:46:330    [EX_I2S]Play finished.
    01-03 00:52:46:336    [EX_I2S]Play finished.
    01-03 00:52:46:343    [EX_I2S]stop_tx
    01-03 00:52:46:350    [I/drv.audcodec] bf0_audio_stop 0x100
    01-03 00:52:46:354
    01-03 00:52:46:358    [I/drv.audcodec] audcodec close dac
    01-03 00:52:46:363    [I/drv.audcodec] bf0_audio_stop 0x100 done
    01-03 00:52:46:368
    01-03 00:52:46:372    [I/drv.audprc] bf0_audio_stop 0x100
    01-03 00:52:46:377
    01-03 00:52:46:381    [I/drv.audprc] audprc close adc/dac
    01-03 00:52:46:385    [I/drv.audprc] bf0_audio_stop 0x100 done
    01-03 00:52:46:392
    01-03 00:52:46:398    sifli_aw8155_stop
    ```

## Exception Diagnosis


## Reference Documentation
<!-- For rt_device examples, the RT-Thread official website documentation provides more detailed explanations, you can add webpage links here, for example, refer to RT-Thread's [RTC documentation](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/programming-manual/device/rtc/rtc) -->

## Update Log
|Version |Date   |Release Notes |
|:---|:---|:---|
|0.0.1 |12/2024 |Initial version |
| | | |
| | | |
