Graphical Application Framework
Terminology
App: Refers to the GUI part of an application, specifically the View in the MVC model. It is a collection of pages. Both built-in and dynamically installed Apps are supported.
Page: Refers to a display page where users can create controls, register input device handlers, link data services, and display content (Note: This is not the same as
lv_page). Each page has its ownlv_screen, state handling callback functions, and transition animations.lv_screen: A virtual screen in LittleVGL (LVGL). Only one
lv_screencan be displayed at a time on a physical LCD, and input devices can only interact with the currently displayedlv_screen.
Features
Provides scheduling and transition animations for display interfaces between and within Apps.
Keeps track of the order in which Apps are opened and the order in which Pages are opened within an App.
Supports background refreshing of Apps and Pages.
Restrictions
An App must contain at least one page.
A page can belong to any App.
Only one page can be active at a time.
Only one App can be active at a time.
Scheduling Between Pages

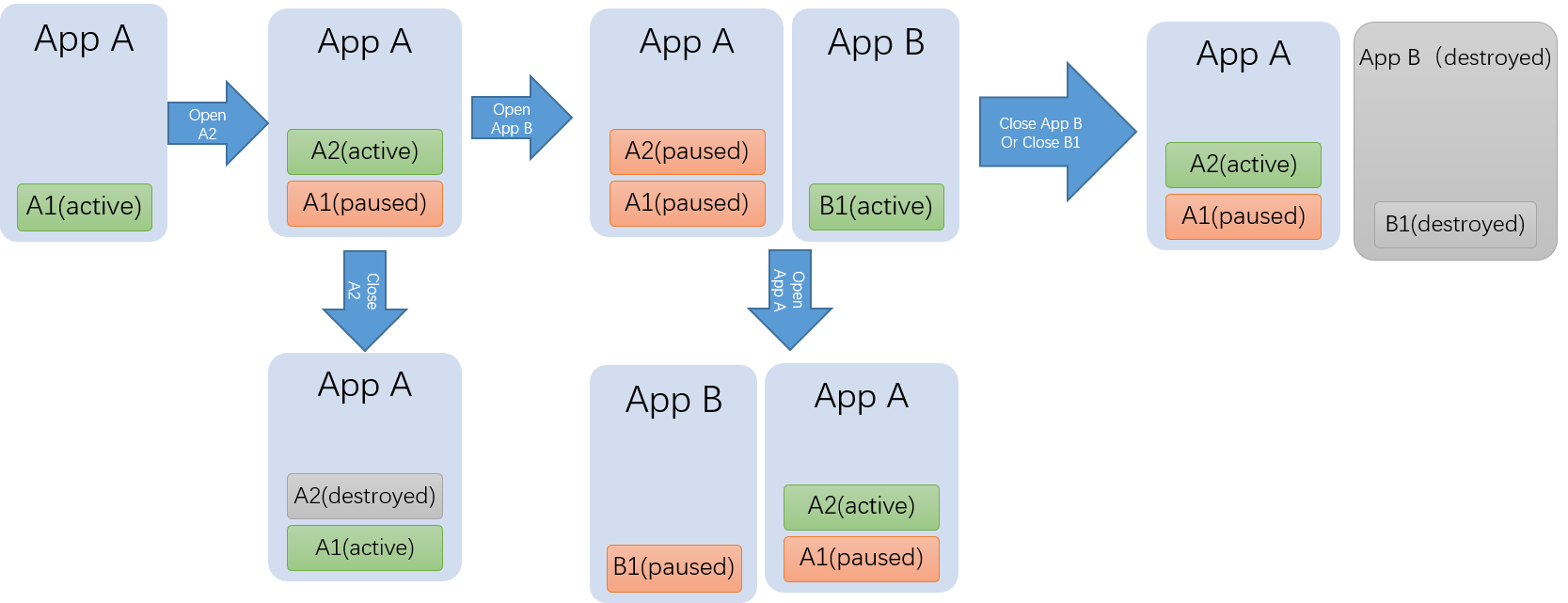

For AppA and AppB, each having three pages, labeled A1~A3 and B1~B3 respectively, the diagram below shows the final state of each page in various scheduling scenarios (Note: the transition states are ignored here).

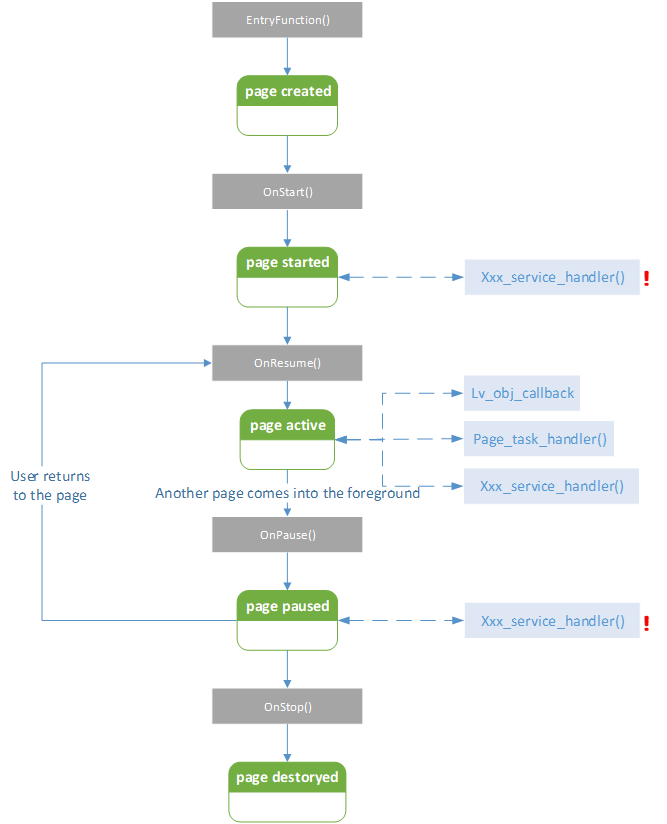

Page State Machine and State Implementation Guidelines
entryfunction(): The function that starts the page. If no parameters are needed, this step can be merged with
on_start.Allocate memory
Receive processing parameters
on_start():
Create and layout
lvcontrols within the current page.Subscribe to services.
Request data from services.
on_resume():
Run internal
lv_taskor timers within the App.
on_pause():
Stop or delete internal
lv_taskin the App.
on_stop():
Unsubscribe from services.
Release memory.
Created
lvcontrols will be automatically deleted, no need for manual deletion.
Additional Handling Functions:
xxx_service_callback(): The handler for services subscribed within the page. @see data_service
Page’s lv_task(): Optional
lv_taskhandling function within the page.lv_obj_callback(): Event handling function for LittleVGL objects.
Application Example
typedef struct
{
lv_obj_t *title_text;
lv_obj_t *img_arrow;
lv_img_dsc_t *p_img_arrow_dsc;
datac_handle_t srv_handle;
uint32_t last_degree;
} app_compass_t;
static app_compass_t *p_compass = NULL;
static void compass_request_data(void)
{
data_msg_t msg;
data_service_init_msg(&msg, MSG_SRV_COMPASS_CUR_VAL_GET_REQ, 0);
datac_send_msg(p_compass->srv_handle, &msg);
}
static int compass_data_callback(data_callback_arg_t *arg)
{
switch (arg->msg_id)
{
case MSG_SERVICE_SUBSCRIBE_RSP:
{
data_rsp_t *rsp;
rsp = (data_rsp_t *)arg->data;
RT_ASSERT(rsp);
/* Subscribe data error */
if (rsp->result < 0)
{
p_compass->srv_handle = DATA_CONN_INVALID_ID;
}
else
{
/* Request compass degree */
compass_request_data();
}
break;
}
case MSG_SRV_COMPASS_CUR_VAL_GET_RSP:
{
compass_data_t *data = (compass_data_t *)arg->data;
if(data)
{
/* Valid data */
if(data->accuracy > 0)
{
uint32_t degree = (3600 - data->azimuth * 10);
/* Need to update UI */
if(degree != p_compass->last_degree)
{
char text_buf[20];
/* Update compass arrow angle */
lv_img_set_angle(p_compass->img_arrow, degree);
/* Update compass angle label text */
sprintf(text_buf, "%d d", degree);
lv_label_set_text(p_compass->title_text, text_buf);
p_compass->last_degree = degree;
}
}
}
/* Request compass degree again */
compass_request_data();
}
break;
default:
break;
}
return 0;
}
static void on_start(void)
{
if (NULL != p_compass)
rt_free(p_compass);
/* Alloc app memory */
p_compass = rt_malloc(sizeof(app_compass_t));
memset(p_compass, 0, sizeof(app_compass_t));
/* Create UI widgets */
{
lv_obj_t *obj;
obj = lv_img_create(lv_scr_act(), NULL);
lv_img_set_src(obj, LV_EXT_IMG_GET(compass_bg));
lv_obj_align(obj, NULL, LV_ALIGN_CENTER, 0, 0);
obj = lv_img_create(lv_scr_act(), NULL);
p_compass->img_arrow = obj;
obj = lv_label_create(lv_scr_act(), NULL);
lv_label_set_text(obj, "230 d");
lv_obj_align(obj, NULL, LV_ALIGN_IN_TOP_LEFT, 10, 10);
p_compass->title_text = obj;
}
/* Subscribe to service data */
p_compass->srv_handle = ui_datac_subscribe("COMP",
compass_data_callback, 0);
}
static void on_pause(void)
{
/* Free SRAM image to save heap memory */
lv_img_set_src(p_compass->img_arrow, NULL);
if(NULL != p_compass->p_img_arrow_dsc)
{
lv_img_buf_free(p_compass->p_img_arrow_dsc);
p_compass->p_img_arrow_dsc = NULL;
}
}
static void on_resume(void)
{
const lv_img_dsc_t *org_img;
org_img = LV_EXT_IMG_GET(compass_arrow);
/* Copy image to SRAM to speed up */
p_compass->p_img_arrow_dsc = lv_img_buf_alloc(org_img->header.w,
org_img->header.h,
org_img->header.cf);
memcpy((void *)p_compass->p_img_arrow_dsc->data, org_img->data, org_img->data_size);
/* Update image's source and coordinates */
lv_img_set_src(p_compass->img_arrow, p_compass->p_img_arrow_dsc);
lv_obj_align(p_compass->img_arrow, NULL, LV_ALIGN_CENTER, 0, 0);
}
static void on_stop(void)
{
/* Unsubscribe from service before exiting app */
if (DATA_CONN_INVALID_ID != p_compass->srv_handle)
{
datac_unsubscribe(p_compass->srv_handle);
p_compass->srv_handle = DATA_CONN_INVALID_ID;
}
if (NULL != p_compass)
{
rt_free(p_compass);
p_compass = NULL;
}
}
static void msg_handler(gui_app_msg_type_t msg, void *param)
{
switch (msg)
{
case GUI_APP_MSG_ONSTART:
on_start();
break;
case GUI_APP_MSG_ONRESUME:
on_resume();
break;
case GUI_APP_MSG_ONPAUSE:
on_pause();
break;
case GUI_APP_MSG_ONSTOP:
on_stop();
break;
default:
break;
}
}
static int app_main(int argc, char *argv[])
{
/* Register root page message handler */
gui_app_regist_msg_handler(argv[0], msg_handler);
return 0;
}
/* Register compass app */
BUILTIN_APP_EXPORT("compass", LV_EXT_IMG_GET(img_compass), "compass", app_main);
