RTC Example

Source path: example/rt_device/rtc

Supported Platforms

sf32lb52-lcd_n16r8
sf32lb58-lcd_n16r64n4

Overview

This example demonstrates system time setting, system time reading, and alarm usage based on the RT device framework:

Set date and time, read date and time.
Set Alarm.

Example Usage

Hardware Requirements

Before running this example, you need to prepare a development board supported by this example

menuconfig Configuration

The following configuration has been set up OK for this example.

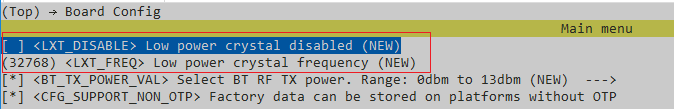

This example is based on external 32k crystal, need to configure LXT enable (LXT_DISABLE not checked):

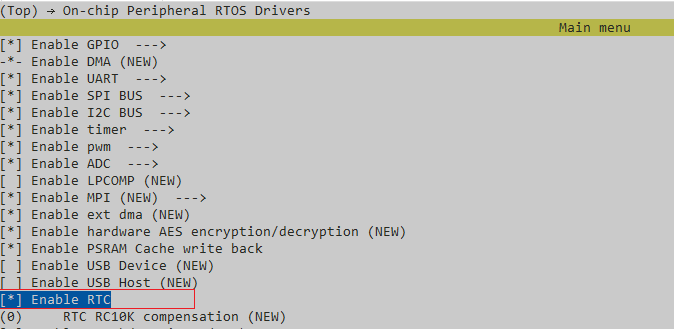

Enable RTC (BSP_USING_ONCHIP_RTC configuration automatically configures RT_USING_RTC):

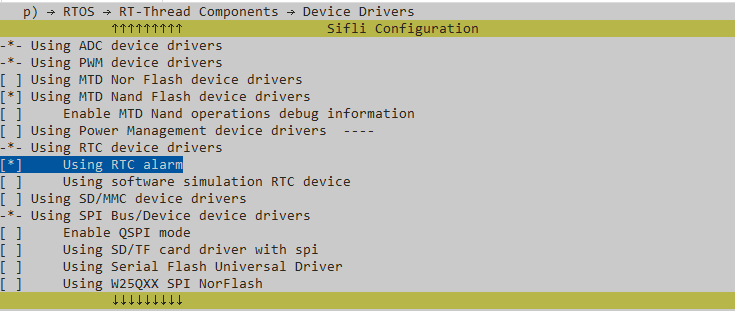

Enable RTC Alarm:

Compilation and Programming

Switch to the example project directory and run the scons command to execute compilation:

scons --board=sf32lb52-lcd_n16r8 -j32

Run build_sf32lb52-lcd_n16r8_hcpu\uart_download.bat, select the port as prompted to download:

$ ./uart_download.bat

     Uart Download

please input the serial port num:5

For detailed steps on compilation and downloading, please refer to the relevant introduction in Getting Started Guide.

Expected Results

After the example starts, the serial port outputs as follows:

Set system time to 2024/01/01 08:30:00

10-09 11:01:46:350    set system time (by RT DEVICE):  2024 01 01 08:30:00
10-09 11:01:46:352    current system time:  2024 01 01 08:30:00

Set system time to 2024/02/01 08:30:00

10-09 11:01:46:354    set system time (by RTT API):  2024 02 01 08:30:00
10-09 11:01:46:356    current system time:  2024 02 01 08:30:00

Set one-shot alarm, alarm time is 08:32:00

10-09 11:01:46:358    SET ONESHOT ALARM : [08:32:00]

Alarm triggered

10-09 11:03:46:301    Alarm triggered at  2024 02 01 08:32:00

Periodically get system time (every second)

10-09 11:03:56:885    current system time:  2024 02 01 08:32:11
10-09 11:03:57:852    current system time:  2024 02 01 08:32:12
10-09 11:03:58:880    current system time:  2024 02 01 08:32:13
10-09 11:03:59:847    current system time:  2024 02 01 08:32:14
10-09 11:04:00:861    current system time:  2024 02 01 08:32:15

Exception Diagnosis

Reference Documentation

RTC Device

Update Log

Version	Date	Release Notes
0.0.1	10/2024	Initial version
