LVGL v9 Official Examples

Source path: example/multimedia/lvgl/lvgl_v9_examples

Supported Platforms

  • sf32lb52-lchspi-ulp

  • SF32LB52x LCD development boards

  • SF32LB56x LCD development boards

  • SF32LB58x LCD development boards

All platforms listed above can run the standard LVGL examples. The TJPGD file example additionally requires a board with an SPI-connected TF card slot and the corresponding SPI bus, TF card device, and file-system configuration. The instructions below use sf32lb52-lchspi-ulp; select the appropriate board name and hardware settings when using another board.

Introduction

This project builds and runs the official LVGL v9 examples. The example sources are under src/examples, and src/examples/lv_examples.h provides the available example functions.

By default, src/main.c calls lv_example_scroll_1(). This example demonstrates horizontal and vertical scrolling when child content extends beyond the visible area.

Switching Examples

Open src/main.c and locate the example calls:

lv_example_scroll_1();
// lv_example_tiny_ttf_1();
// lv_example_file_explorer_1();
// lv_example_tjpgd_1();

Comment out the current example and uncomment the one to run. For example, to select lv_example_tiny_ttf_1():

// lv_example_scroll_1();
lv_example_tiny_ttf_1();
// lv_example_file_explorer_1();
// lv_example_tjpgd_1();

Rebuild and flash the project after changing the example.

Build and Flash

Change to the example’s project directory and run the SCons build:

scons --board=sf32lb52-lchspi-ulp -j8

Run the UART flashing script:

build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat

Enter the serial port number when prompted:

please input the serial port num:5

PC Simulator

The PC configuration is under project/pc_hcpu. First update msvc_setup.bat in the SDK root to match the local MSVC installation, then run the following command from project:

scons --board=pc_hcpu -j8

When the build completes, run build_pc_hcpu/main.exe.

Optional Example: Display a JPG from a TF Card with TJPGD

This section switches the project to lv_example_tjpgd_1(), which loads and displays flower.jpg from a TF card. This is not the default example, so configure the required features and select the example function as described below.

Hardware Requirements

  • A supported board with an SPI-connected TF card interface

  • A USB cable that supports data transfer

  • A TF card and a card reader

Preparing the Image

Copy src/examples/libs/libjpeg_turbo/flower.jpg to the root of the TF card file system. The example opens the image from the following path:

lv_image_set_src(wp, "A:flower.jpg");

Configuring the Project

Run the following command from project:

sdk.py menuconfig --board=sf32lb52-lchspi-ulp

Confirm that the resulting configuration contains:

CONFIG_RT_USING_SPI_MSD=y
CONFIG_RT_USING_DFS_ELMFAT=y
CONFIG_LV_USE_FS_POSIX=y
CONFIG_LV_FS_POSIX_LETTER=65
CONFIG_LV_USE_TJPGD=y
# CONFIG_LV_USE_FS_MEMFS is not set

CONFIG_LV_FS_POSIX_LETTER=65 assigns drive letter A to the LVGL file-system driver. Keep LV_USE_FS_MEMFS disabled when running the file-backed lv_example_tjpgd_1(). Enabling it selects the memory-backed example described later in this document.

Configure the options as follows:

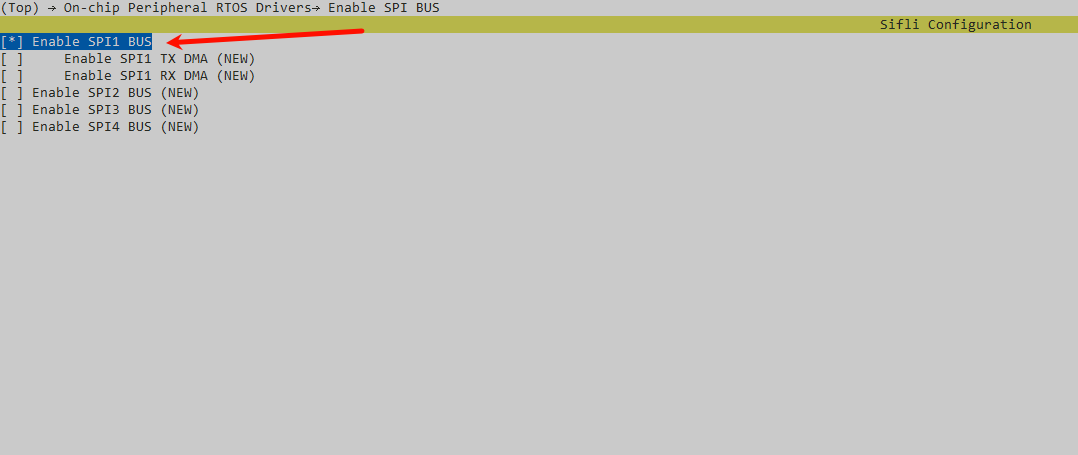

  1. Enable the SPI bus.

    Enable the SPI bus

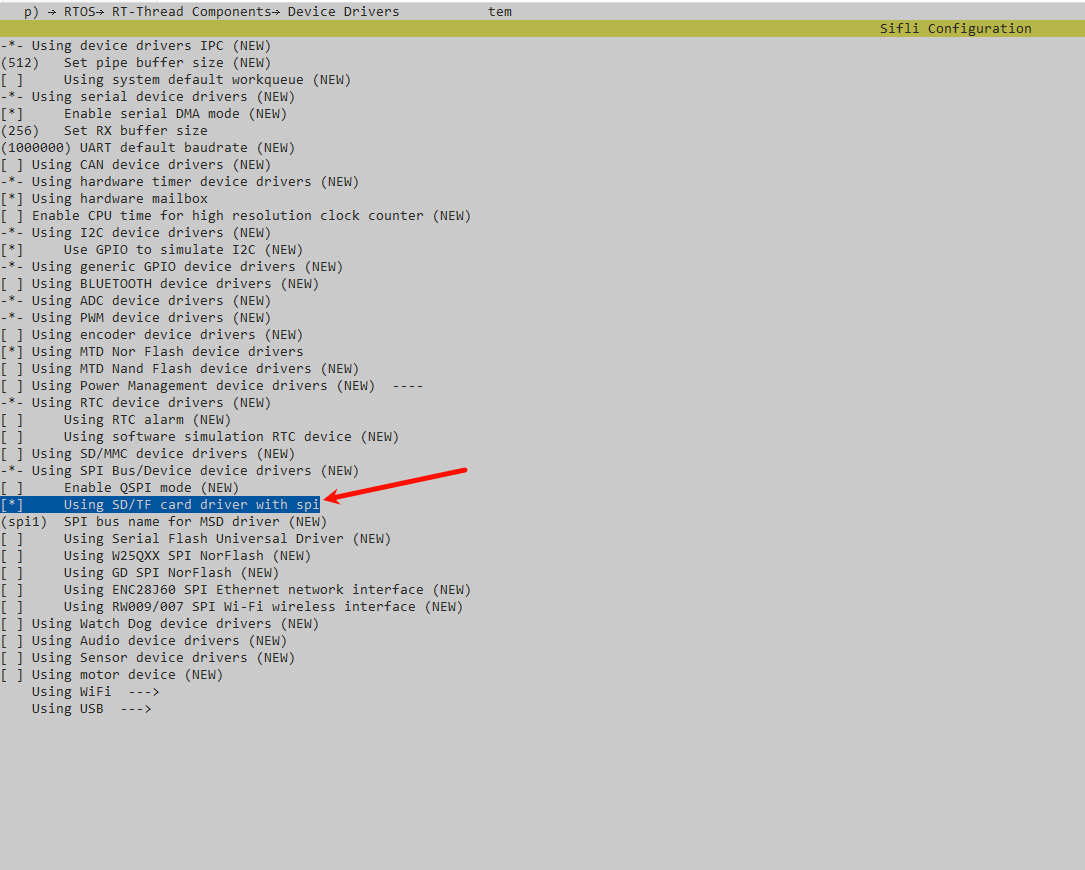

  2. Configure the TF card device on the SPI bus.

    Configure the TF card device

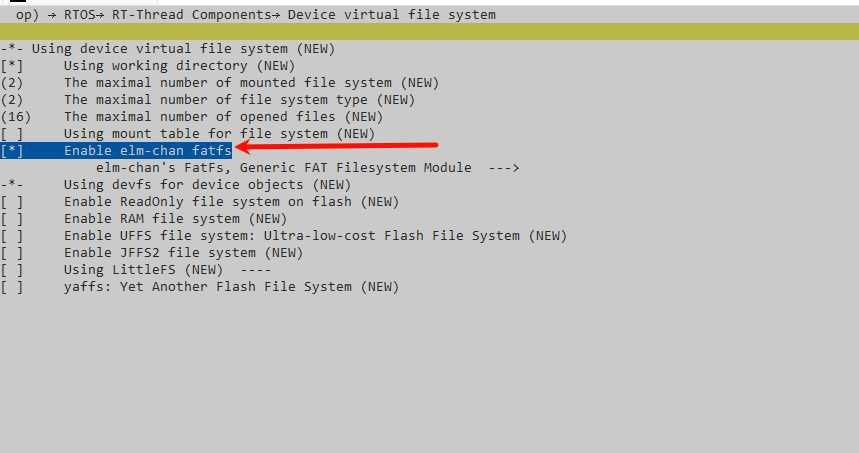

  3. Enable the ELM FAT file system.

    Configure the ELM FAT file system

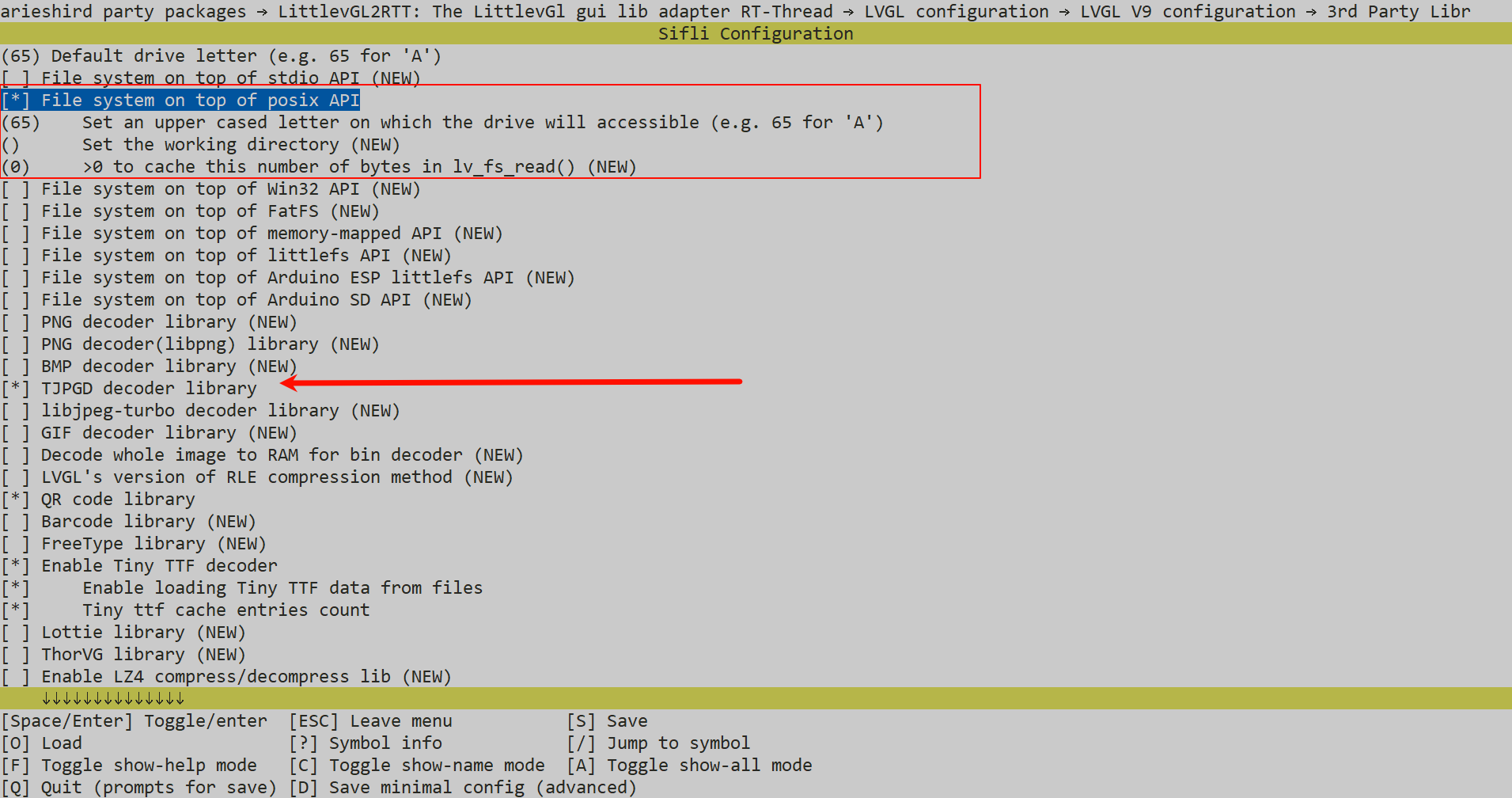

  4. Enable the LVGL POSIX file-system interface and TJPGD decoder, then set the drive letter to A.

    Configure the LVGL file system and TJPGD decoder

Switching the Example

Update src/main.c:

// lv_example_scroll_1();
lv_example_tjpgd_1();

Building and Flashing

Run the following command from project:

scons --board=sf32lb52-lchspi-ulp -j8

To flash over UART, run:

build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat

Enter the serial port number when prompted:

please input the serial port num:5

Warning: If mounting either the TF card’s root file-system region or the /misc file-system region fails, src/main.c calls dfs_mkfs() and formats the affected region automatically. This may erase data in that region. Back up important data before running the example, and verify that the TF card and SPI interface are working correctly.

Expected Output

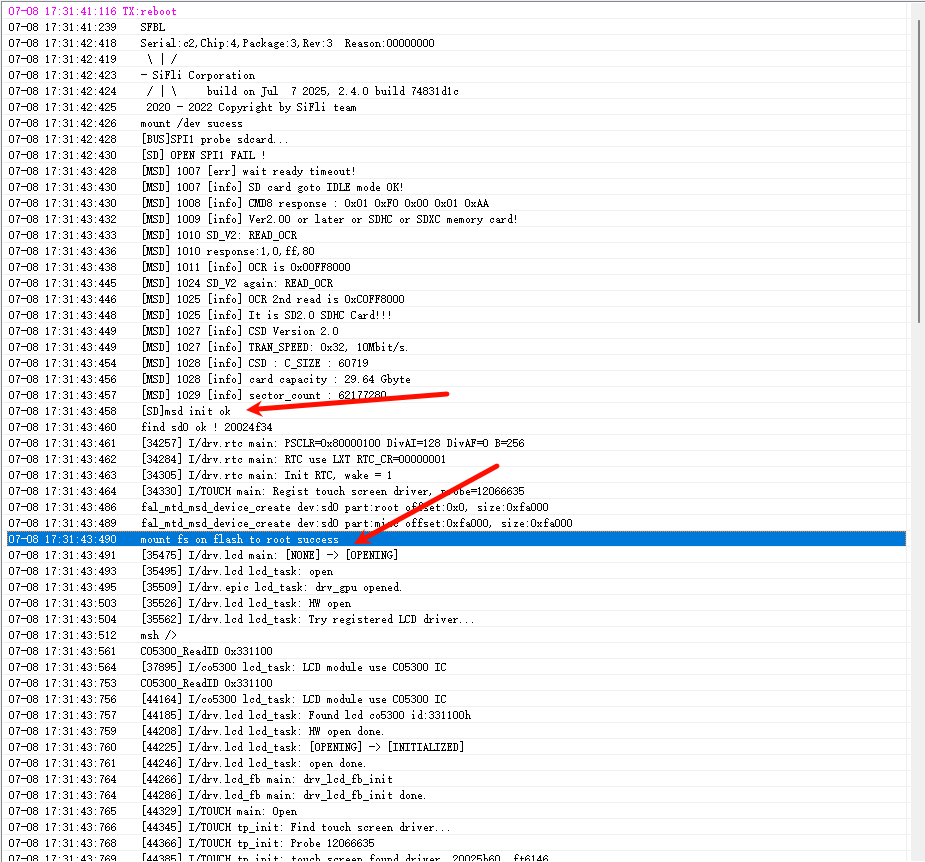

After inserting the TF card, the log message mount fs on flash to root success indicates that the root file system was mounted successfully.

File-system mount log

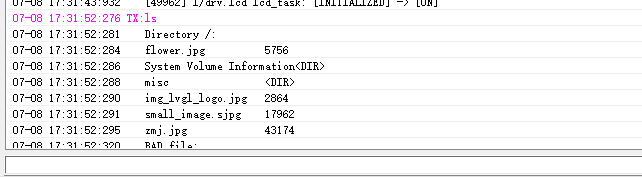

At the Finsh prompt, run ls to list the image files in the TF card root directory.

TF card file list

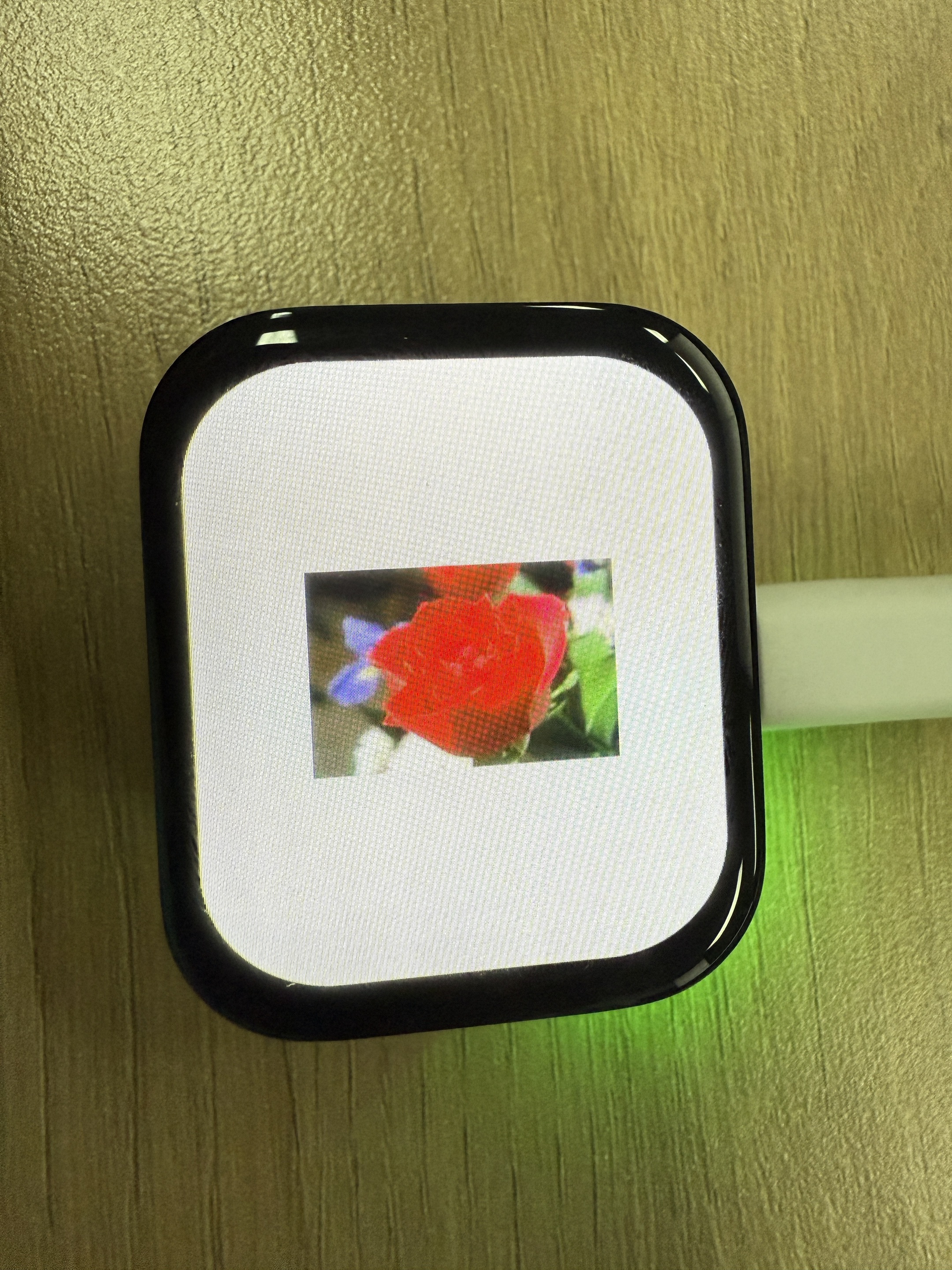

The displayed image should look like this:

TJPGD file example output

Troubleshooting

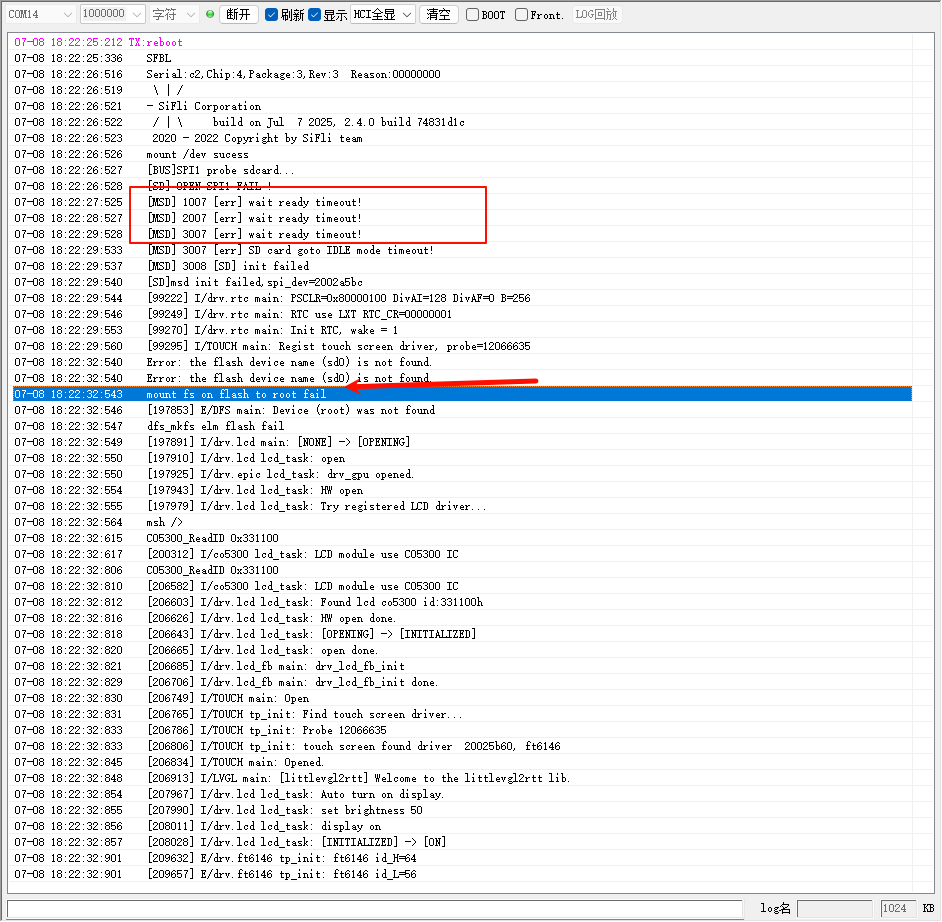

If the following log appears, check that the TF card is inserted securely and can communicate over the SPI bus.

Error log

TJPGD Extension: Display a JPG Embedded in Firmware

This mode embeds the JPEG byte stream in firmware as an lv_image_dsc_t. LVGL treats the descriptor as an LV_IMAGE_SRC_VARIABLE source and uses TJPGD to decode the data, so no TF card is required. The project includes a ready-to-use image resource:

  • Source image: src/examples/libs/tjpgd/img_lvgl_logo.jpg

  • Generated C image asset: src/examples/libs/tjpgd/ui_image_logo.c

  • Image descriptor: img_logo

Configuring the Project

Open the configuration menu from project:

sdk.py menuconfig --board=sf32lb52-lchspi-ulp

Enable TJPGD and MEMFS under the LVGL v9 third-party library options, and assign drive letter M to MEMFS:

CONFIG_LV_USE_TJPGD=y
CONFIG_LV_USE_FS_MEMFS=y
CONFIG_LV_FS_MEMFS_LETTER=77

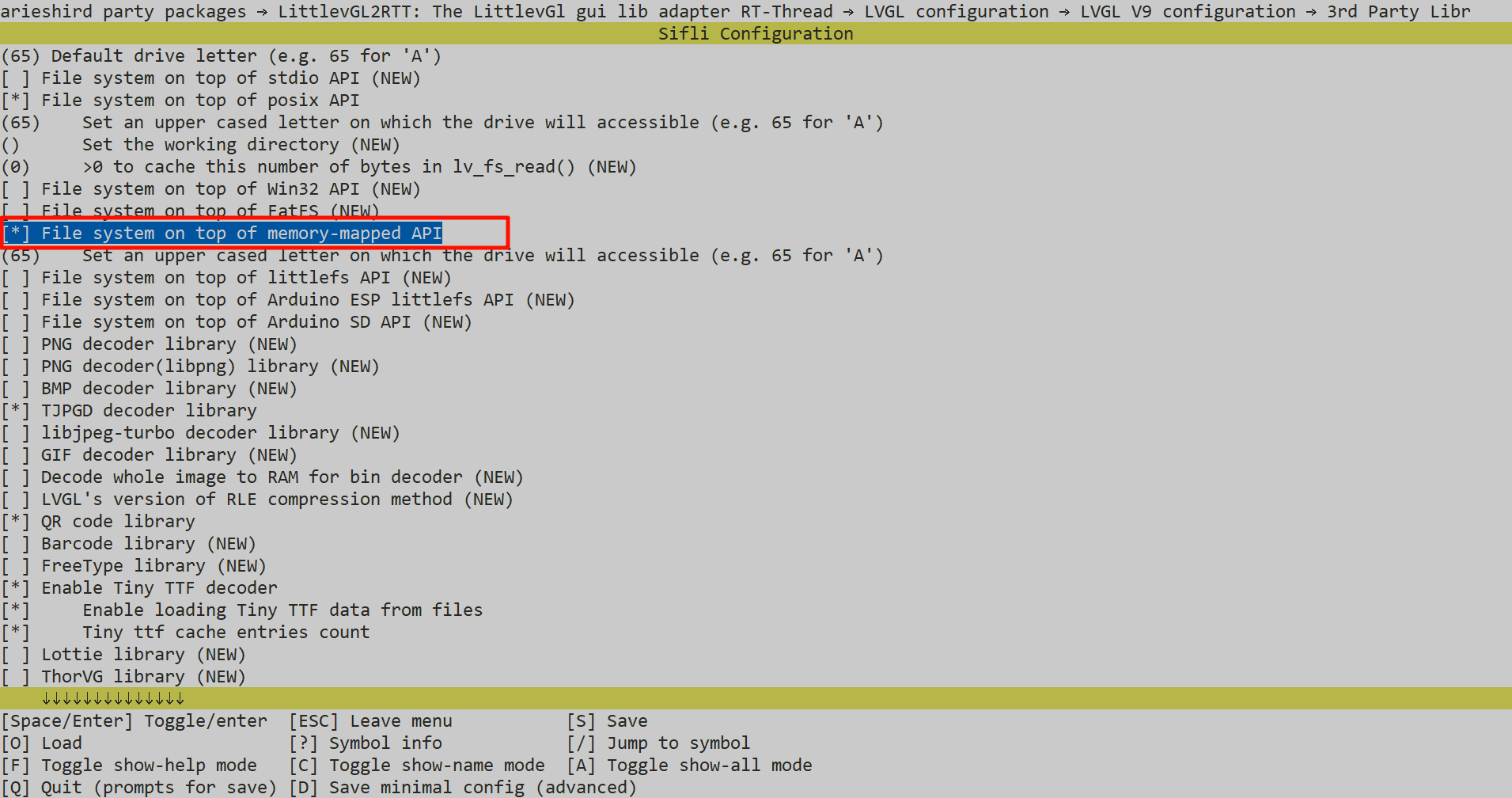

Enable LV_USE_FS_MEMFS

CONFIG_LV_FS_MEMFS_LETTER=77 assigns drive letter M to MEMFS. The POSIX file-system driver already uses A, so the two drivers must not use the same letter.

This mode does not use a TF card. If no other feature requires TF card storage, disable CONFIG_RT_USING_SPI_MSD so that src/main.c does not run its TF card mount and automatic formatting path.

Declaring and Calling the Memory-Backed Example

When LV_USE_FS_MEMFS is enabled, src/examples/libs/tjpgd/lv_example_tjpgd_1.c builds lv_example_tjpgd_2() instead of lv_example_tjpgd_1(). Add its declaration to src/examples/libs/tjpgd/lv_example_tjpgd.h:

void lv_example_tjpgd_1(void);
void lv_example_tjpgd_2(void);

Then update src/main.c to call the memory-backed example:

// lv_example_scroll_1();
// lv_example_tjpgd_1();
lv_example_tjpgd_2();

Rebuild and flash the project as described in the “Build and Flash” section. The display will show img_logo from ui_image_logo.c.

Replacing the Image

  1. Use EEZ Studio, a third-party LVGL image-conversion tool, to export a JPG as a C source file with the RAW color format. Note the generated image descriptor name.

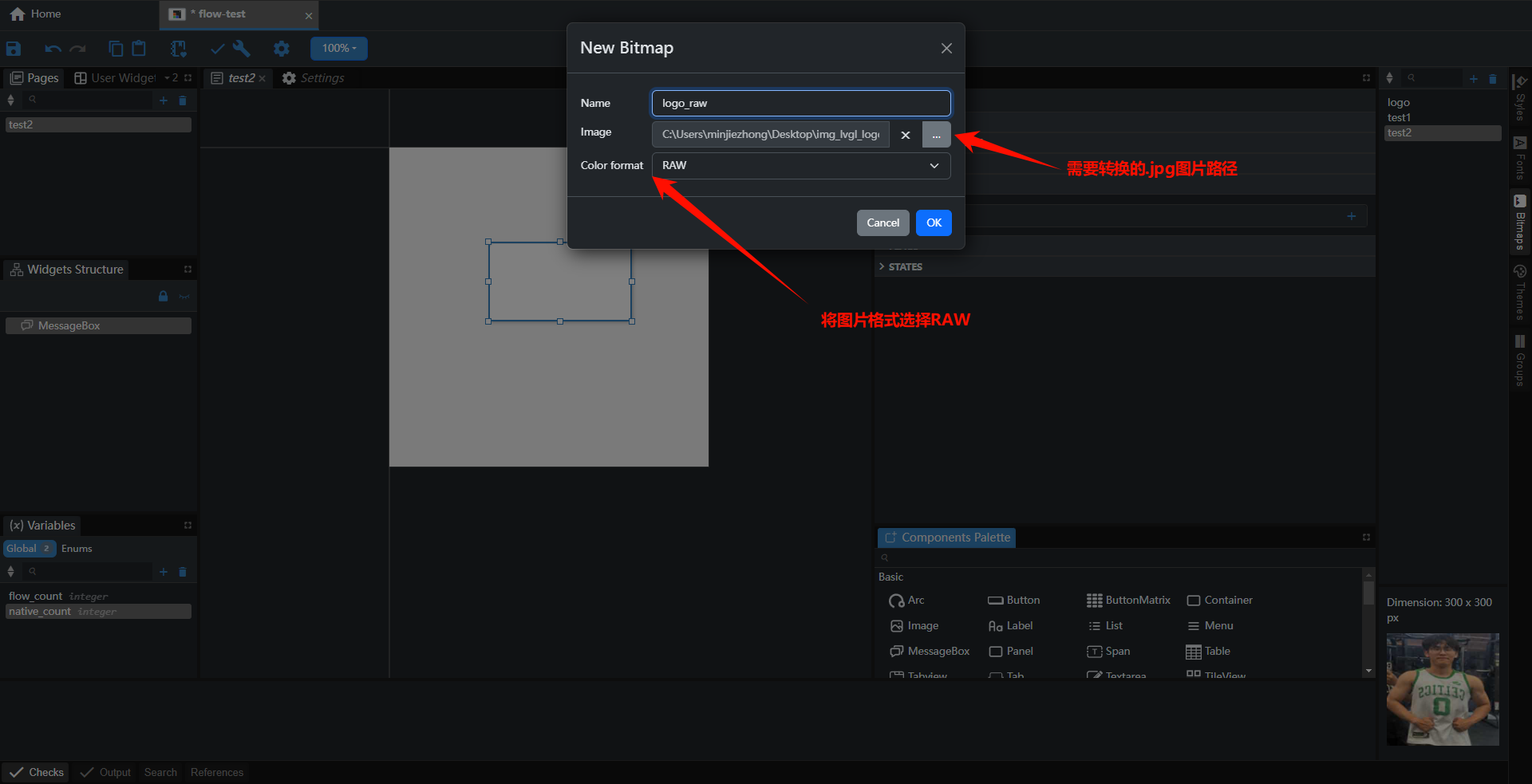

    Select the JPG file in EEZ Studio

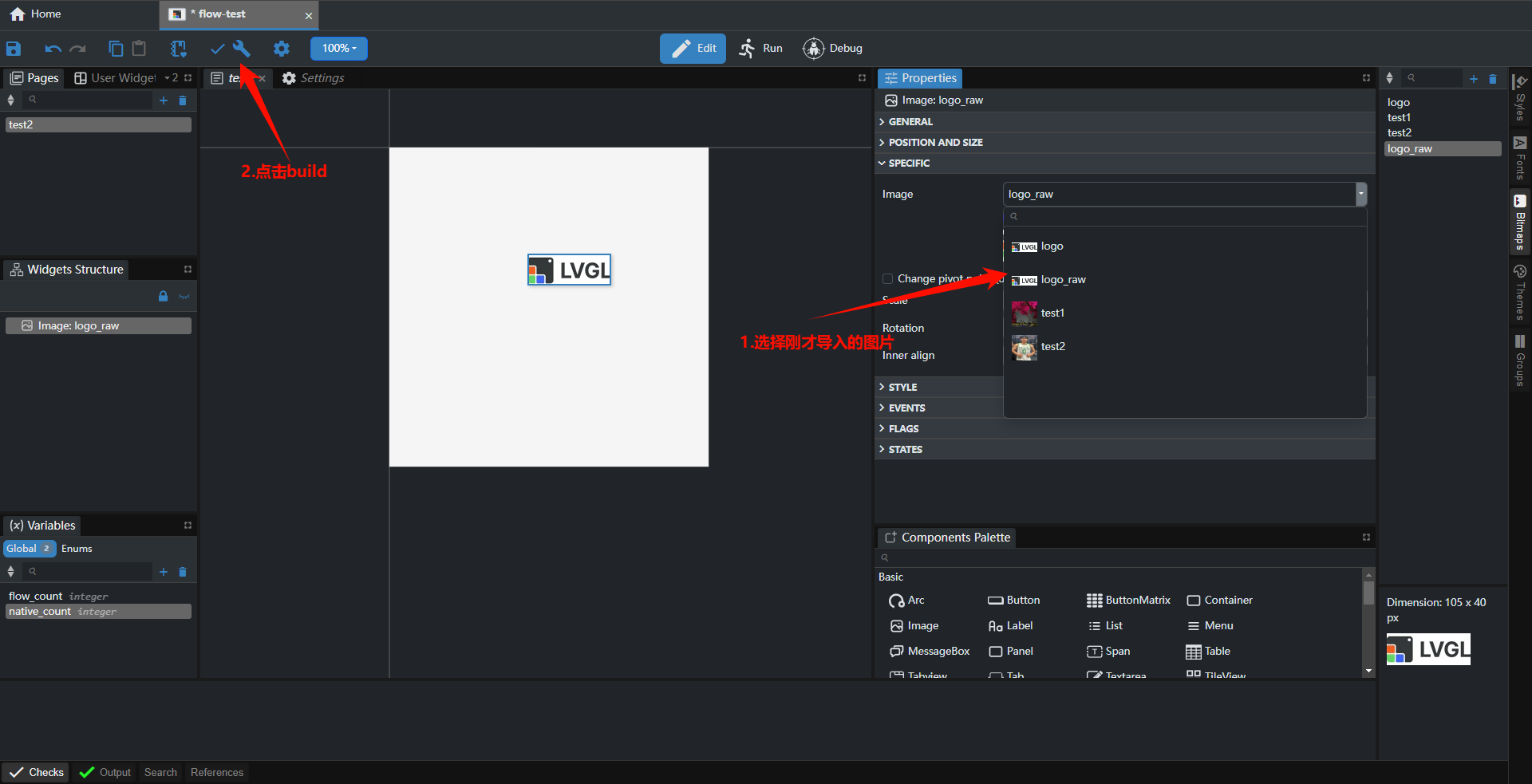

    Export the image in RAW format

  2. Copy the generated .c file to src/examples/libs/tjpgd.

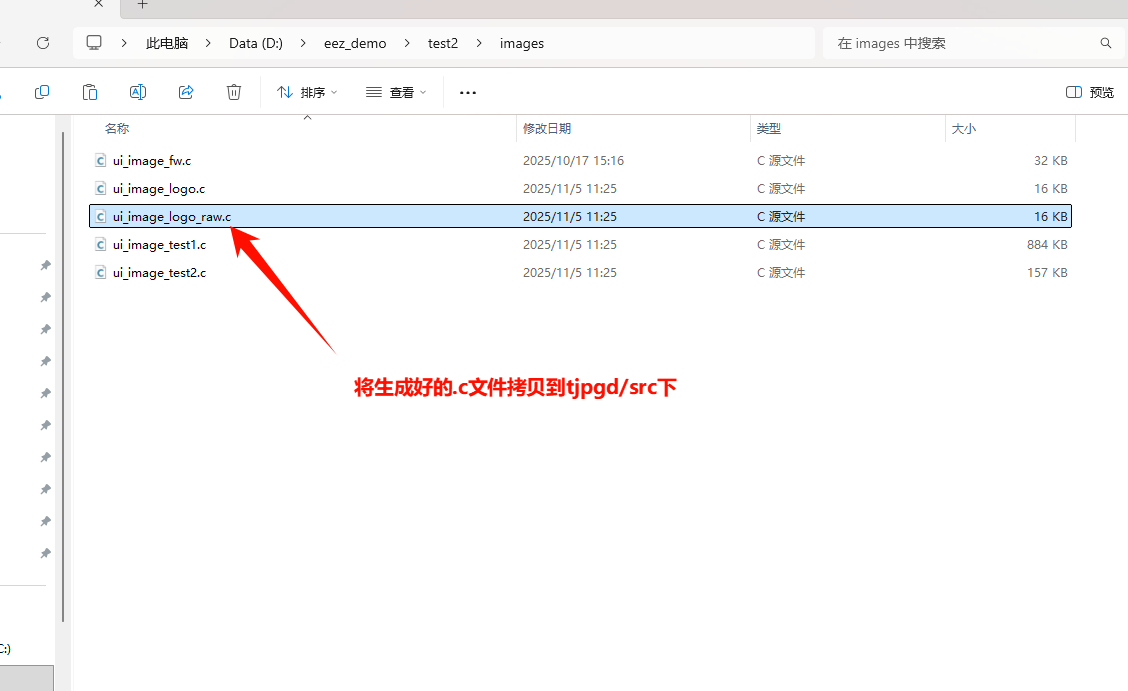

    Copy the generated C file

  3. In src/examples/libs/tjpgd/lv_example_tjpgd_1.c, replace img_logo with the generated image descriptor name:

LV_IMG_DECLARE(your_image);

void lv_example_tjpgd_2(void)
{
    lv_obj_t * wp = lv_image_create(lv_screen_active());
    lv_image_set_src(wp, &your_image);
    lv_obj_center(wp);
}

Rebuild and flash the project. The example will display the replacement image.
