FACC Example

Source Code Path: example/hal/facc

Supported Platforms

The example can run on the following development boards:

  • sf32lb56-lcd_n16r12n1

  • sf32lb56-lcd_a128r12n1

  • sf32lb58-lcd_a128r32n1_dsi

  • sf32lb58-lcd_n16r64n4

Example Overview

  • This example demonstrates how to initialize and use a hardware accelerator module called FACC for performing FIR (Finite Impulse Response) filtering operations, and verifies whether the output results are correct.

Example Usage

Hardware Requirements

Before running this example, you need to prepare a supported development board and a USB data cable.

Compilation and Flashing

Switch to the example project directory and run the scons command to compile:

scons --board=sf32lb58-lcd_n16r64n4 -j8

Execute the flashing command:

build_sf32lb58-lcd_n16r64n4_hcpu\download.bat

Example Output

  • After successful flashing, the serial port will print filtering information

  • If the log shows “ok” after comparison, it indicates successful filtering facc_result

Troubleshooting

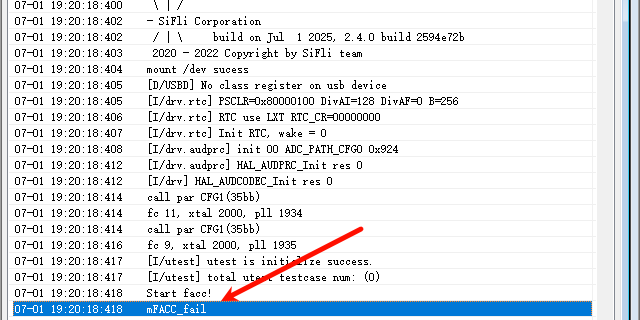

  • Log information for filtering errors facc_fail

  • First check if the input parameters are correct. If the input parameters are incorrect, please verify them. If the input parameters are correct, please check if the filter is working properly

  • Check if the array used to store filtered data is out of bounds: uint8_t facc_output [1024];
