Partition Table Syntax Version 1.0
The partition table description file ptab.json is a text file in JSON format. It follows standard JSON syntax and can be edited with any text editor.
The partition table uses a list to define all memory devices used in the system, such as flash2, psram1, etc.
In version 1.0 of the partition table, there is no dedicated property to specify the version number. Alternatively, a special list element (referred to as the header element) may be used with a version property set to 1, as shown below:
[
{"version": "1"},
{
"mem": "flash2",
"base": "0x12000000",
"regions": []
},
{
"mem": "psram1",
"base": "0x60000000",
"regions": []
}
]
Each element in the list (excluding the header) corresponds to a memory block. For example, in the following example, there are memories such as flash5, psram1, flash4, and hpsys_ram. Each memory has the following properties:
mem: The name of the memory.base: The base address of the memory, in hexadecimal. Must be correct.regions: The list of partitions within the memory.
regions defines the partitions within the memory. Each partition has the following properties:
offset: The offset in bytes (hexadecimal).max_size: The size in bytes (hexadecimal).tags: A list of tags. Each tag is used to generate corresponding macros representing the partition’s size and starting address. For example, a tagFLASH_BOOT_LOADERgeneratesFLASH_BOOT_LOADER_START_ADDR,FLASH_BOOT_LOADER_OFFSET, andFLASH_BOOT_LOADER_SIZEmacros.START_ADDRisbase + offset,OFFSETequals theoffsetvalue, andSIZEequals themax_sizevalue.ftab: Flash table entry information (optional).img: The name of the image file stored in this partition, used to generate flashing scripts (optional).exec: The name of the program that runs on this partition (optional).custom: A custom macro dictionary (optional).
ptab.json Example
[
{
"mem": "flash5",
"base": "0x1C000000",
"regions": [
{
"offset": "0x00020000",
"max_size": "0x00020000",
"tags": [
"FLASH_BOOT_LOADER"
],
"ftab": {
"name": "bootloader",
"address": [
"base",
"xip"
]
},
"img": "bootloader",
"exec": "bootloader"
}
]
},
{
"mem": "psram1",
"base": "0x60000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [],
"ftab": {
"name": "main",
"address": [
"xip"
]
}
},
{
"offset": "0x00200000",
"max_size": "0x00200000",
"tags": [
"PSRAM_DATA"
]
},
]
},
{
"mem": "psram1_cbus",
"base": "0x10000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [
"HCPU_FLASH_CODE"
],
"exec": "main"
}
]
},
{
"mem": "flash4",
"base": "0x18000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [
"HCPU_FLASH_CODE_LOAD_REGION"
],
"img": "main",
"ftab": {
"name": "main",
"address": [
"base"
]
}
},
{
"offset": "0x00200000",
"max_size": "0x00100000",
"tags": [
"FS_REGION"
]
}
]
},
{
"mem": "hpsys_ram",
"base": "0x20000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x0006BC00",
"tags": [
"HCPU_RAM_DATA"
]
},
{
"offset": "0x0006BC00",
"max_size": "0x00014000",
"tags": [
"HCPU_RO_DATA"
]
},
]
}
]
Property Details
ftab
The ftab property defines parameters for a flash table entry, generating the flash table description file ftab.c for compilation. The flash table affects program startup, so ftab must be filled correctly. ftab includes the following properties:
name: Program name.bootloadermeans the secondary bootloader,mainmeans the main program, anddfumeans the DFU program. These are reserved system names and should not be used arbitrarily. Other names can be defined freely by the user, e.g.,acpu_region1can represent an ACPU code partition.address: A list of address types. If the partition stores a program image, use"base". If the program runs directly from the memory region, use"xip". If both (i.e., the program executes in place, XIP), specify both"base"and"xip".
Below is an example describing bootloader stored in flash5, with the address range 0x1C020000~0x1C03FFFF. The secondary bootloader code also runs directly from flash5 (XIP).
{
"mem": "flash5",
"base": "0x1C000000",
"regions": [
{
"offset": "0x00020000",
"max_size": "0x00020000",
"tags": [
"FLASH_BOOT_LOADER"
],
"ftab": {
"name": "bootloader",
"address": [
"base",
"xip"
]
},
"img": "bootloader",
"exec": "bootloader"
}
]
},
Programs that are not reserved system programs (name is not main, bootloader, or dfu) use the following flash table entries to describe stored image info in sequence:
DFU_FLASH_HCPU_EXT2: 11
DFU_FLASH_LCPU_EXT1: 12
DFU_FLASH_LCPU_EXT2: 13
For example, the following ptab.json snippet defines acpu_region1 using flash4 offset 0x00300000 as the ACPU program’s base address and hpsys_ram offset 0x00200000 as the XIP address. The generated ftab.c file uses DFU_FLASH_HCPU_EXT2 to describe the image storage and execution addresses, with length determined by the program image file (example: 0x7d4 bytes) that is specified by img property (see img for details)
acpu_region1 Example
{
"mem": "flash4",
"base": "0x18000000",
"regions": [
{
"offset": "0x00300000",
"max_size": "0x00010000",
"tags": [
"ACPU_CODE_LOAD_REGION1"
],
"img": "acpu",
"ftab": {
"name": "acpu_region1",
"address": [
"base"
]
}
}
]
},
{
"mem": "hpsys_ram",
"base": "0x20000000",
"regions": [
{
"offset": "0x00200000",
"max_size": "0x00020000",
"tags": [
"ACPU_CODE_REGION1_SBUS"
],
"ftab": {
"name": "acpu_region1",
"address": [
"xip"
]
}
}
]
},
The ftab.c generated from this example is as follows:
1RT_USED const struct sec_configuration sec_config =
2{
3 .magic = SEC_CONFIG_MAGIC,
4 .ftab[0] = {.base = FLASH_TABLE_START_ADDR, .size = FLASH_TABLE_SIZE, .xip_base = 0, .flags = 0},
5 .ftab[1] = {.base = FLASH_CAL_TABLE_START_ADDR, .size = FLASH_CAL_TABLE_SIZE, .xip_base = 0, .flags = 0},
6 .ftab[3] = {.base = 0x1C020000, .size = 0x00020000, .xip_base = 0x1C020000, .flags = 0},
7 .ftab[4] = {.base = 0x18000000, .size = 0x00200000, .xip_base = 0x60000000, .flags = 0},
8 .ftab[5] = {.base = FLASH_BOOT_PATCH_START_ADDR, .size = FLASH_BOOT_PATCH_SIZE, .xip_base = BOOTLOADER_PATCH_CODE_ADDR, .flags = 0},
9 .ftab[7] = {.base = 0x1C020000, .size = 0x00020000, .xip_base = 0x1C020000, .flags = 0},
10 .ftab[8] = {.base = 0x18000000, .size = 0x00200000, .xip_base = 0x60000000, .flags = 0},
11 .ftab[9] = {.base = BOOTLOADER_PATCH_CODE_ADDR, .size = FLASH_BOOT_PATCH_SIZE, .xip_base = BOOTLOADER_PATCH_CODE_ADDR, .flags = 0},
12 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_HCPU)] = {.length = 0x000FB1F8, .blksize = 512, .flags = DFU_FLAG_AUTO},
13 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_LCPU)] = {.length = 0xFFFFFFFF},
14 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_BL)] = {.length = 0x80000, .blksize = 512, .flags = DFU_FLAG_AUTO},
15 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_BOOT)] = {.length = 0xFFFFFFFF},
16 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_LCPU2)] = {.length = 0xFFFFFFFF},
17 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_BCPU2)] = {.length = 0xFFFFFFFF},
18 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_HCPU2)] = {.length = 0xFFFFFFFF},
19 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_BOOT2)] = {.length = 0xFFFFFFFF},
20 .ftab[DFU_FLASH_HCPU_EXT2] = {.base = 0x18300000, .size = 0x00020000, .xip_base = 0x20200000, .flags = 0},
21 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_HCPU_EXT2)] = {.length = 0x000007D4, .blksize = 512, .flags = DFU_FLAG_AUTO},
22 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_LCPU_EXT1)] = {.length = 0xFFFFFFFF},
23 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_LCPU_EXT2)] = {.length = 0xFFFFFFFF},
24 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_RESERVED)] = {.length = 0xFFFFFFFF},
25 .imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_SINGLE)] = {.length = 0xFFFFFFFF},
26 .running_imgs[CORE_HCPU] = (struct image_header_enc *) &sec_config.imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_HCPU)],
27 .running_imgs[CORE_LCPU] = (struct image_header_enc *)0xFFFFFFFF,
28 .running_imgs[CORE_BL] = (struct image_header_enc *) &sec_config.imgs[DFU_FLASH_IMG_IDX(DFU_FLASH_IMG_BL)],
29 .running_imgs[CORE_BOOT] = (struct image_header_enc *)0xFFFFFFFF,
30};
The following diagram shows how the storage and execution addresses for the ACPU program in ftab.c are extracted from ptab.json.
The img property specifies the program image file stored in a partition. The flashing script uses this to determine the flash address. If the ftab base and xip addresses are the same, img is unnecessary because the hex file already contains the address info for flashing.
Example:
{
"mem": "flash4",
"base": "0x18000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [
"HCPU_FLASH_CODE_LOAD_REGION"
],
"img": "main",
"ftab": {
"name": "main",
"address": [
"base"
]
}
}
]
},
{
"mem": "psram1",
"base": "0x60000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [],
"ftab": {
"name": "main",
"address": [
"xip"
]
}
}
]
},
{
"mem": "psram1_cbus",
"base": "0x10000000",
"regions": [
{
"offset": "0x00000000",
"max_size": "0x00200000",
"tags": [
"HCPU_FLASH_CODE"
],
"exec": "main"
}
]
},
The specified image name must match the binary generated by the project. If only one binary is generated, you can omit the .bin extension and name it simply main, bootloader, or lcpu. If there are multiple files, use the format proj_name:binary_name. For example, if acpu is added as a sub-project, its binaries ER_IROM1.bin and ER_IROM2.bin can be specified as acpu:ER_IROM1.bin and acpu:ER_IROM2.bin.
exec
The exec property specifies the name of the executable program stored in a partition. It allows the same linker script to be reused for building the main and sub-programs like bootloader, DFU, and main. For example, CODE_START_ADDR is specified by ptab.h based on the partition.
When building the bootloader:
#undef FLASH_BOOT_LOADER_START_ADDR
#define FLASH_BOOT_LOADER_START_ADDR (0x1C020000)
#undef FLASH_BOOT_LOADER_SIZE
#define FLASH_BOOT_LOADER_SIZE (0x00020000)
#undef FLASH_BOOT_LOADER_OFFSET
#define FLASH_BOOT_LOADER_OFFSET (0x00020000)
#define CODE_START_ADDR (FLASH_BOOT_LOADER_START_ADDR)
#define CODE_SIZE (FLASH_BOOT_LOADER_SIZE)
When building the main program:
#undef HCPU_FLASH_CODE_START_ADDR
#define HCPU_FLASH_CODE_START_ADDR (0x10000000)
#undef HCPU_FLASH_CODE_SIZE
#define HCPU_FLASH_CODE_SIZE (0x00200000)
#undef HCPU_FLASH_CODE_OFFSET
#define HCPU_FLASH_CODE_OFFSET (0x00000000)
#define CODE_START_ADDR (HCPU_FLASH_CODE_START_ADDR)
#define CODE_SIZE (HCPU_FLASH_CODE_SIZE)
Note
Note: For PSRAM partitions, CBUS and SBUS are two address spaces. For example, CBUS address is 0x10000000 and SBUS is 0x60000000. The exec property must be specified for the CBUS partition to ensure the execution address uses CBUS space, while ftab "xip" must be specified for the SBUS partition to ensure the code is copied there.
custom
The custom property allows adding custom macros to ptab.h. The value must be a dictionary. For example:
"custom": {
"PSRAM_BL_MODE": 3,
"PSRAM_BL_SIZE": 8,
"PSRAM_BL_MPI": 2
}
Generates:
#define PSRAM_BL_MODE (3)
#define PSRAM_BL_SIZE (8)
#define PSRAM_BL_MPI (1)
Note
Note: Dictionary values must be integers.
Multi binary configuration
CODE, Resource binary separation

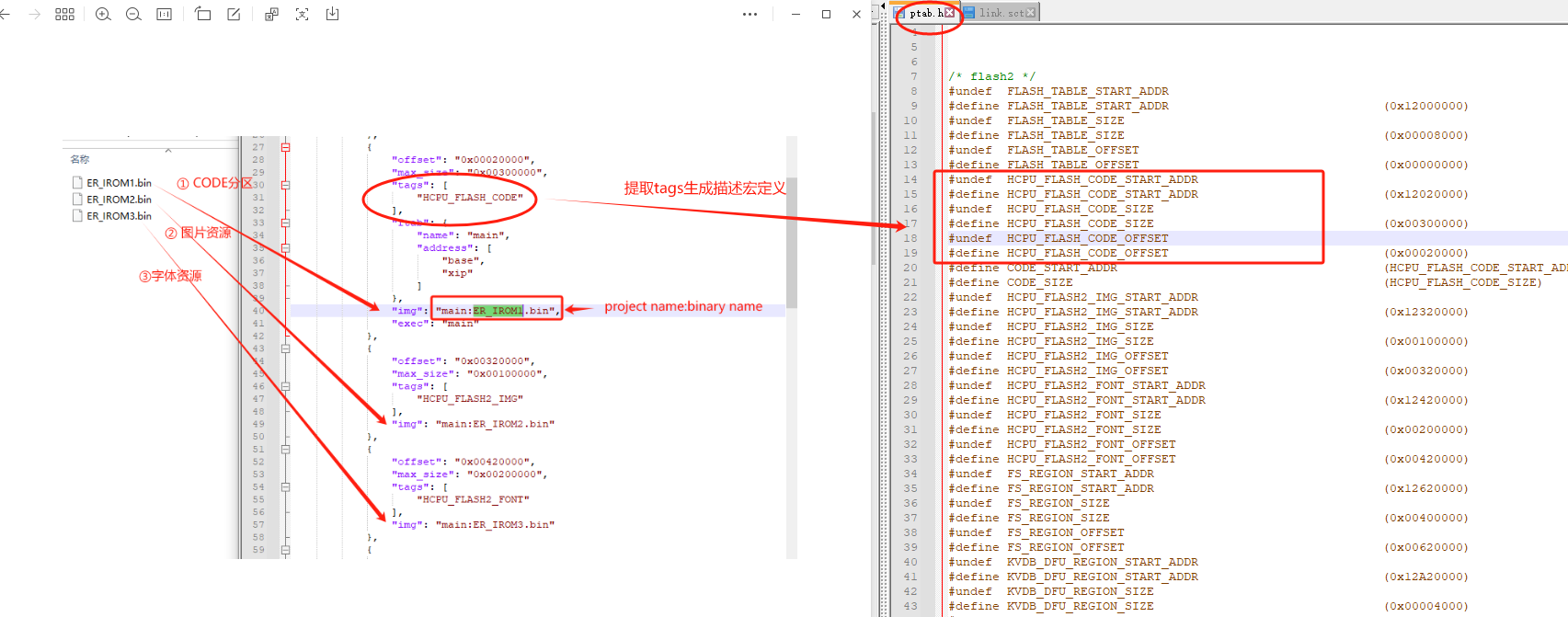

Taking ‘example\multimedia\lvgl\watch\project\sf32lb52-lcd_n16r8_ccpu’ as an example, under this project configuration, will generate 3 binary files:
ER_IROM1.bin：CODE
ER_IROM2.bin：Image Resources
ER_IROM3.bin：Font Resources
Key configurations：
partition configuration(ptab.json)
link script configuration(.sct or .lds)
link.sct
; CODE/ER_IROM1 LR_IROM1 CODE_START_ADDR CODE_SIZE { ; load region size_region ER_IROM1 CODE_START_ADDR CODE_SIZE { ; load address = execution address *.o (RESET, +First) *(InRoot$$Sections) .ANY (+RO) *(FSymTab) *.o (.rodata.*) } ; Image resource/ER_IROM2 LR_IROM2 HCPU_FLASH2_IMG_START_ADDR HCPU_FLASH2_IMG_SIZE { ; load region size_region ER_IROM2 HCPU_FLASH2_IMG_START_ADDR HCPU_FLASH2_IMG_SIZE { ; RW data *.o (.ROM1_IMG) *.o (.ROM3_IMG*.*) *.o (.ROM3_IMG*) } } ; Font/ER_IROM3 LR_IROM3 HCPU_FLASH2_FONT_START_ADDR HCPU_FLASH2_FONT_SIZE { ; load region size_region ER_IROM3 HCPU_FLASH2_FONT_START_ADDR HCPU_FLASH2_FONT_SIZE { ; RW data lvsf_font_*.o (.rodata.*) *.o (.SECTION_TTF*.*) } }
link.lds
/* Image resource/ER_IROM2 */ .rom2 : { *(.ROM1_IMG) *(.ROM3_IMG*.*) *(.ROM3_IMG*) } > ROM2 /* Font/ER_IROM3 */ .rom3 : { *lvsf_font_*(.rodata*) *(.SECTION_TTF*.*) } > ROM3
Add custom binary
For example, it is necessary to add a binary to store the RO data of ‘xxx.c’ and download it independently.
Refer to CODE, Resource binary separation, complete step by step：
Add a new partition(ptab.json)：
{ "offset": "0x00420000", "max_size": "0x00200000", "tags": [ "HCPU_FLASH2_FONT" ], "img": "main:ER_IROM3.bin" }, /* Add a partition and specify the starting address, size, and other information. * #undef HCPU_FUNC_START_ADDR * #define HCPU_FUNC_START_ADDR (0x12420000) * #undef HCPU_FUNC_SIZE * #define HCPU_FUNC_SIZE (0x00200000) * #undef HCPU_FUNC_OFFSET * #define HCPU_FUNC_OFFSET (0x00000000) */ { "offset": "0x00620000", "max_size": "0x00200000", "tags": [ "HCPU_FUNC" ], "img": "main:ER_IROM4.bin" },
link script configuration(.sct or.lds)：
Add a new region to storexxx.o (+RO)data.（rules can be modified as needed）：link.sct
LR_IROM3 HCPU_FLASH2_FONT_START_ADDR HCPU_FLASH2_FONT_SIZE { ; load region size_region ER_IROM3 HCPU_FLASH2_FONT_START_ADDR HCPU_FLASH2_FONT_SIZE { ; RW data lvsf_font_*.o (.rodata.*) *.o (.SECTION_TTF*.*) } } ; IROM4, specify which part data will store here LR_IROM4 HCPU_FUNC_START_ADDR HCPU_FUNC_SIZE { ; load region size_region ER_IROM4 HCPU_FUNC_START_ADDR HCPU_FUNC_SIZE { ; RW data xxx.o (+RO) } }
link.lds
... ... __ROM3_BASE = HCPU_FLASH2_FONT_START_ADDR; __ROM3_SIZE = HCPU_FLASH2_FONT_SIZE; /* ROM4 BASE/SIZE */ __ROM4_BASE = HCPU_FUNC_START_ADDR; __ROM4_SIZE = HCPU_FUNC_SIZE; /* *-------------------- <<< end of configuration section >>> ------------------- */ MEMORY { ... ... /* ROM 4*/ ROM4 (rx): ORIGIN = __ROM4_BASE, LENGTH = __ROM4_SIZE } ... ... .rom3 : { *lvsf_font_*(.rodata*) *(.SECTION_TTF*.*) } > ROM3 /* ROM4 , specify which part data will store here */ .rom4 : { *xxx.o(.rodata*) } > ROM4
Add custom img
For example, adding a partition for downloading pre packaged binary files (such as third-party or other pre packaged ones)：
partition configuration(ptab.json)
{ "offset": "0x00640000", "max_size": "0x00400000", "img": "ext_bin", "tags": [ "EXT_BIN" ] },
AddCustomImg(Sconstruct of this project)# Add custom image bin. `bin` specifies the path of the target binary. AddCustomImg("ext_bin",bin=["../ext_bin.bin"]) # Generate download .bat script GenDownloadScript(env)
Compile and you can see that it already includes the newly added custom img binary in download script.
