TSEN Example

Source code path: example/hal/tsen

Supported Platforms

• sf32lb52-lcd_n16r8

• sf32lb58-lcd_n16r64n4

Overview

Used to represent the “Temperature Sensor” hardware module. Specifically, TSEN is an integrated temperature sensor designed to measure on-chip temperature, helping to implement temperature monitoring and temperature-related system functions.

Example Usage

Compilation and Programming

scons --board=sf32lb52-lcd_n16r8 -j8

Run build_sf32lb52-lcd_n16r8_hcpu\uart_download.bat, select the port as prompted for download:

build_sf32lb52-lcd_n16r8_hcpu\uart_download.bat

Uart Download

please input the serial port num:5

For detailed steps on compilation and download, please refer to the relevant introduction in Getting Started Guide.

Methods for Using TSEN

The following are general steps for using TSEN:

Initialize TSEN:

The initialization function internally enables TSEN and starts temperature measurement:

 HAL_TSEN_Init(TSEN_HandleTypeDef *htsen)

Read Temperature Data:

Method 1: Synchronous Reading

temperature = HAL_TSEN_Read(&TsenHandle);

Method 2: Asynchronous Reading (Interrupt)

HAL_TSEN_Read_IT(&TsenHandle)

Interrupt Function Content

void TSEN_IRQHandler(void)
{

    printf("IRQ Fired\n");
    HAL_TSEN_IRQHandler(&TsenHandle);
}

__HAL_ROM_USED void HAL_TSEN_IRQHandler(TSEN_HandleTypeDef *htsen)
{
    htsen->Instance->TSEN_IRQ |= TSEN_TSEN_IRQ_TSEN_ICR;
    htsen->temperature = HAL_TSEN_Data(htsen);
    HAL_TSEN_Disable(htsen);
    NVIC_DisableIRQ(TSEN_IRQn);
}

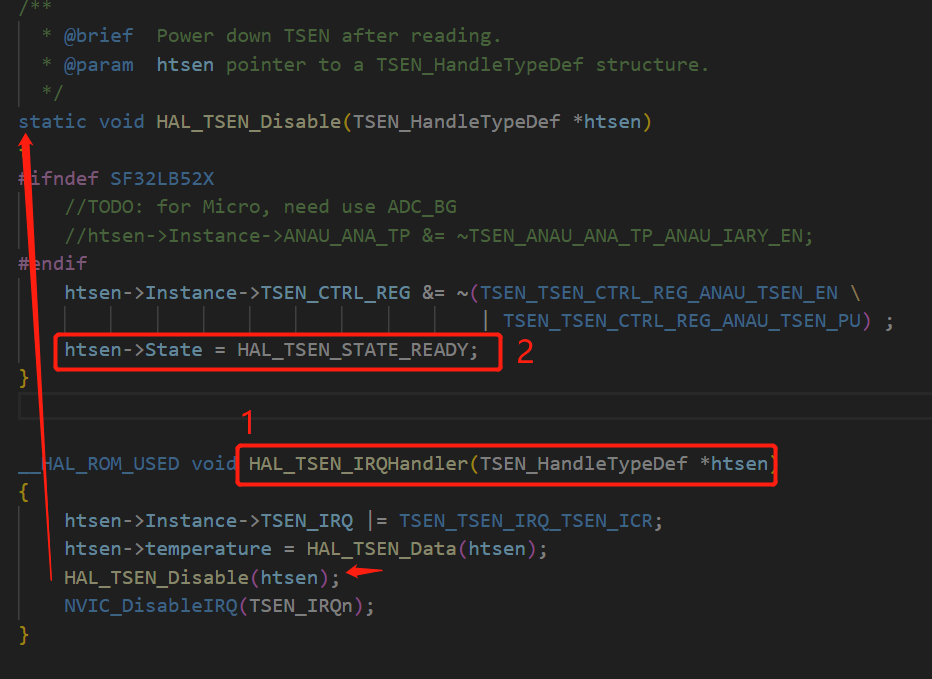

Interrupt Function Content Jump Changes State Value

In the interrupt method, use while (HAL_TSEN_GetState(&TsenHandle) != HAL_TSEN_STATE_READY) to monitor whether new data is generated

Code Section

static TSEN_HandleTypeDef   TsenHandle;

void TSEN_IRQHandler(void)
{

    printf("IRQ Fired\n");
    HAL_TSEN_IRQHandler(&TsenHandle);
}



static void testcase(void)
{
    // HAL_StatusTypeDef   status;
    int temperature;

    /*##-1- Initialize TSEN peripheral #######################################*/
    TsenHandle.Instance = hwp_tsen;
    if (HAL_TSEN_Init(&TsenHandle) == HAL_OK)
    {
        temperature = HAL_TSEN_Read(&TsenHandle);                                   /* Read synchronized*/
        printf("Sync: Current temperature is %d degree\n", temperature);

        HAL_NVIC_SetPriority(TSEN_IRQn, 5, 0);                                      /* Set interrupt priority*/
        if (HAL_TSEN_Read_IT(&TsenHandle) == HAL_TSEN_STATE_BUSY)                   /* Read Async, interrupt will be enabled*/
        {
            printf("state1:%d\n",TsenHandle.State);
            while (HAL_TSEN_GetState(&TsenHandle) != HAL_TSEN_STATE_READY);
        }
        printf("state2:%d\n",TsenHandle.State);
        printf("Async: Current temperature is %d degree\n", TsenHandle.temperature);
    }
}

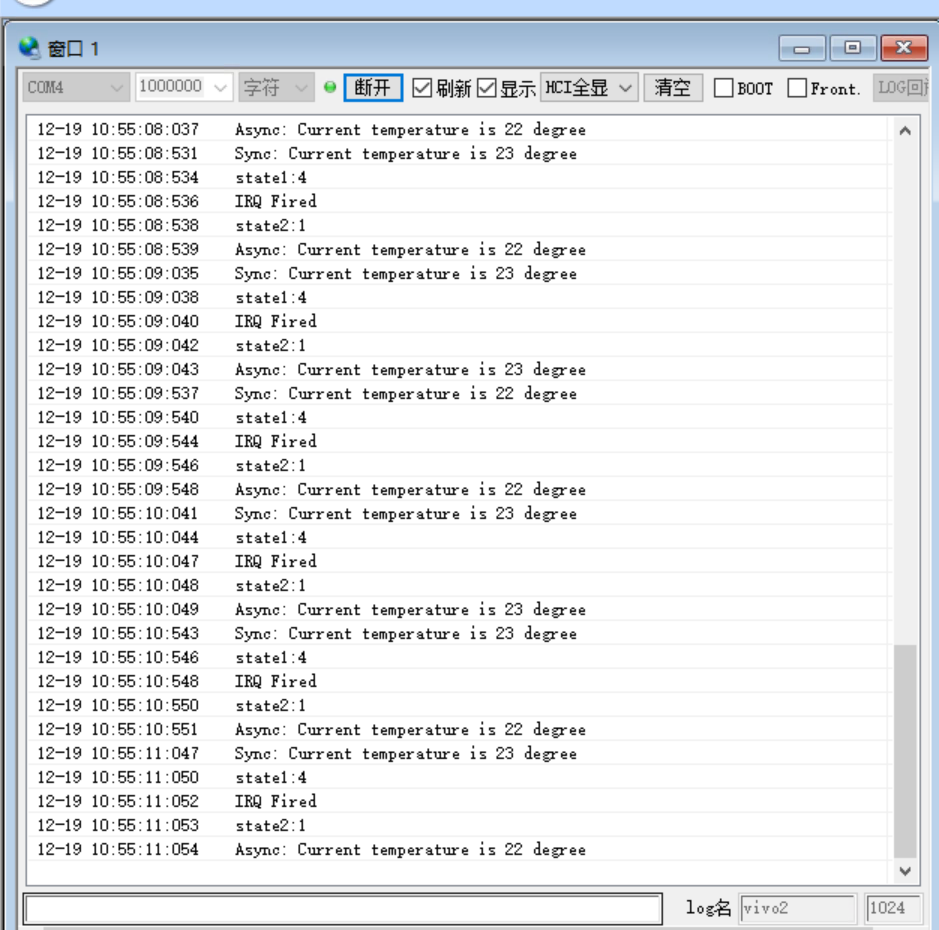

Example Output Results Display:

Start tsen demo!
Sync: Current temperature is 19 degree
state1:4
IRQ Fired
state2:1
Async: Current temperature is 19 degree

Exception Diagnosis

If the expected log temperature changes do not appear, troubleshooting can be performed from the following aspects:

• Whether hardware connections are normal

• Whether interrupt handling functions are normal

• Whether state value changes to HAL_TSEN_STATE_READY
