FinSH

Supported Platforms

The example can run on the following development boards.

sf32lb52-lcd_n16r8
sf32lb58-lcd_n16r64n4

Overview

FinSH is RT-Thread’s command line component (shell), providing a set of operational interfaces for users to call from the command line, mainly used for debugging or viewing system information. In addition to FinSH’s built-in commands, FinSH also provides multiple macro interfaces to export custom commands, and exported commands can be executed directly in FinSH.

FinSH Function Configuration

FinSH functionality can be trimmed, with macro configuration options defined in the rtconfig.h file. The specific configuration items are shown in the table below.

Macro Definition	Value Type	Description	Default Value
#define RT_USING_FINSH	None	Enable FinSH	Enabled
#define FINSH_THREAD_NAME	String	FinSH thread name	“tshell”
define FINSH_USING_HISTORY	None	Enable history recall function	Enabled
#define FINSH_HISTORY_LINES	Integer	Number of history command lines that can be recalled	5
#define FINSH_USING_SYMTAB	None	Enable symbol table usage in FinSH	Enabled
#define FINSH_USING_DESCRIPTION	None	Add a description to each FinSH symbol	Enabled
#define FINSH_USING_MSH	None	Enable msh mode	Enabled
#define FINSH_ARG_MAX	Integer	Maximum number of input parameters	10
#define FINSH_USING_AUTH	None	Enable permission verification	Disabled
#define FINSH_DEFAULT_PASSWORD	String	Permission verification password	Disabled

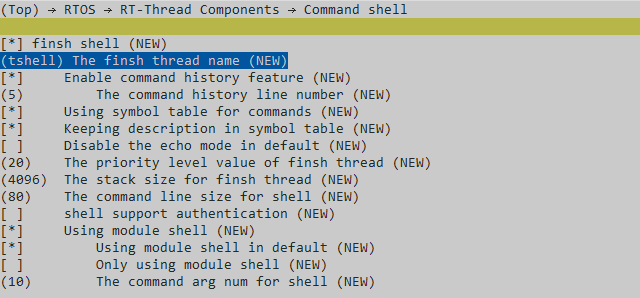

The reference configuration example in rtconfig.h is shown below, and can be configured according to actual functional requirements. Enter menuconfig in the compilation interface and configure under RTOS → RT-Thread Components → Command shell.

/* Enable FinSH */
#define RT_USING_FINSH

/* Define thread name as tshell */
#define FINSH_THREAD_NAME "tshell"

/* Enable history commands */
#define FINSH_USING_HISTORY
/* Record 5 lines of history commands */
#define FINSH_HISTORY_LINES 5

/* Enable Tab key usage */
#define FINSH_USING_SYMTAB
/* Enable description function */
#define FINSH_USING_DESCRIPTION

/* Define FinSH thread priority as 20 */
#define FINSH_THREAD_PRIORITY 20
/* Define FinSH thread stack size as 4KB */
#define FINSH_THREAD_STACK_SIZE 4096
/* Define command character length as 80 bytes */
#define FINSH_CMD_SIZE 80

/* Enable msh function */
#define FINSH_USING_MSH
/* Maximum number of input parameters is 10 */
#define FINSH_ARG_MAX 10

FinSH Custom Command Application Examples

msh Command Example without Parameters

Export a custom command to msh, example code is shown below. The code creates a myhello function, then uses the MSH_CMD_EXPORT command to export the myhello function to the FinSH command list.

#include <rtthread.h>

void myhello(void)
{
    rt_kprintf("hello RT-Thread!\n");
}

MSH_CMD_EXPORT(myhello , say hello to RT-Thread);

Run the hello command, the result is as follows:

msh />hello
hello RT_Thread!
msh />

msh Command Example with Parameters

Export a custom command with parameters to FinSH, example code is shown below. The code creates an atcmd() function, then uses the MSH_CMD_EXPORT command to export the atcmd() function to the msh command list.

#include <rtthread.h>

static void atcmd(int argc, char**argv)
{
    if (argc < 2)
    {
        rt_kprintf("Please input'atcmd <server|client>'\n");
        return;
    }

    if (!rt_strcmp(argv[1], "server"))
    {
        rt_kprintf("AT server!\n");
    }
    else if (!rt_strcmp(argv[1], "client"))
    {
        rt_kprintf("AT client!\n");
    }
    else
    {
        rt_kprintf("Please input'atcmd <server|client>'\n");
    }
}

MSH_CMD_EXPORT(atcmd, atcmd sample: atcmd <server|client>);

Run the atcmd command, the result is as follows:

msh />atcmd
Please input 'atcmd <server|client>'
msh />

Run the atcmd server command, the result is as follows:

msh />atcmd server
AT server!
msh />

Run the atcmd client command, the result is as follows:

msh />atcmd client
AT client!
msh />

Note: An infinite loop must be added in the main function to enter the msh command.

int main(void)
{
    while (1)
    {
      rt_thread_mdelay(5000);
    }
    return 0;
}
