FatFs NOR Example

Usage Guide

This example demonstrates FatFs file system functionality using FAT format. Common file commands can be called in UART console, such as:

df               - Disk free
mountfs          - Mount device to file system
mkfs             - Format disk with file system
mkdir            - Create the DIRECTORY.
pwd              - Print the name of the current working directory.
cd               - Change the shell working directory.
rm               - Remove(unlink) the FILE(s).
cat              - Concatenate FILE(s)
mv               - Rename SOURCE to DEST.
cp               - Copy SOURCE to DEST.
ls               - List information about the FILEs.

File System Packaging

The default compilation script does not download file system partition image files, so if the mount fails during the first program run, it will automatically format the partition. For specific implementation, see the mnt_init function in main.c. The SDK also provides functionality to package files in specified directories and generate file system image files. You can uncomment the following code in SConstruct. This code packages files in the disk directory during compilation and generates the fs_root.bin file in the build directory. If the partition table in ptab.json defines a partition with img attribute as fs_root, the download script will simultaneously download that bin file.

# fs_bin=FileSystemBuild( "../disk", env)
# AddCustomImg("fs_root",bin=[fs_bin])

Example Usage Instructions

Hardware Requirements

To run the example, you need to have a development board that supports this example
A USB data cable capable of data transmission

menuconfig Configuration

 //Execute command
 menuconfig --board=em-lb561

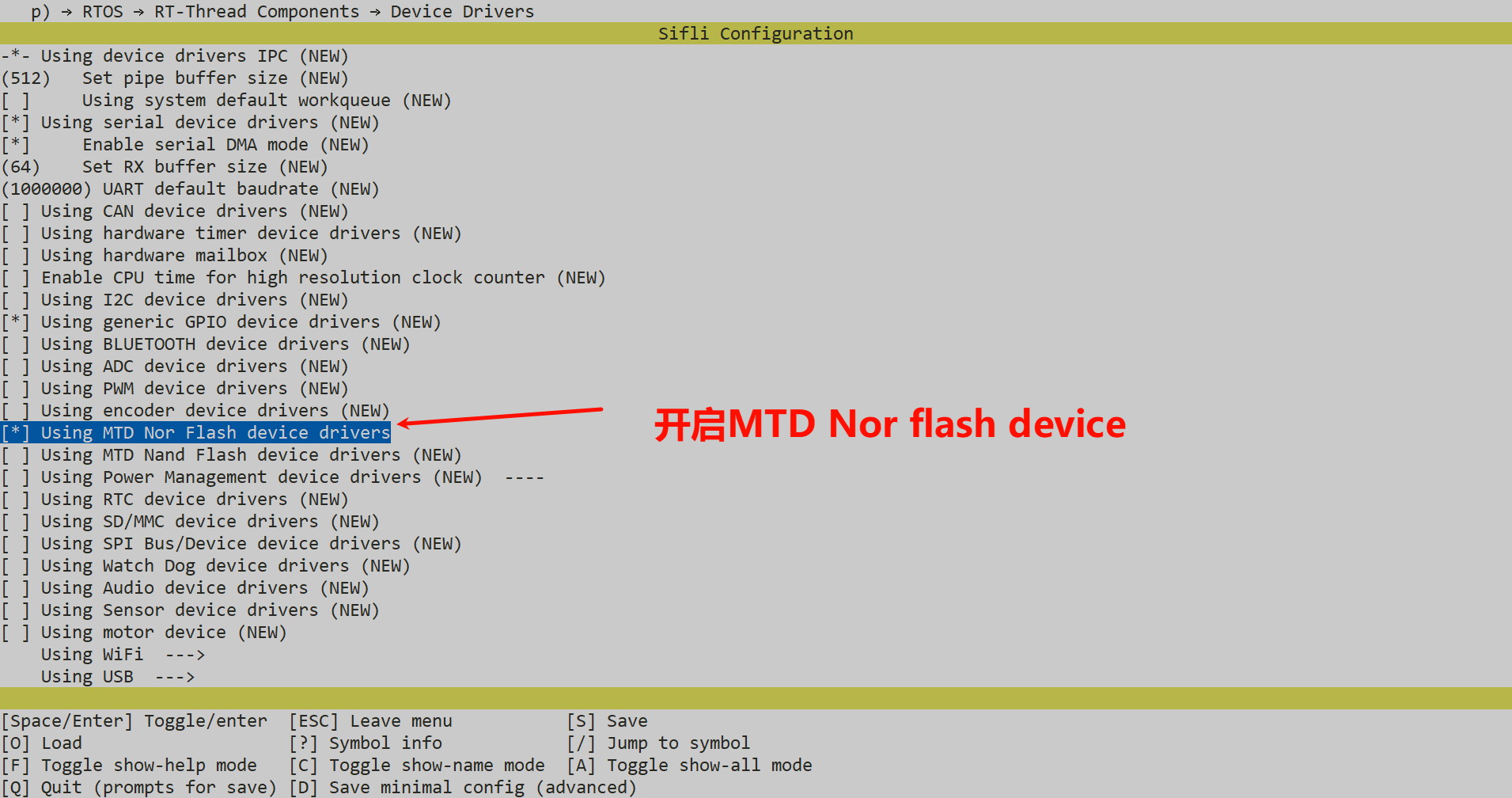

First, you need to enable MTD Nor Flash device in menuconfig

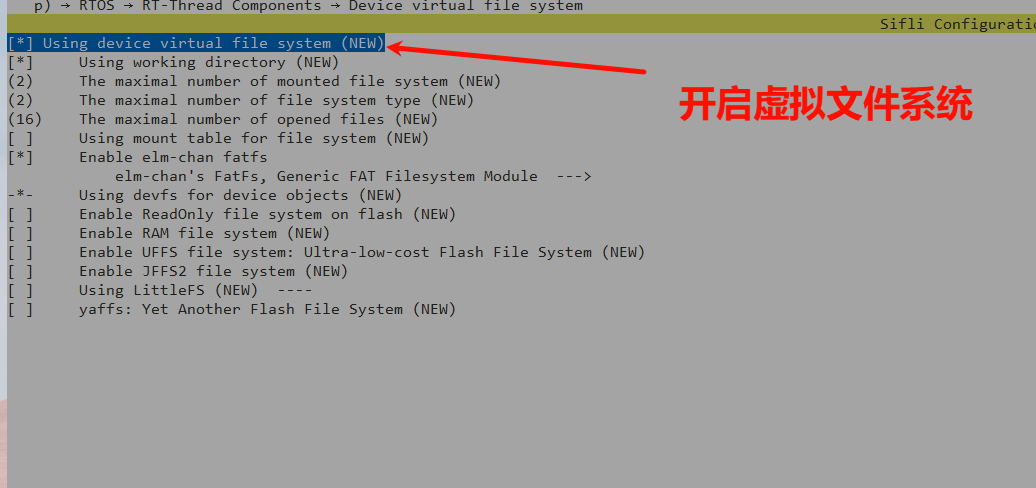

alt text 2. Use device virtual file system

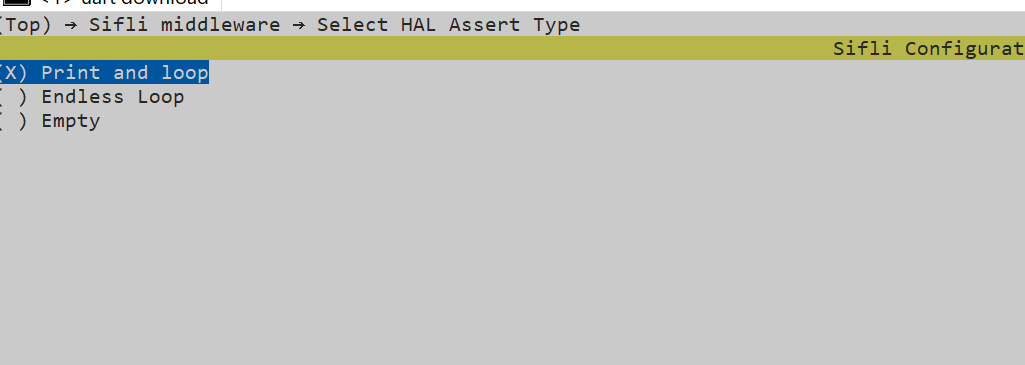

alt text 3. Select HAL Assert type

alt text

Project Description

Compilation method: Enter project directory and execute command scons --board=<board_name> -j8, where board_name is the board name. For example, to compile eh-lb561 board, the complete command is scons --board=eh-lb561 -j8. The compiled image file is stored in HCPU’s build_<board_name> directory. For common project usage, refer to <>
Download method: Enter project directory and execute command build_<board_name>_hcpu\download.bat(uart_download.bat), where board_name is the board name. If download has uart prefix, it uses serial port for program burning; without it, it uses jlink burning (depending on whether the board model supports jlink burning). For example, compiling eh-lb561 board, the complete command is build_en-lb561_hcpu\download.bat

Example Output Results Display

The following results show the log after the example runs on the development board. If you cannot see these logs, it means the example did not run successfully as expected and requires troubleshooting.

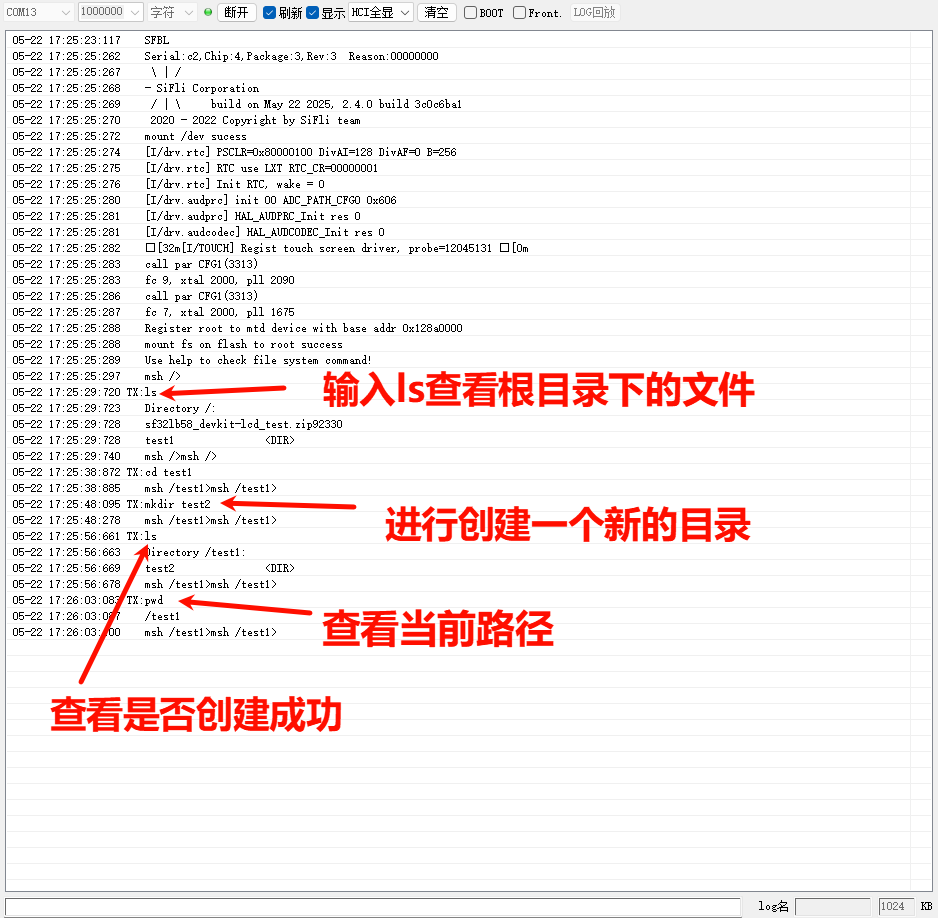

mount fs on flash root success//Indicates successful file system mounting

Send ls through serial port to view files in root directory
Input mkdir test2 to create test2 folder (directory)
Input ls again to see if test2 folder (directory) was created successfully
Input pwd to view current working path

Troubleshooting

If the log does not show expected log and phenomena, troubleshooting can be done from the following aspects:

Whether hardware connection is normal
Check if USB cable has data transmission capability
Whether the above menuconfig is configured correctly
