Dump Crash Debugging Guide

This section describes how to export the crash scene and restore it after a crash occurs. The primary tool used is Trace32.

Dump Memory Method

Export Memory Scene

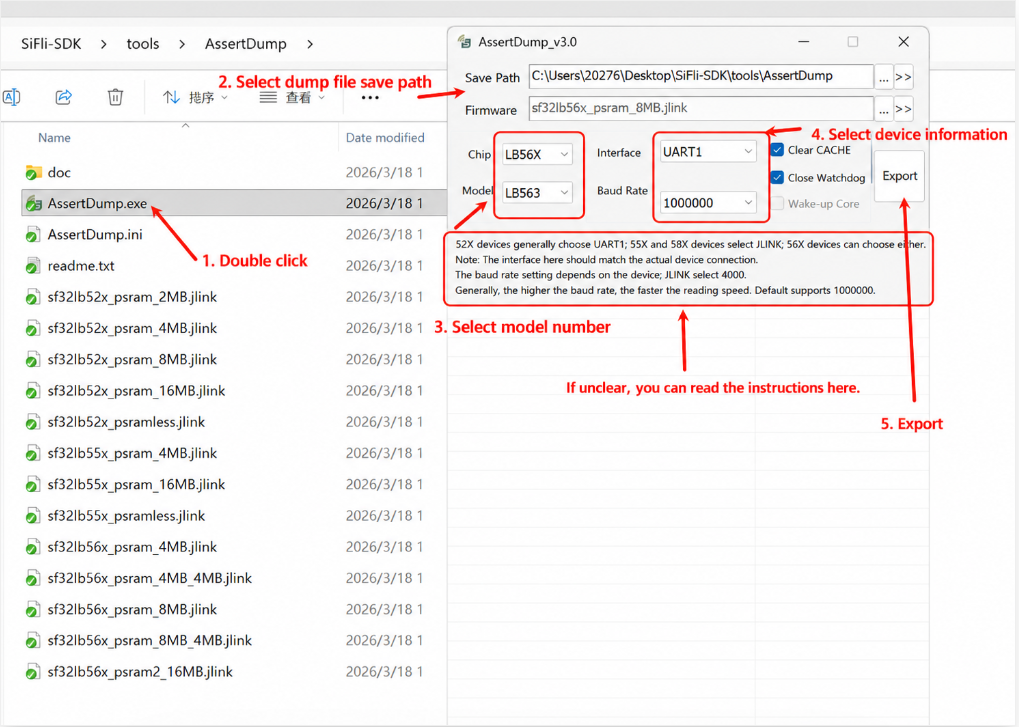

Run AssertDump.exe in the SIFLI-SDK\tools\AssertDump directory. Follow the prompts to select the save path, memory configuration, chip model, and export method, then click Export to save the memory as bin files.

5256dump1

After successful export, place all generated *.bin, *.txt files and the compiled *.axf file in the same directory at the save path, then use Trace32 for analysis.

Trace32 Restoration and Analysis

Restoring HCPU Crash Scene with Trace32

  1. Following the export method described above, place the exported memory files and the corresponding axf in the same directory. For more detailed crash scene saving methods, see Save Crash Scene Method.

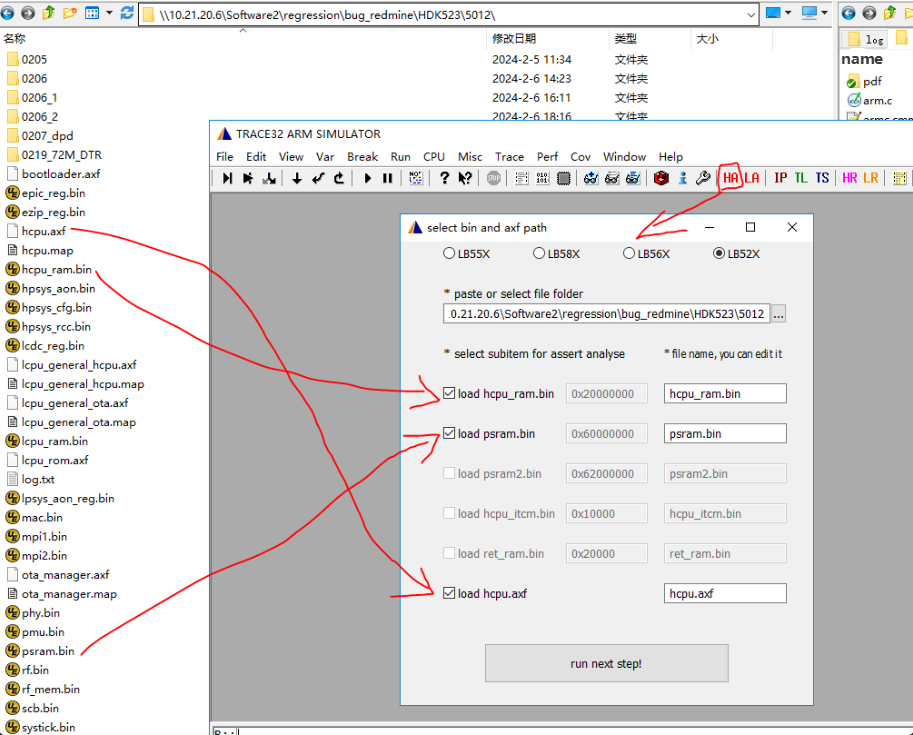

  2. Run the tool SIFLI-SDK/tools/crash_dump_analyser/simarm/t32marm.exe. As shown below:

  1. After opening the tool, select HCPU assertion (HA) to restore. If certain bin files do not exist (e.g., no PSRAM2), uncheck the corresponding files.

alt text

  1. Click “run_next_step” to load. After loading is complete, the crash scene information will be displayed:

alt text

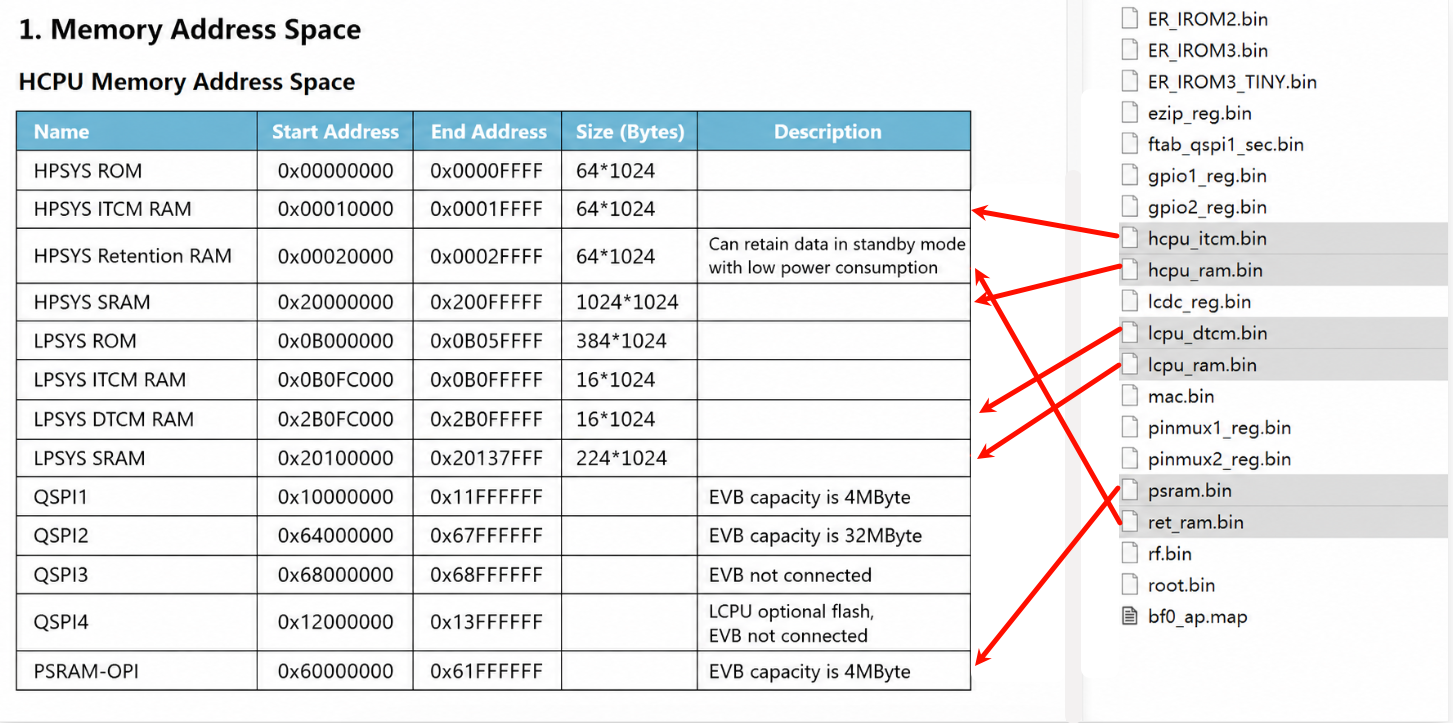

  1. If the memory-to-address mapping is established successfully, you can refer to the chip manual’s Memory address space to view the scene. If restoration fails, check whether the bin files are valid, or modify the jlink/dump script to add or remove address spaces to dump (e.g., sf32lb52x_uart.jlink).

alt text

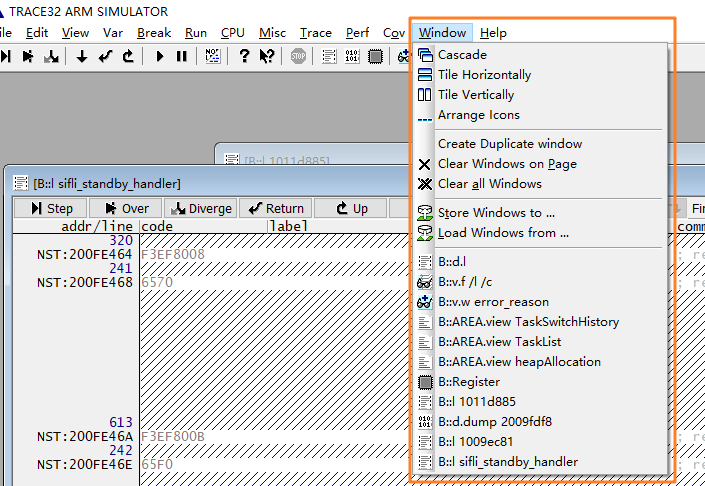

  1. You can switch between different display windows in the Window menu.

alt text

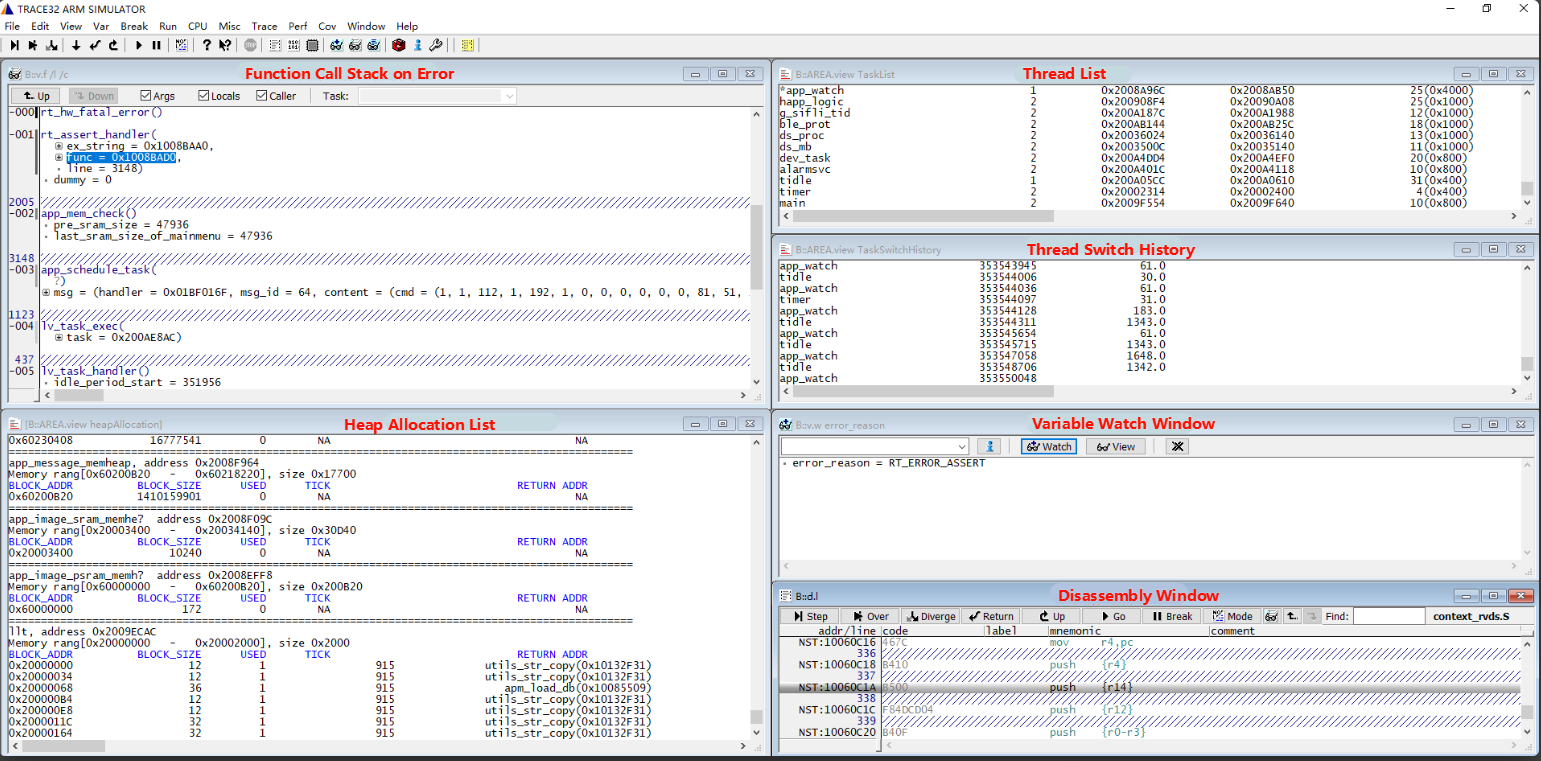

The B::v.f /l /c window shows the function call stack at the crash scene.

The heapAllocation window displays the allocation status of all heap pools in the system, including the system heap and each memheap_pool:

  • system heap: The pool used by rt_malloc and lv_mem_alloc

  • Each memheap_pool: Created by rt_memheap_init, allocated/freed using rt_memheap_alloc / rt_memheap_free

Allocation information field meanings:

BLOCK_ADDR: Starting address of the allocated memory block, including the management header
BLOCK_SIZE: Requested memory size, excluding the management header length
USED: Whether allocated, 1 means allocated, 0 means free
TICK: Allocation time, in OS ticks (typically 1 ms)
RETURN ADDR: Caller address

Handling When the Scene Does Not Show the Exception Stack

If the crash call stack cannot be displayed, it may be because the registers were not saved in the dump or were saved incorrectly. Try the following methods:

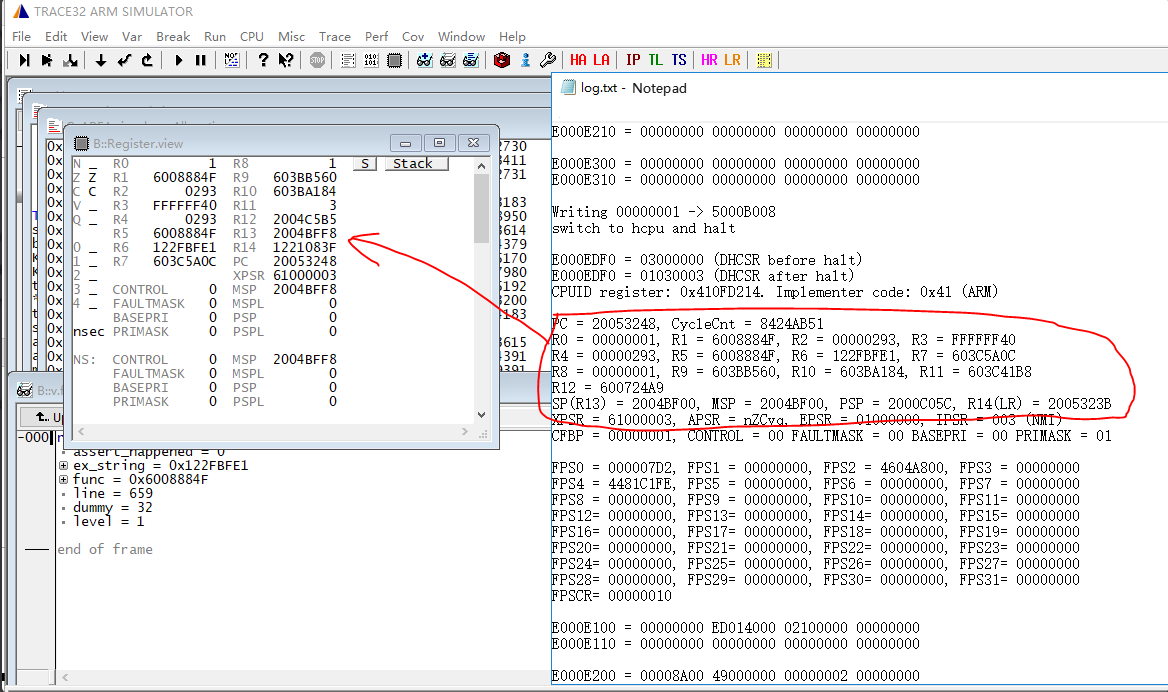

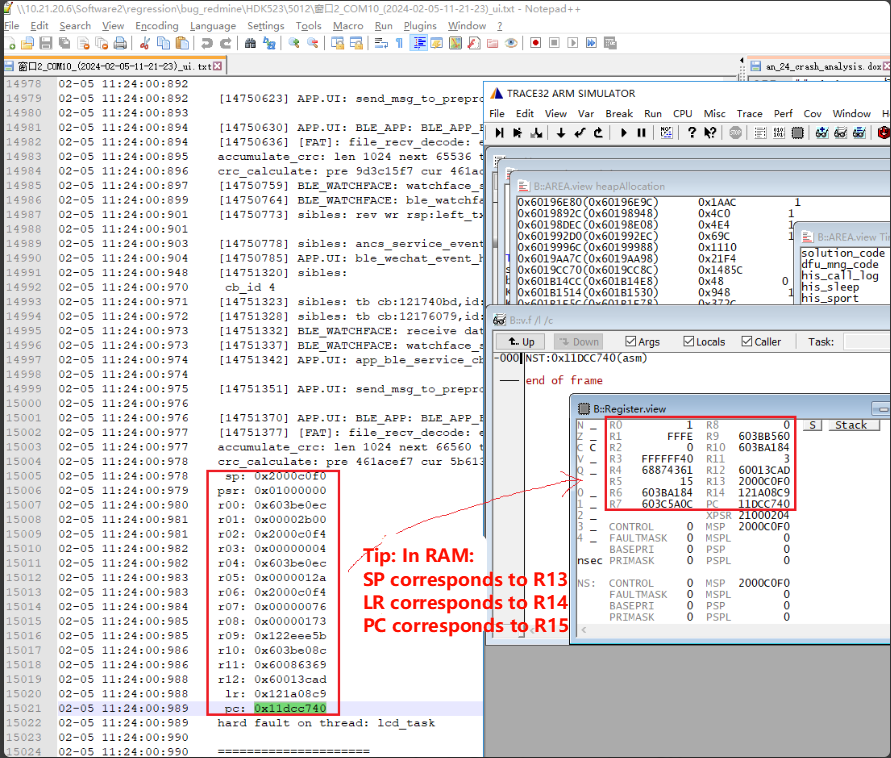

  1. Load the scene registers from J-Link halt log information (HR / HCPU Registers). Click the corresponding button, select the exported log.txt, and the tool will restore the HCPU registers from it into Trace32.

alt text

  1. Manually enter the 16 register values printed in the log into the Trace32 register window (ARM register correspondence: SP <-> R13, LR <-> R14, PC <-> R15).

For GCC-compiled binaries, you can try changing the PC to the same value as R14.

  1. When automatic scene restoration is unsuccessful, you can also manually restore based on the hardfault scene. Restore the interrupt function at the time the interrupt occurred (hardfault is also an interrupt) in the crash scene:

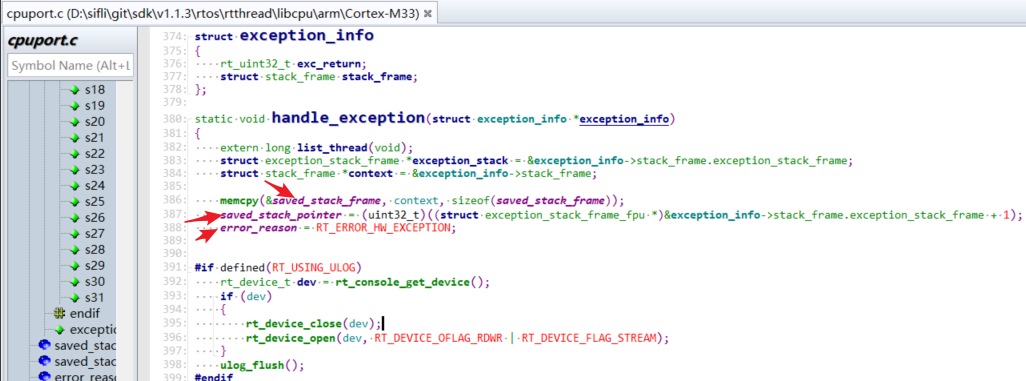

HardFault_Handler->rt_hw_hard_fault_exception->handle_exception

The function pushes registers R0-R4, R12, R14(LR), and PC onto the stack into the saved_stack_frame and saved_stack_pointer variables.

alt text

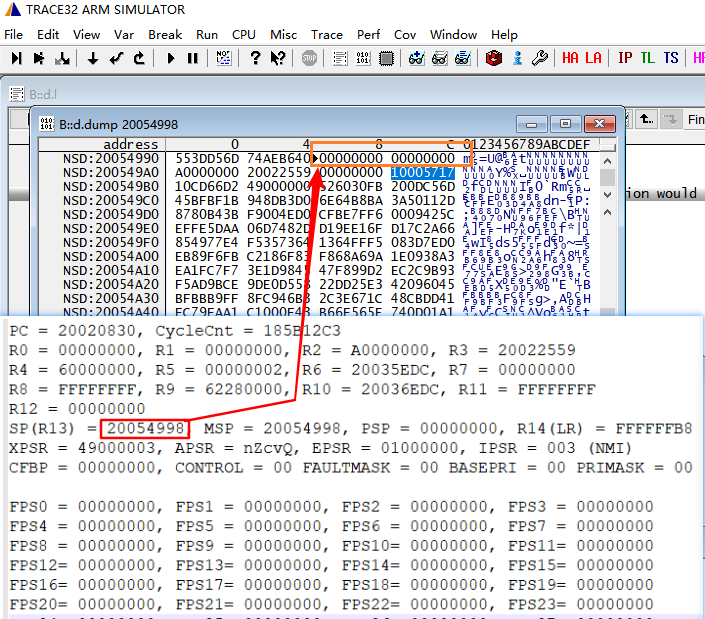

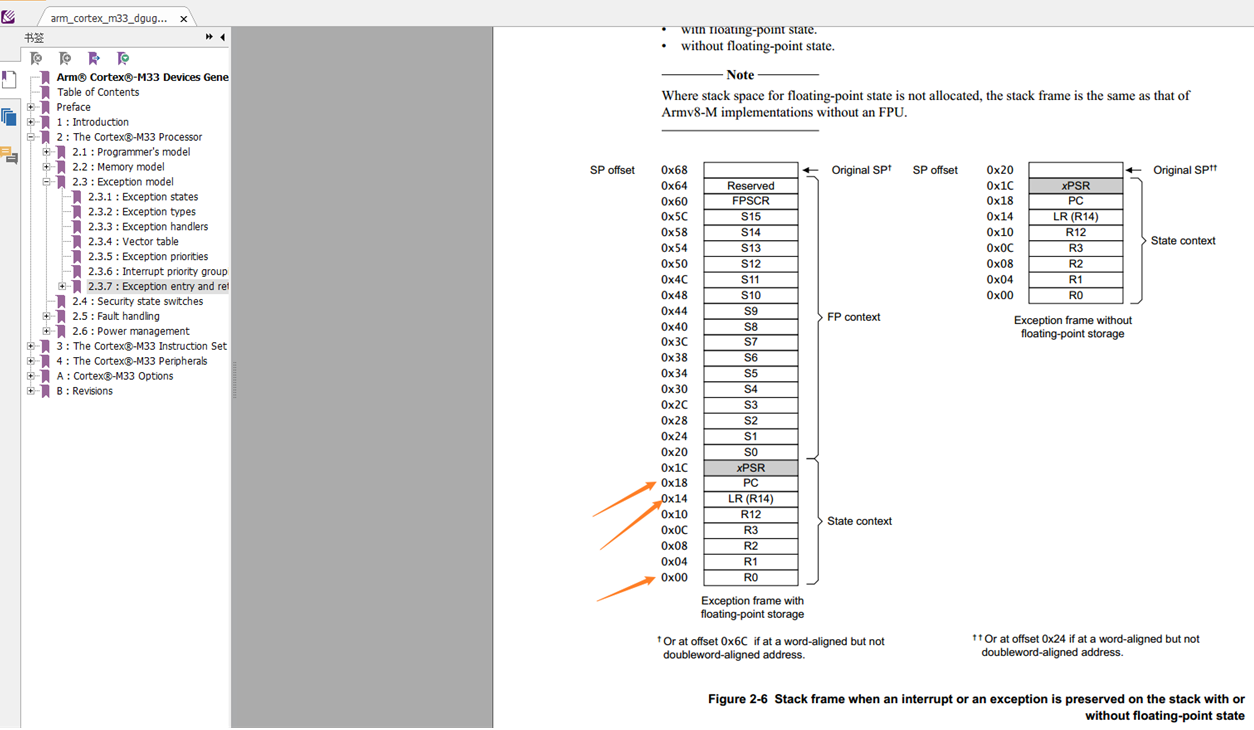

The pushed registers can be seen in figure 2 below. In the crash scene shown in figure 1, address 0x20054998 contains R0, address 0x200549AC contains LR, and address 0x200549B0 contains PC: 0x10CD6602.

  • Register PC: Stores the program PC pointer before the crash.

  • Register LR: Stores the program pointer to return to after execution completes.

  • Global variable saved_stack_pointer stores the base address of the pushed stack.

  • Global variable saved_stack_frame stores the pushed data.

alt text alt text

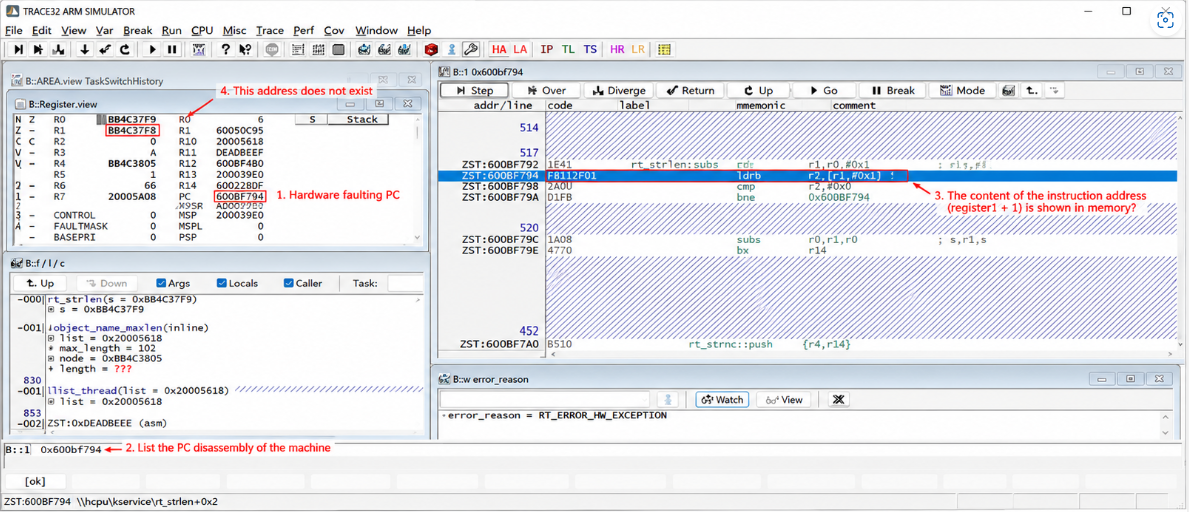

  1. In the case of a hardfault RT_ERROR_HW_EXCEPTION crash, pay special attention to the assembly instruction at the problematic PC, and consider whether an abnormal address or abnormal instruction occurred, as shown below:

alt text

Restoring LCPU Crash Scene with Trace32

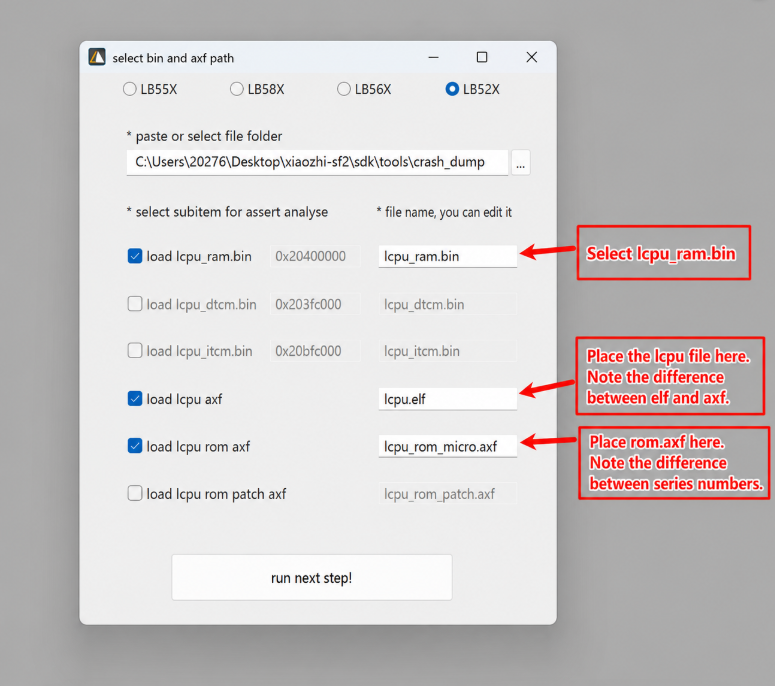

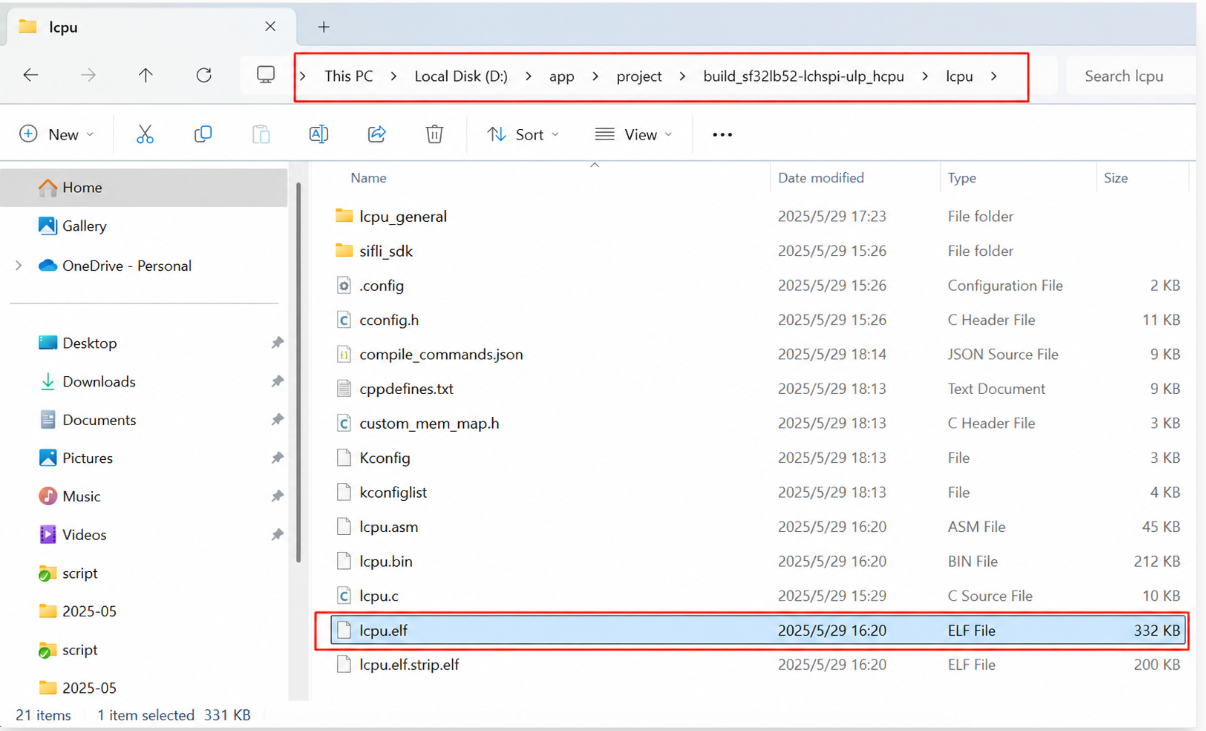

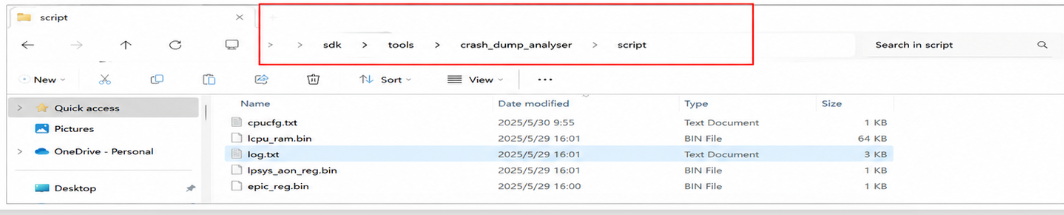

LCPU restoration is similar to HCPU. You need to copy lcpu.axf and the corresponding rom_axf file to the script directory:

Notes:

  • Keil-compiled LCPU files have the .axf extension, while GCC-compiled files have the .elf extension.

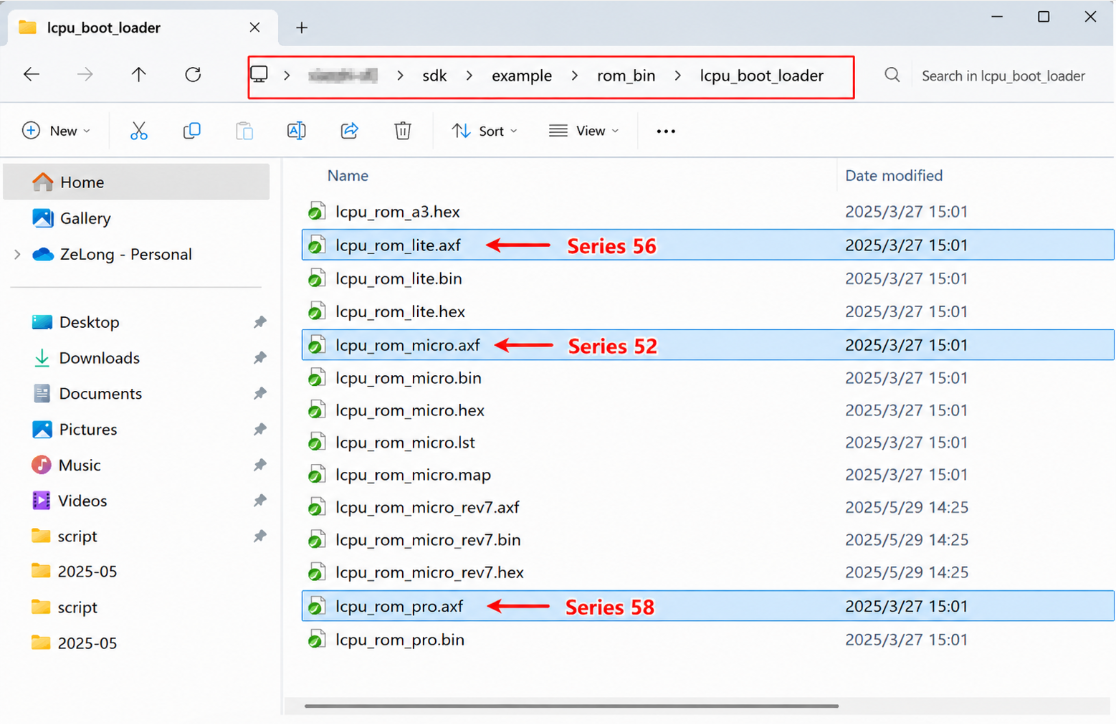

  • When selecting rom_axf, choose the correct file based on the board model (numeric series uses lcpu_rom_micro, letter series uses rev7).

alt text

alt text

Open Trace32 and select LA (LCPU assertion) to execute the corresponding configuration:

Trace32 Common Scripts and Commands

Common viewing commands:

  • L <addr>: e.g., L 0x10063c, view source code or disassembly at a PC address.

  • v.v *: Open the variable window, supports wildcard searching of global variables.

  • data.dump <addr>: View memory at an address.

  • frame /locals /caller: View the call stack and local variables.

  • In the console, type (struct rt_pm *)0x101fa2b9 to parse memory in struct format.

System state built-in scripts (run with do):

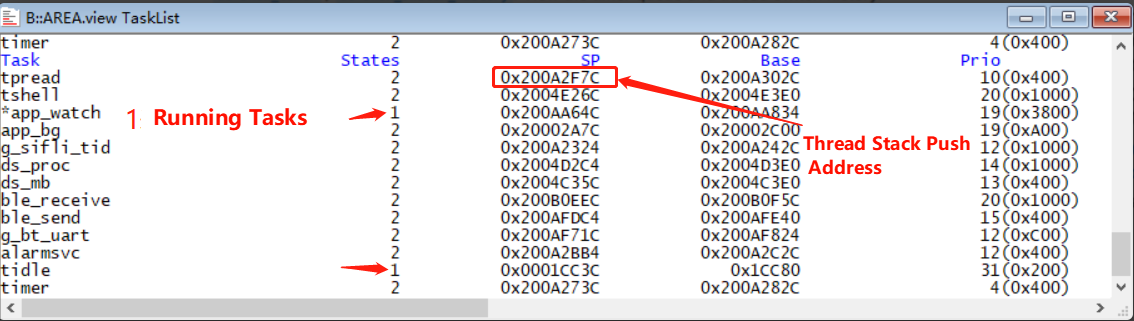

  • do show_tasks: Display all threads in the system with their status, stack address, and priority.

  • do switch_to 0x200A2F7C: Force context switch between different thread stacks.

  • do show_timer / do show_switch_history: View the timer queue and thread switch history.

Trace32 show tasks


Heap Analysis Example

The figure below shows a scene where a heap leak was detected: the callstack window shows the call stack at the assertion point, and the heapAllocation window’s system heap list shows memory blocks allocated by rt_malloc. RETURN ADDR is the function address that called rt_malloc, and TICK is the allocation time (rt_tick_get).

System heap management header structure: The first uint16 is a special marker 0x1EA0 — if modified, it indicates illegal overwriting. The second uint16 is the used flag: 1 means allocated, 0 means free, any other value means the memory entry is corrupted.

For example, the memory block at address 0x200A27EC was allocated by an instruction before rt_serial_open, with a requested size of 4108 bytes. The system heap management header length is 28 bytes, so the actual usable address is block_addr + 28.

When memory leaks occur, you can combine the caller address with the allocation time to locate the code that failed to free memory.
