coredump Example

Source path: example/system/coredump

Overview

  • This example demonstrates the process of saving crash information, and supports connecting to a phone via BLE to transfer the crash-scene data to the phone. After power-on, the device broadcasts a name in the form COREDUMP-xx-xx-xx-xx-xx-xx.

Supported Platforms

Verified on the following platforms:

  • sf32lb52-lcd_n16r8

  • sf32lb52-lcd_a128r16

Configuration and menuconfig

The example supports four mode combinations:

  1. Partition mode, minidump disabled

  2. Partition mode, minidump enabled

  3. File mode, minidump disabled

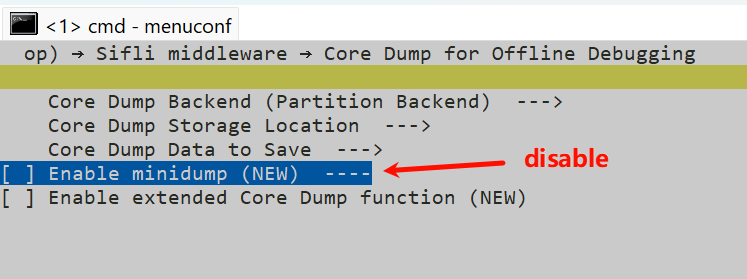

  4. File mode, minidump enabled The default is 1. Partition mode, minidump disabled. You can change the mode with the following configurations:

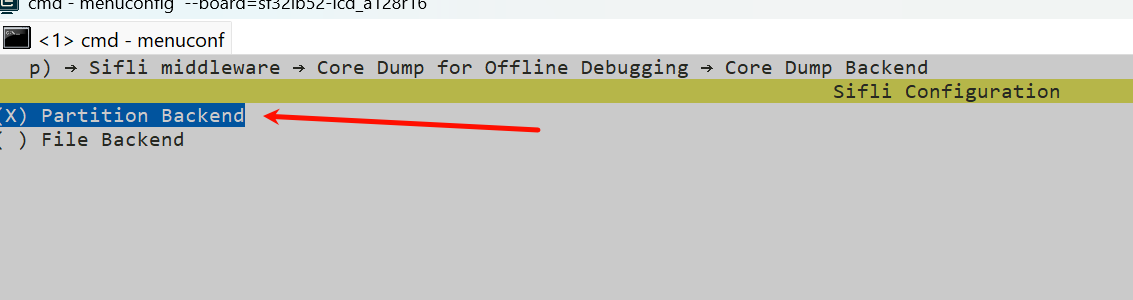

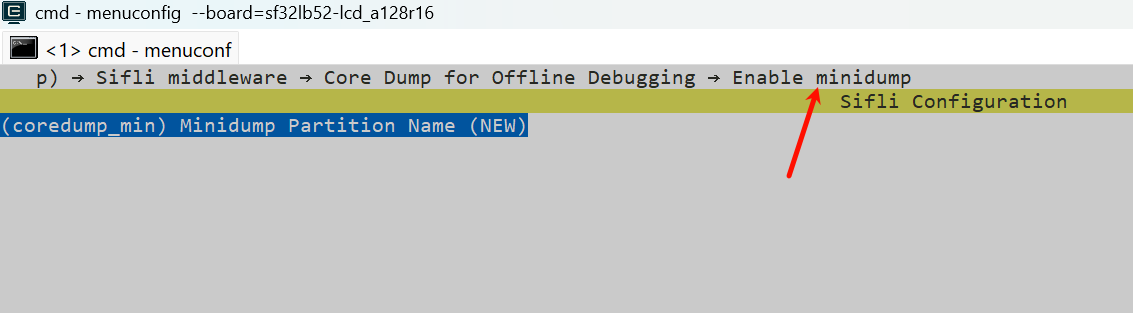

  1. Partition mode, minidump enabled alt text alt text

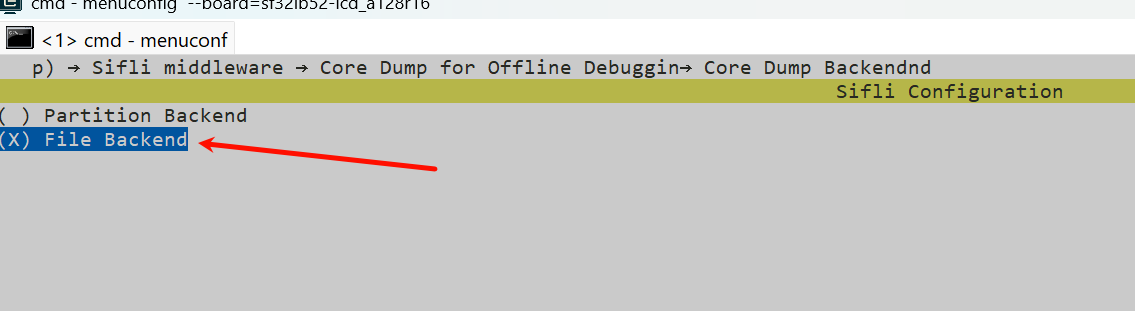

  2. File mode, minidump disabled alt text alt text

  3. File mode, minidump enabled alt text alt text

Build and Flash

Taking sf32lb52-lcd_n16r8 as an example, follow the steps below to build and flash.

scons --board=sf32lb52-lcd_n16r8

.\build_sf32lb52-lcd_n16r8_hcpu\uart_download.bat

Using the Example

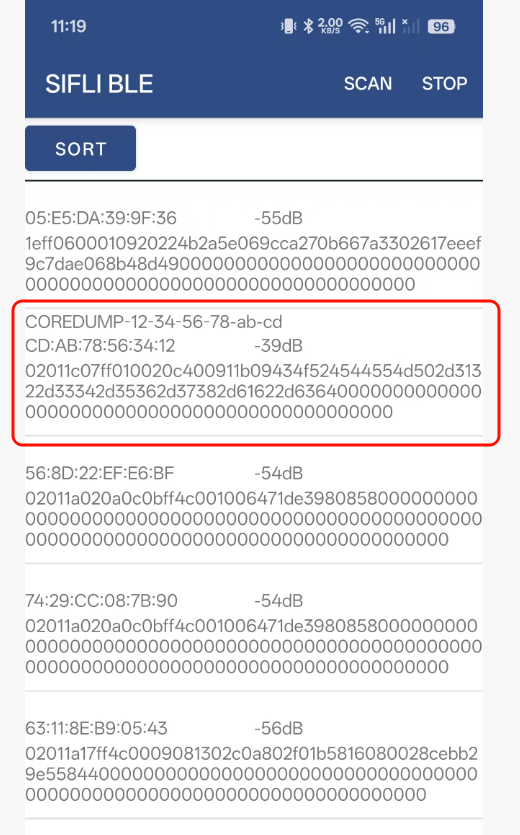

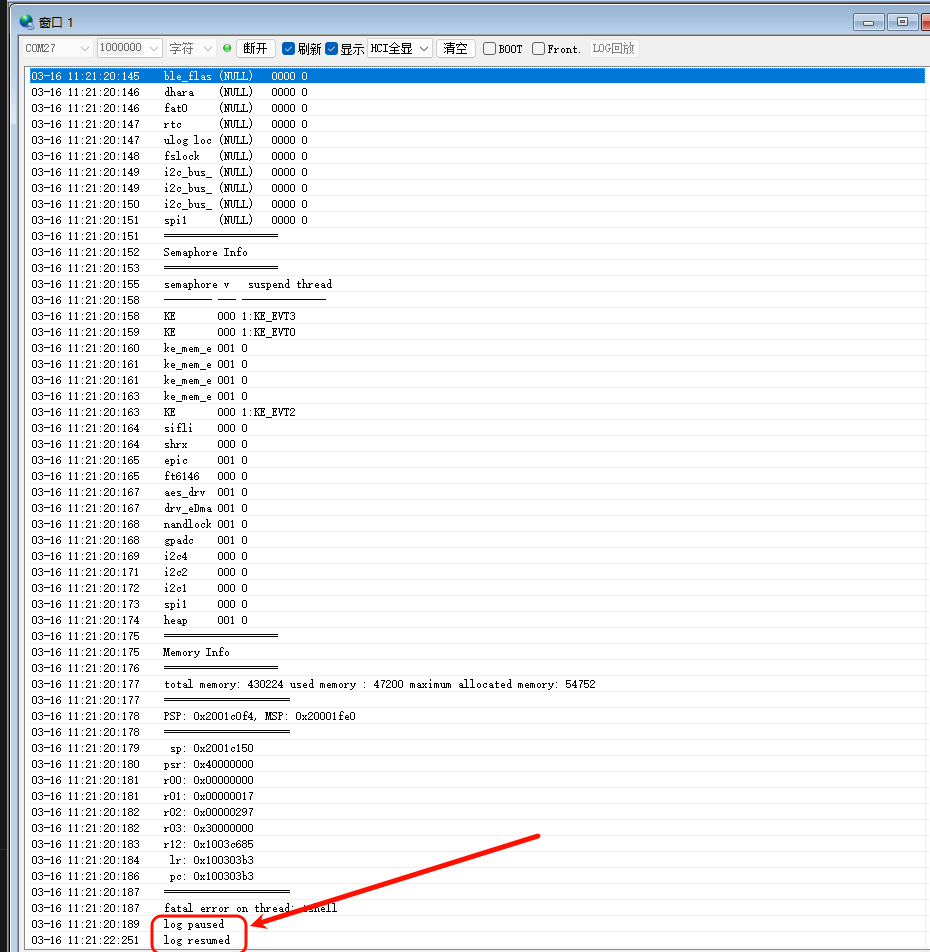

After the program powers on, when a crash occurs (a crash can be triggered manually via assert), a log like the following appears, indicating that the crash-scene data is being saved. alt text Reset the development board again, open the SiFli BLE app on your phone, find the Bluetooth device with a name in the form COREDUMP-xx-xx-xx-xx-xx-xx and connect to it, then export the crash-scene data through the phone app.

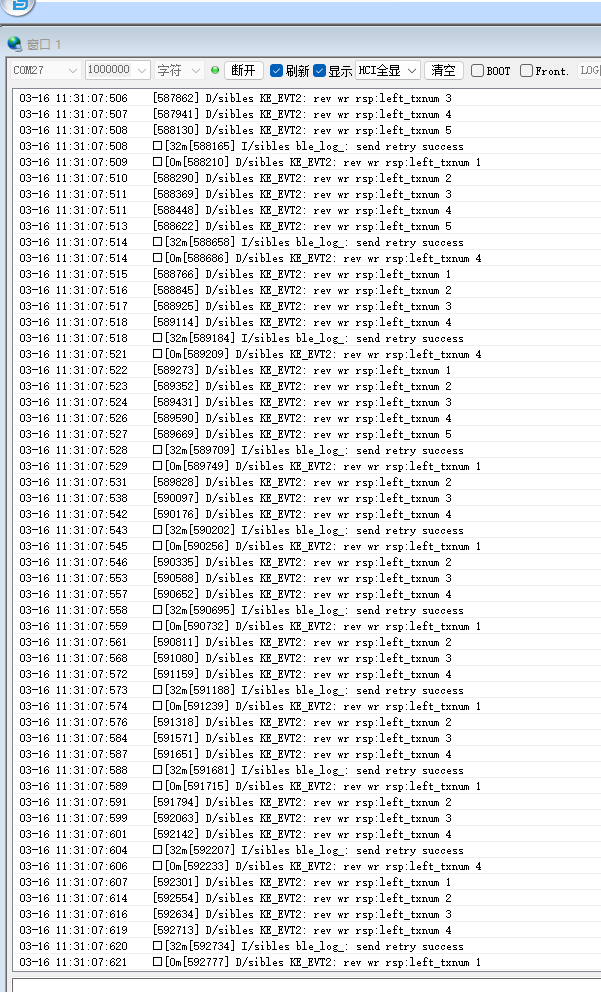

alt text During the export process, a large amount of corresponding logs will appear. alt text

Finally, a bin file is generated on the phone. You can send this file to a computer and use the Context2Mem.exe tool to convert the .bin file into a dump file. The Context2Mem.exe tool is located at SDK\tools\crash_dump_analyser\script.
