LVGL v8 gif (gif_anim)

SiFli SDK provides GIF animation playback capability on LVGL v8, composed of two headers:

lvsf_gif.h: the basic GIF widget (lv_sfgif_*), which provides GIF decoding and playback, cover display, pause/resume, zoom, and other controls.
lvsf_gif_anim.h: a lightweight gif_anim widget (lvsf_gif_anim_*) wrapped on top of the basic widget, which additionally provides a cover image, delayed start, display layer, and overall zoom.

It suits animated effects in all scenarios. The low-level lv_gif_dec_* decoding interfaces are called internally by the widget; application code should use the public lv_sfgif_* / lvsf_gif_anim_* interfaces.

Features

Decodes and plays GIF animation, supporting cover (first frame) image display.
Supports pause / resume playback and closing to release resources.
Supports delayed-start playback and a configurable frame interval.
The gif_anim widget supports aspect-ratio-preserving zoom, setting the display layer, and enabling/disabling background-color processing.
Supports GIF zoom (lv_sfgif_set_zoom, where 256 means the original size).

Use Cases

App startup/loading animations, charging animations, and page background animations.
Scenarios that need to show a cover image first and then play the GIF after a delay.
Interfaces that need to place the GIF in a foreground/background layer.

Supported Boards

Any platform supported by the general LVGL v8 examples, and any board from 55x onward (such as 58x, 56x, 52x).

Configuration and Initialization

The basic GIF widget and the gif_anim widget are provided by the gui_widgets component and are enabled as part of the LVGL v8 build:

#include "lvsf/gui_widgets/lvsf_gif.h"
#include "lvsf/gui_widgets/lvsf_gif_anim.h"

gif_anim layer enumeration (lvsf_gif_layer_t): LVSF_GIF_LAYER_DEFAULT, LVSF_GIF_LAYER_FOREGROUND, LVSF_GIF_LAYER_BACKGROUND.

API Reference

Basic GIF widget (`lvsf_gif.h`)

Function	Description	Parameters / Returns
`lv_obj_t lv_sfgif_create(lv_obj_t parent)`	Create a GIF widget instance	`parent`: parent object; returns the widget pointer
`void lv_sfgif_open(lv_obj_t gif, const char gif_data, const char *src_img, lv_coord_t x, lv_coord_t y, uint32_t anim_time, uint16_t period)`	Open the GIF resource, optionally setting the cover image, position, delayed start, and frame interval at the same time	`gif_data`: GIF data; `src_img`: cover image data, may be `NULL`; `x`/`y`: position; `anim_time`: delayed-start time, 0 plays immediately; `period`: frame interval, 0 uses the default refresh period
`void lv_sfgif_resume(lv_obj_t *gif)`	Start or resume GIF playback	No return value
`void lv_sfgif_pause(lv_obj_t *gif)`	Pause GIF playback, keeping the widget object	No return value
`void lv_sfgif_close(lv_obj_t *gif)`	Close the GIF resource and release the internal GIF or cover object	No return value
`void lv_sfgif_set_zoom(lv_obj_t *gif, uint16_t zoom)`	Set the GIF zoom ratio	`zoom`: LVGL image zoom value, 256 means the original size

gif_anim extended widget (`lvsf_gif_anim.h`)

Function	Description	Parameters / Returns
`lvsf_gif_anim_t lvsf_gif_anim_init(lv_obj_t parent, const void gif_data, const void src_img, lv_coord_t x, lv_coord_t y, uint32_t duration, uint32_t delay)`	Create a GIF widget with cover-image and delayed-playback capability	`gif_data`: GIF data; `src_img`: cover image; `x`/`y`: position; `duration`: frame playback interval; `delay`: start delay; returns the widget instance
`void lvsf_gif_anim_set_zoom(lvsf_gif_anim_t *gif_anim, int width_zoom, int height_zoom)`	Set the overall zoom	The smaller of the width and height zoom values is taken for the overall scaling
`void lvsf_gif_anim_set_layer(lvsf_gif_anim_t *gif_anim, lvsf_gif_layer_t layer)`	Set the display layer	`layer`: layer enumeration
`void lvsf_gif_anim_enable_bg_color(lvsf_gif_anim_t *gif_anim, bool enable)`	Enable or disable background-color processing	`enable`: whether to enable background color
`void lvsf_gif_anim_resume(lvsf_gif_anim_t *gif_anim)`	Start or resume playback	No return value
`void lvsf_gif_anim_pause(lvsf_gif_anim_t *gif_anim)`	Pause playback	No return value
`void lvsf_gif_anim_deinit(lvsf_gif_anim_t *gif_anim)`	Destroy the widget instance and release resources	No return value

Typical Usage

Basic GIF widget:

lv_obj_t *bg_gif = lv_sfgif_create(lv_scr_act());

/* Open the GIF: no cover image, position (0,0), play immediately, frame interval 50ms */
lv_sfgif_open(bg_gif,
              APP_GET_gif(img_gif_demo),
              NULL,
              0, 0,
              0,
              50);

lv_obj_align(bg_gif, LV_ALIGN_CENTER, 0, 0);
lv_sfgif_resume(bg_gif);
lv_obj_move_background(bg_gif);

gif_anim widget (with cover image and delayed start), controlled within the page lifecycle:

static lvsf_gif_anim_t *charge_gif = NULL;

static void on_start(void)
{
    charge_gif = lvsf_gif_anim_init(parent,
                                    APP_GET_gif(img_gif_demo),
                                    APP_GET_IMG(img_gif_demo_surface),
                                    0, 0,
                                    LV_DISP_DEF_REFR_PERIOD * 3,
                                    100);
}

static void on_resume(void)  { lvsf_gif_anim_resume(charge_gif); }
static void on_pause(void)  { lvsf_gif_anim_pause(charge_gif); }
static void on_stop(void)   { lvsf_gif_anim_deinit(charge_gif); charge_gif = NULL; }

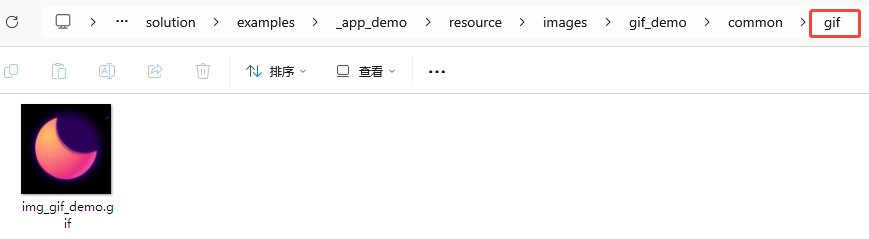

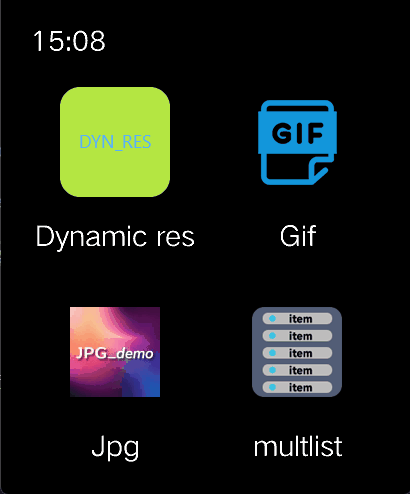

Demo

Notes

GIF images do not support transparency; if you need a transparent effect, use the APNG widget or the seqframe frame-sequence widget.
The public entry point of the basic GIF widget is lv_sfgif_*; do not depend directly on the low-level lv_gif_dec_* interfaces.
When a page is destroyed or switched, it is recommended to call lv_sfgif_close() or lvsf_gif_anim_deinit() to release resources.
