Log-Based Crash Debugging Guide

This section describes how to locate and debug crashes using log output.

1. Log Patterns During Crashes

Case 1: Notification of Remote Core Crash

Explanation: In dual-core development, when one CPU has crashed, the state of the other CPU is unknown — it may continue running for a long time, making problems difficult to discover. The current software design is: when one CPU encounters a known assert or hardfault, it notifies the other core, which then triggers its own assert upon receiving the notification, making it easier to investigate issues.

Case 2: Assert Line Number Indication

The following log indicates that an Assert occurred at line 517 of the drv_io.c file.

07-10 16:41:16:382    [572392] I/drv.lcd lcd_task: HW close
07-10 16:41:16:385    HAL assertion failed in file:drv_io.c, line number:517
07-10 16:41:16:388    Assertion failed at function:HAL_AssertFailed, line number:616 ,(0)
07-10 16:41:16:389    Previous ISR enable 1

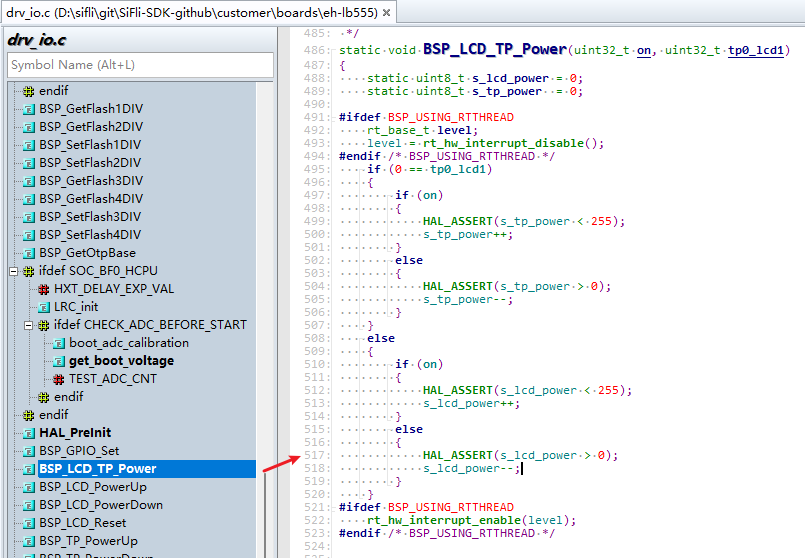

Line 517 of drv_io.c is shown in the figure below. RT_ASSERT(0); or HAL_ASSERT(s_lcd_power > 0); triggers a crash when the value inside the parentheses is 0 (False). This crash means s_lcd_power > 0 is false (s_lcd_power is not greater than 0).

alt text

Case 3: Log Shows Crash PC Pointer Information

In the following log, when a hard fault occurs, the PC pointer has already jumped to the exception interrupt HardFault_Handler or MemManage_Handler inside the rt_hw_mem_manage_exception or rt_hw_hard_fault_exception function. The PC pointer seen when connected may no longer be the original crash site. The PC and other addresses printed in the log represent the original crash site and can be used to restore the first crash scene. The example below shows a crash at PC address 0x0007ef00. You can check the corresponding *.asm file generated during compilation to see why this instruction caused a crash — typically it’s accessing unreachable memory or addresses, resulting in an exception interrupt crash.

Explanation: In the handle_exception function, the variables saved_stack_frame, saved_stack_pointer, and error_reason store the crash stack, crash stack address, and crash reason respectively when the above exception occurs. You can analyze the crash reason by comparing with the source code data structure. You can also take the PC address and search for it in the disassembly file under the build firmware directory to locate the specific assembly instruction that triggered the crash.

06-24 15:48:41:031     sp: 0x200195c8
06-24 15:48:41:037    psr: 0x80000000
06-24 15:48:41:041    r00: 0x00000000
06-24 15:48:41:042    r01: 0x2001960c
06-24 15:48:41:043    r02: 0x00000010
06-24 15:48:41:044    r03: 0x0007ef00
06-24 15:48:41:045    r04: 0x00000000
06-24 15:48:41:046    r05: 0x00000010
06-24 15:48:41:046    r06: 0x00000000
06-24 15:48:41:047    r07: 0x00000010
06-24 15:48:41:047    r08: 0x2001960c
06-24 15:48:41:048    r09: 0x2001965c
06-24 15:48:41:049    r10: 0x60000000
06-24 15:48:41:049    r11: 0x00000000
06-24 15:48:41:050    r12: 0x200001cd
06-24 15:48:41:051     lr: 0x12064845
06-24 15:48:41:052     pc: 0x0007ef00
06-24 15:48:41:052    hard fault on thread: mbox
06-24 15:48:41:053
06-24 15:48:41:053    =====================
06-24 15:48:41:054    PSP: 0x20019534, MSP: 0x2001419c
06-24 15:48:41:055    ===================

2. Common Issues

HCPU Has No Log Output

  1. menuconfig → RTOS → RT-Thread Kernel → Kernel Device Object → configure uart1 as uart1.

  2. menuconfig → RTOS → RT-Thread Components → Utilities → Enable ulog.

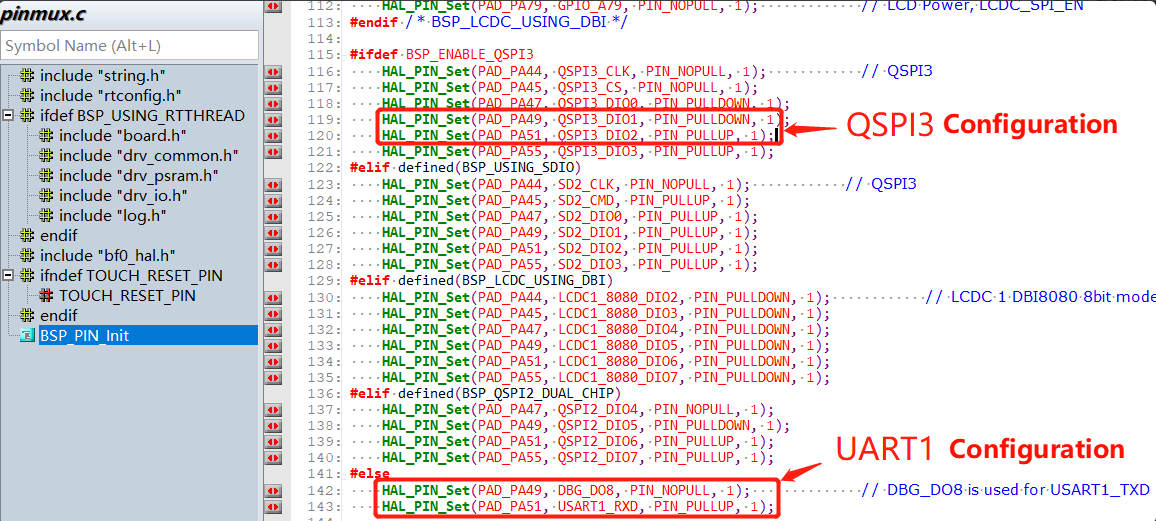

  3. Check whether the UART1 configuration in pinmux.c is correct. A common issue is that BSP_ENABLE_QSPI3 is enabled, as shown below:

TIP: In menuconfig, you can press the “?” key to open the search box for precise configuration searching.

alt text

How to Read/Write Registers in Code

Direct address read operation:

static uint32_t pinmode19;
pinmode19= *(volatile uint32_t *)0x4004304c; //Read the value of register 0x4004304c
uint32_t reg_printf= *(volatile uint32_t *)0x50016000; //Print the value of register 0x50016000
rt_kprintf("0x50016000:0x%x\n",reg_printf);

Direct address write operation:

#define _WWORD(reg,value) \
{ \
    volatile uint32_t * p_reg=(uint32_t *) reg; \
    *p_reg=value; \
}
_WWORD(0x40003050,0x200);  //Write value 0x00000200 to PA01 pinmux register

Register definition read operation:

rt_kprintf("hwp_hpsys_rcc->CFGR:0x%x\n",hwp_hpsys_rcc->CFGR);
uint32_t reg_printf= hwp_hpsys_rcc->CFGR; //Print register
rt_kprintf("hwp_hpsys_rcc->CFGR:0x%x\n",reg_printf);

Register definition write operation:

hwp_hpsys_rcc->CFGR = 0x40003050;//Direct write value
MODIFY_REG(hwp_pmuc->LPSYS_SWR, PMUC_LPSYS_SWR_PSW_RET_Msk,
			MAKE_REG_VAL(1, PMUC_LPSYS_SWR_PSW_RET_Msk, PMUC_LPSYS_SWR_PSW_RET_Pos)); //Only modify the PMUC_LPSYS_SWR_PSW_RET_Msk value to 1, leave other bits unchanged;
