LVGL v8 seqframe (seqimg)

SiFli SDK provides a picture frame-sequence playback widget on LVGL v8, with the corresponding SDK header lvsf/lv_seqimg.h (widget class name lv_seqimg). Built on top of the LVGL image object, it plays a group of pictures frame by frame in order. It supports two resource sources—memory-packed frame sequences (an lv_img_dsc_t array) and individual pictures on a file system (an array of file paths)—and supports play, pause, frame selection by index, and frame-interval setting.

Note

The lv_seqframe_* interfaces used in the solution document differ in naming from the lv_seqimg_* interfaces in the current SDK v8 header lvsf/lv_seqimg.h. The API table in this document follows the SDK header; the playback modes, prefix paths, and other feature descriptions related to lv_seqframe_* can serve as a design reference.

Features

Plays a group of pictures frame by frame in order, supporting both memory-array and file-path-array sources.
Supports play / pause control and directly selecting a frame by index for display.
Supports setting the frame playback interval.

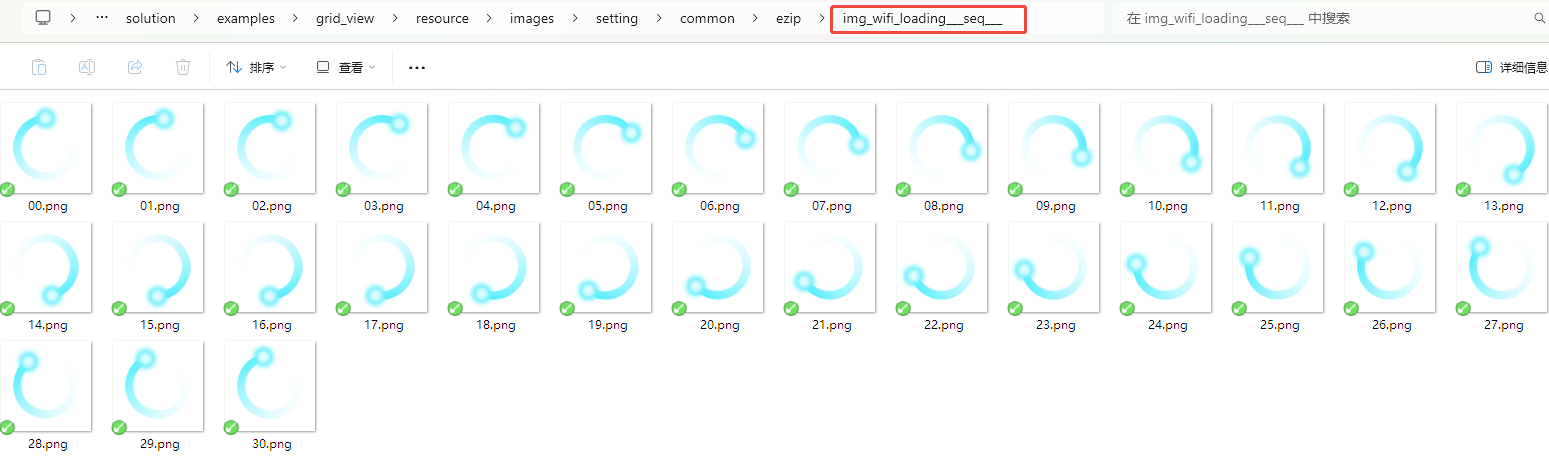

Resources can be frame sequences built into firmware, or individual pictures named by sequence number on a file system.

Use Cases

Looping frame sequences such as loading animations, WiFi-connecting animations, and charging animations.
Simple animations that play extracted video frames in order.

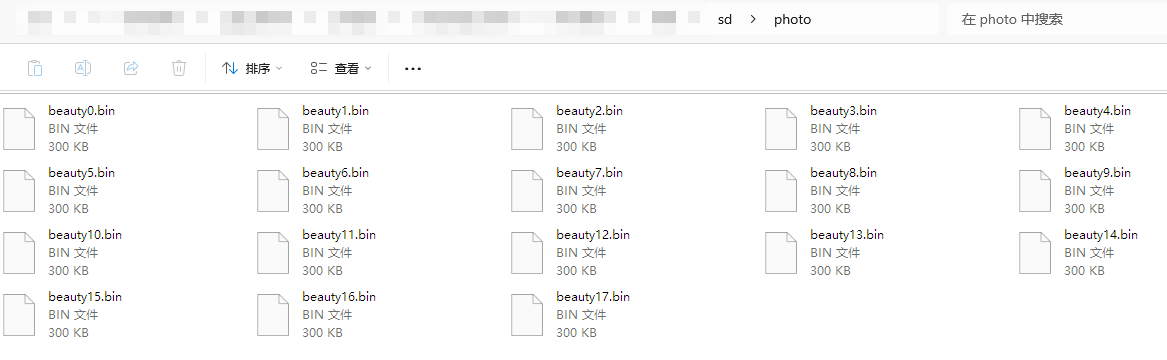

Scenarios that require frames to be stored by sequence number on a file system (such as an SD card) and loaded one by one.

Supported Boards

Any platform supported by the general LVGL v8 examples, and any board from 55x onward (such as 58x, 56x, 52x).

Configuration and Initialization

The frame-sequence widget is provided by lvsf/lv_seqimg.h and is enabled as part of the LVGL v8 build:

#include "lvsf/lv_seqimg.h"

API Reference

The interface signatures below are taken verbatim from middleware/lvgl/lvsf/lv_seqimg.h:

Function	Description	Parameters / Returns
`lv_obj_t lv_seqimg_create(lv_obj_t parent)`	Create a frame-sequence widget instance	`parent`: parent object; returns the widget pointer
`void lv_seqimg_src_array(lv_obj_t obj, const lv_img_dsc_t *dsc_array, uint16_t size)`	Bind an in-memory array of frame descriptors	`dsc_array`: array of `lv_img_dsc_t` pointers; `size`: number of frames
`void lv_seqimg_file_array(lv_obj_t obj, const char *file_path_array, uint16_t size)`	Bind an array of image paths on the file system	`file_path_array`: array of image file paths; `size`: number of frames
`void lv_seqimg_select(lv_obj_t *obj, uint16_t index)`	Jump to and display the frame at the given index	`index`: frame index (starting from 0)
`void lv_seqimg_play(lv_obj_t *obj)`	Start playing the frame sequence	No return value
`void lv_seqimg_pause(lv_obj_t *obj)`	Pause playback	No return value
`void lv_seqimg_set_period(lv_obj_t *obj, uint32_t period)`	Set the frame playback interval	`period`: frame interval (ms)

Typical Usage

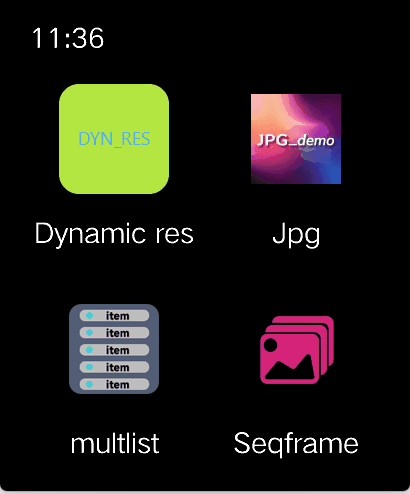

Play a frame sequence built into firmware:

/* dsc_array is an array of lv_img_dsc_t pointers in playback order, count is the number of frames */
lv_obj_t *seqframe = lv_seqimg_create(lv_scr_act());
lv_seqimg_src_array(seqframe, dsc_array, count);
lv_seqimg_set_period(seqframe, 50);   /* frame interval 50ms */
lv_seqimg_select(seqframe, 0);        /* start from frame 0 */
lv_obj_align(seqframe, LV_ALIGN_CENTER, 0, 0);
lv_seqimg_play(seqframe);

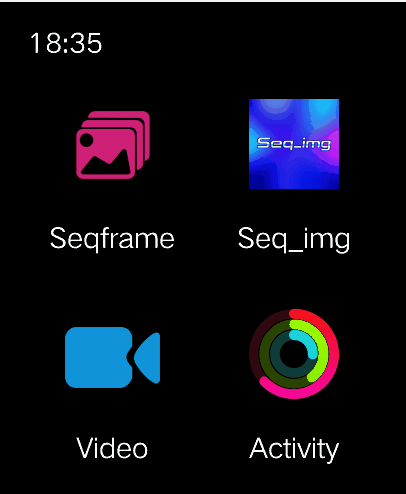

Play individual pictures named by sequence number on the file system:

const char *paths[] = {"/sd/photo/beauty0.bin",
                       "/sd/photo/beauty1.bin",
                       "/sd/photo/beauty2.bin"};

lv_obj_t *seq = lv_seqimg_create(lv_scr_act());
lv_seqimg_file_array(seq, paths, 3);
lv_seqimg_set_period(seq, 500);
lv_seqimg_select(seq, 0);
lv_seqimg_play(seq);
